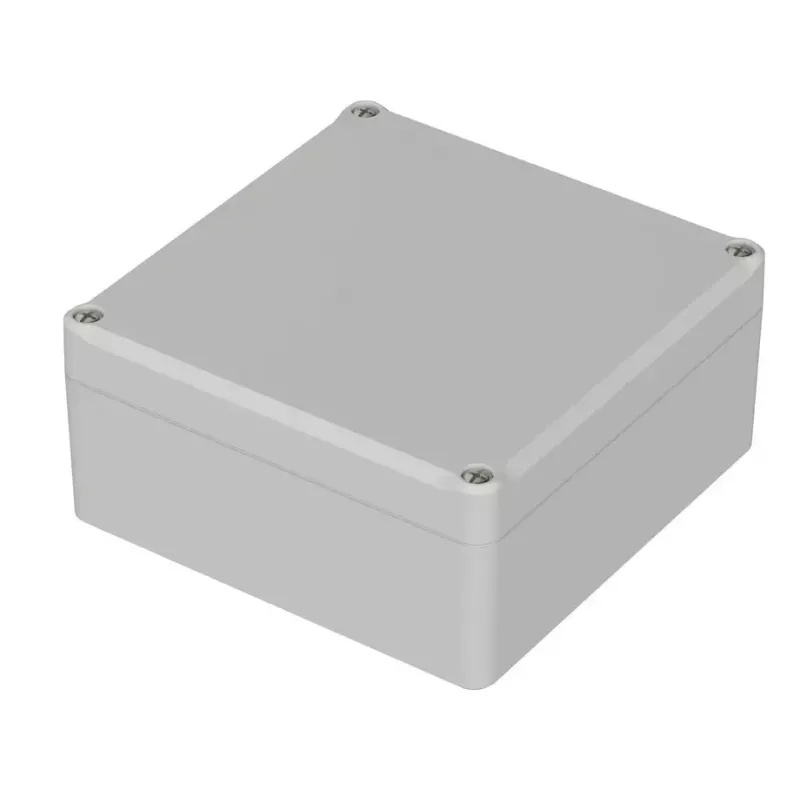

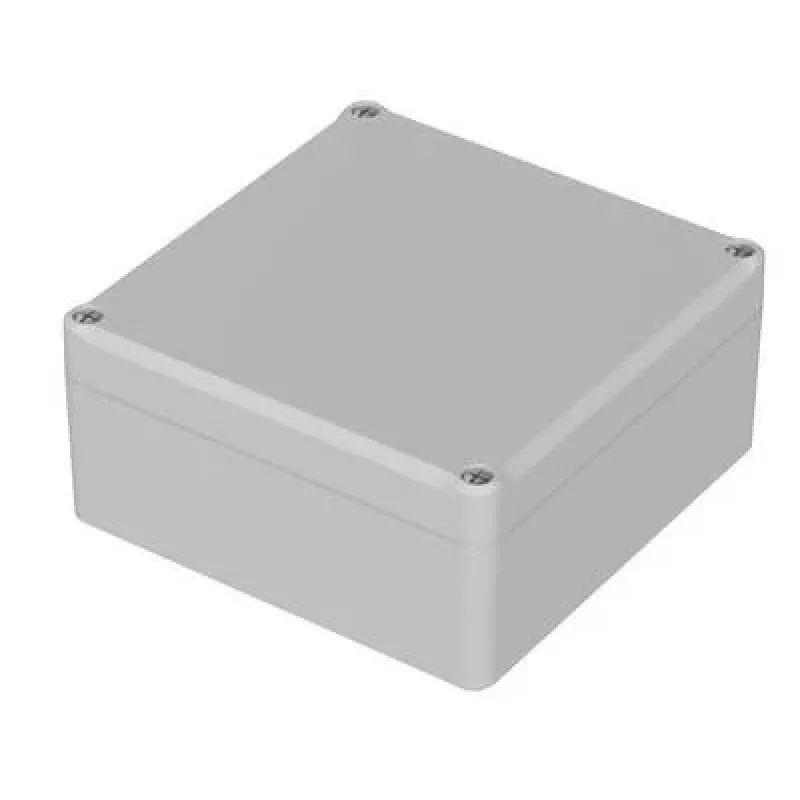

Bopla universele behuizing 122 x 120 x 57 polycarbonaat lichtgrijs (RAL 7035) EM 217 62217000

Designed for electrical and electronic installations in industrial and outdoor settings, this Bopla EM 217 enclosure provides a robust housing for sensitive components. Its compact footprint and light grey finish suit control panels, junction boxes, and instrumentation where protection and accessibility matter.

Key specifications

• Material: Polycarbonate (PC)
• Colour: Light Grey (RAL 7035)
• External dimensions: 122 x 120 x 57 mm
• Ingress protection: IP65
• Impact resistance: IK08
• Operating temperature: -40 °C to +100 °C
• Flammability rating: UL 94 V-2
• Lid type: Screw-on
• Lid screw material: Polyamide (PA)
• Gasket material: Polyurethane (PU) foam
• Mounting: Wall mounting via integrated screw channels
• Chemical resistance: Good against oils, greases, alcohols, weak acids, and bases
• UV stability: Good
• Halogen-free: Yes
• RoHS compliant: Yes

Why choose it

The polycarbonate body combines impact strength with light weight, while the IP65 rating ensures protection against dust and water jets. The light grey RAL 7035 colour blends into control cabinets and machinery, and the screw-on lid with PU foam gasket maintains a reliable seal.

Ideal use cases

• Industrial control panels
• Outdoor electrical junction boxes
• Instrumentation housings
• Automation and sensor enclosures

Good to know

The enclosure is halogen-free and RoHS compliant. It withstands a wide temperature range from -40 °C to +100 °C, making it suitable for harsh environments. Wall mounting is simplified by integrated screw channels.
