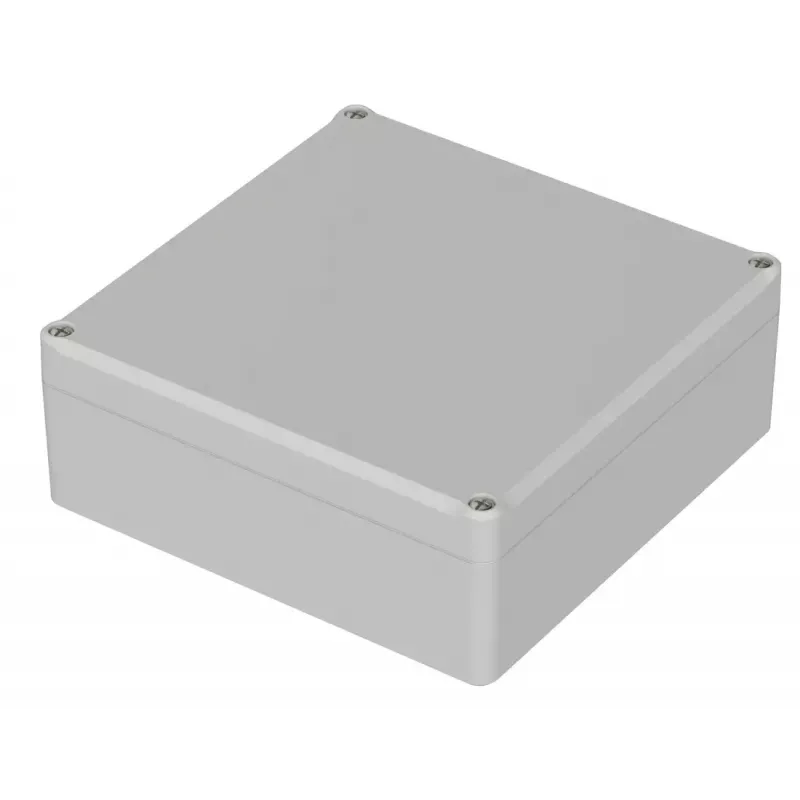

Bopla universele behuizing 150 x 150 x 57 mm polycarbonaat lichtgrijs (RAL 7035) EM 218, 1 stk. 62218300

Universal enclosure made of polycarbonate in light grey (RAL 7035) with external dimensions of 150 x 150 x 57 mm, offering robust protection for electronic components in industrial and outdoor applications.

Advantages

Polycarbonate material provides high impact resistance (IK08) and a wide operating temperature range from -40°C to +80°C. The enclosure is UV-resistant and halogen-free, with good chemical resistance against oils, greases, alcohols, and weak acids/bases. The screw-on lid with polyurethane gasket ensures a reliable seal. Internal mounting bosses allow installation of DIN rails or mounting plates.

Suitable for

• Industrial control units and automation systems
• Outdoor electrical installations requiring UV and weather resistance
• Harsh environments where impact and chemical resistance are needed

Key specifications

• Material: Polycarbonate
• External dimensions (L x W x H): 150 x 150 x 57 mm
• Colour: Light grey (RAL 7035)
• Protection class: IP65
• Impact resistance: IK08
• Temperature range: -40°C to +80°C
• Flammability rating: UL 94 V-0
• Lid fastening: Screw-on lid
• Gasket material: Polyurethane (PUR)
• Mounting options: Internal mounting bosses for DIN rails or mounting plates
• UV resistance: Yes
• Chemical resistance: Good against oils, greases, alcohols, weak acids/bases
• Halogen-free: Yes
• RoHS compliant: Yes
• Units per package: 1

Recommendations

Ideal for protecting sensitive electronics in demanding industrial settings, offering a balance of durability, chemical resistance, and ease of installation.
