Bopla universele behuizing 300 x 160 x 120 mm polycarbonaat lichtgrijs (RAL 7035) EM 247 62247300

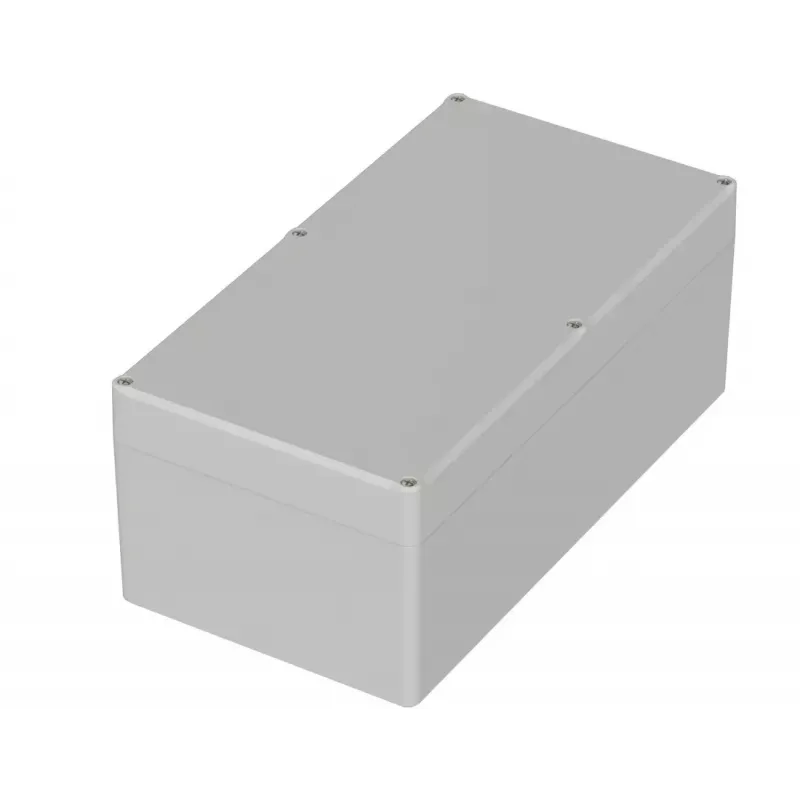

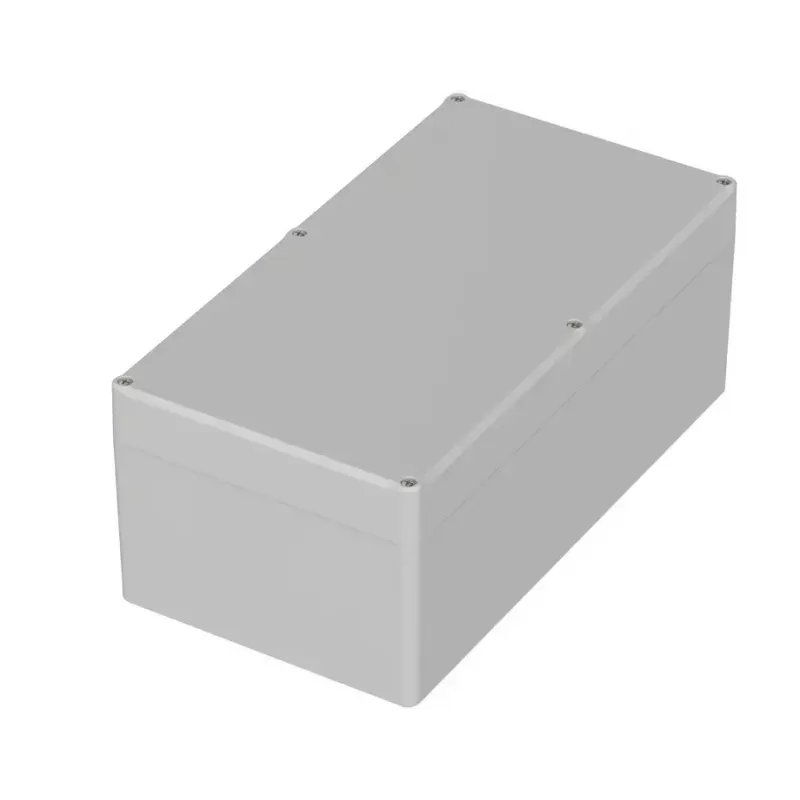

With an impact resistance of IK08 and a UL 94 V-0 flammability rating, this polycarbonate enclosure is built to protect sensitive electronics in demanding industrial environments. The Bopla EM 247 universal enclosure measures 300 x 160 x 120 mm and is molded from light grey polycarbonate (RAL 7035), offering a robust housing for a wide range of electrical and electronic components.

Overview

The Bopla EM 247 is a universal enclosure designed for industrial, electrical, and electronic component protection. Its solid, opaque lid is secured with stainless steel screws and includes a polyurethane foam gasket to maintain a reliable seal. The enclosure provides integrated mounting bosses for PCBs or mounting plates, simplifying installation.

What stands out

• High impact resistance (IK08) and excellent flame retardancy (UL 94 V-0)
• Durable polycarbonate construction with good UV and chemical resistance
• Wide operating temperature range from -40°C to +80°C
• Halogen-free material for safer disposal and reduced toxic emissions
• Integrated mounting bosses for easy component installation

Technical details

• External dimensions: 300 mm (L) x 160 mm (W) x 120 mm (H)
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• Protection class: IP65
• Impact resistance: IK08
• Flammability rating: UL 94 V-0
• Operating temperature: -40°C to +80°C
• Lid type: Opaque, solid
• Lid fastening: Stainless steel screws
• Gasket material: Polyurethane (PU) foam
• Internal mounting: Integrated mounting bosses for PCBs/mounting plates
• UV resistance: Good
• Halogen-free: Yes
• Chemical resistance: Good against oils, greases, alcohols, weak acids/alkalis

Our verdict

A rugged and versatile enclosure that combines high protection ratings with easy assembly, making it a solid choice for industrial electronics projects.
