Bopla universele behuizing 52 x 50 x 37 mm polycarbonaat lichtgrijs (RAL 7035) EM 205 62205000

With an IP65 protection rating, this Bopla EM 205 enclosure safeguards electronics against dust and water jets, making it suitable for demanding industrial environments.

Overview

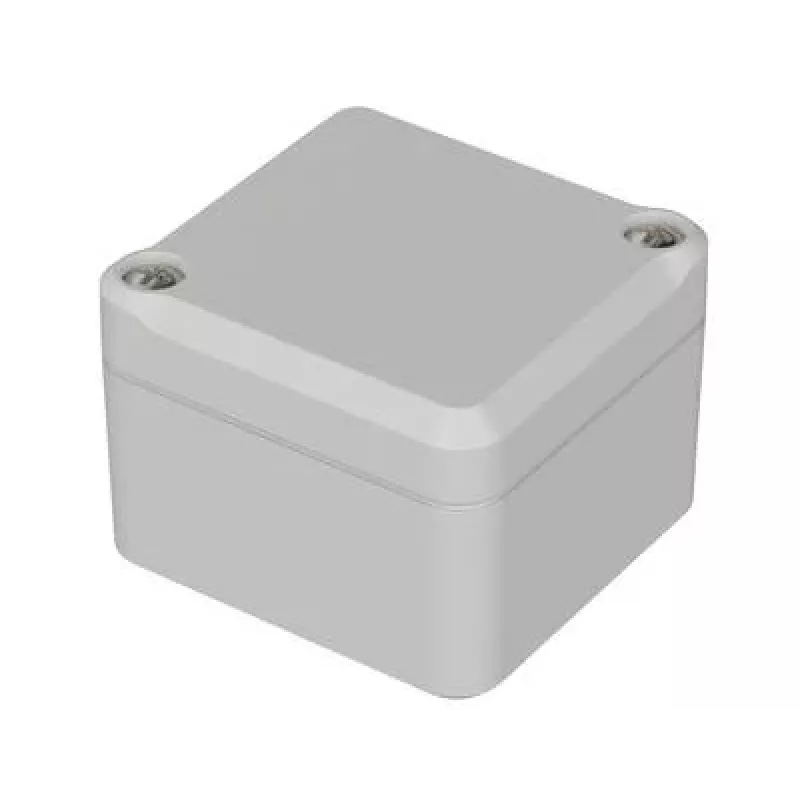

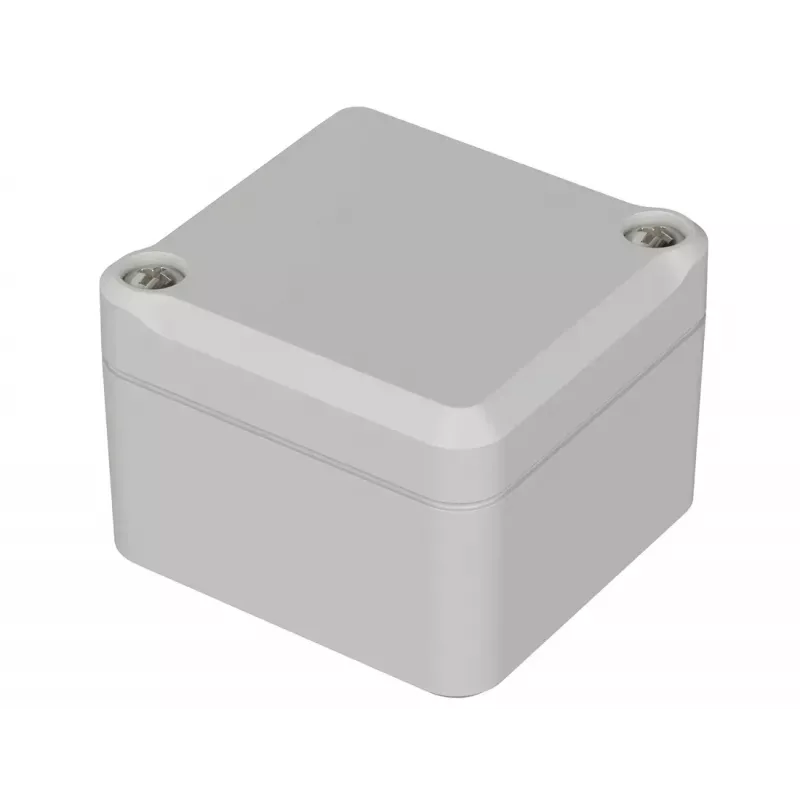

The Bopla Universal Enclosure EM 205 is a compact housing designed for electronic and electrical installations. Its dimensions of 52 x 50 x 37 mm provide ample space for PCBs and small components. Constructed from polycarbonate, it offers high impact resistance (IK07) and UV stability, ensuring durability in outdoor and harsh conditions.

What stands out

• Light grey (RAL 7035) colour blends seamlessly into industrial settings.
• Screw-on lid with stainless steel M3 screws for secure closure and easy access.
• Polyurethane gasket ensures a reliable seal, maintaining the IP65 rating.
• Integrated bosses inside facilitate straightforward mounting of PCBs or mounting plates.
• Flammability rating UL 94 V-0 adds an extra layer of safety.

Technical details

• Material: Polycarbonate (PC)
• Colour: Light Grey (RAL 7035)
• External dimensions (L x W x H): 52 x 50 x 37 mm
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-0
• Temperature range: -40°C to +80°C
• Gasket material: Polyurethane (PUR)
• Lid screws: Stainless steel M3
• UV resistant: Yes
• Halogen-free: Yes
• RoHS compliant: Yes

Our verdict

A robust and versatile enclosure that delivers reliable protection for electronics in challenging environments, backed by Bopla's quality engineering.
