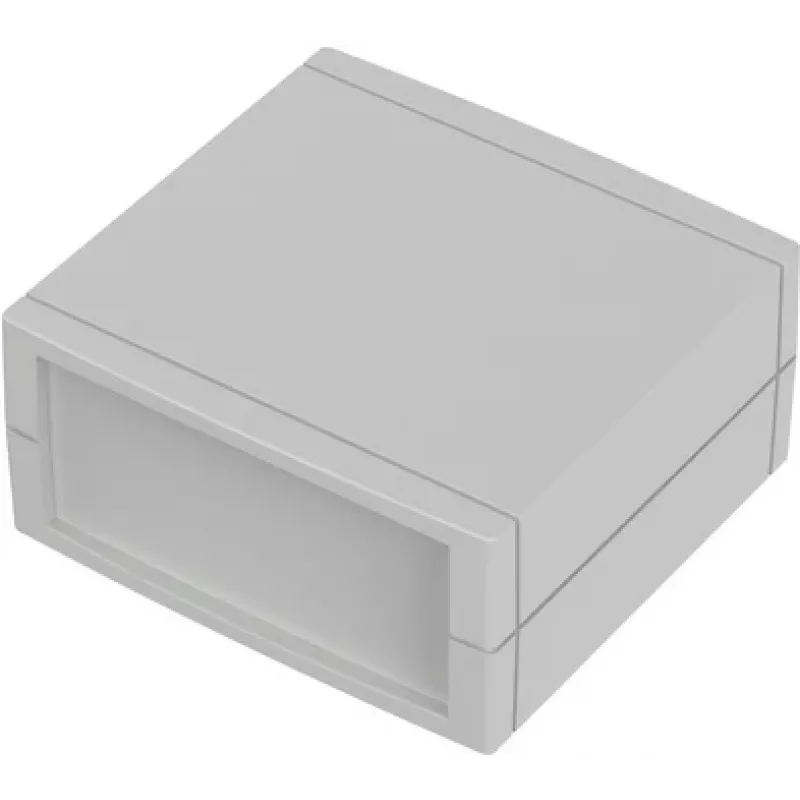

Bopla universele behuizing 85 x 81 x 40 mm polystyreen lichtgrijs RAL 7035 U 85 26085000

Electronics developers and system integrators use the Bopla U 85 universal enclosure to house control boards, measurement modules and small interface electronics. The 85 x 81 x 40 mm housing is made of light grey polystyrene (RAL 7035) and offers a clean, functional look for desktop or surface-mounted applications.

Key specifications

• External dimensions: 85 mm length, 81 mm width, 40 mm height
• Material: Polystyrene (PS)
• Colour: Light grey, RAL 7035
• Ingress protection: IP40
• Lid fastening: Screwed
• Internal mounting: Integrated PCB mounting bosses
• Operating temperature range: -20 to +80 °C
• Series: Bopla U-Series
• Package quantity: 1 piece

Why choose it

The Bopla U 85 provides a reliable, cost-effective housing for general-purpose electronics. Its polystyrene construction keeps weight low while offering adequate mechanical protection for indoor use. The screwed lid ensures secure closure, and integrated PCB bosses simplify assembly.

Ideal use cases

• Control systems and interface modules
• Measurement technology and sensor housings
• General purpose electronics enclosures for desktop or surface mounting

Good to know

The enclosure is supplied as a single piece. It is suitable for applications where protection against solid objects larger than 1 mm is required (IP40). The light grey RAL 7035 colour blends well in industrial and laboratory environments.
