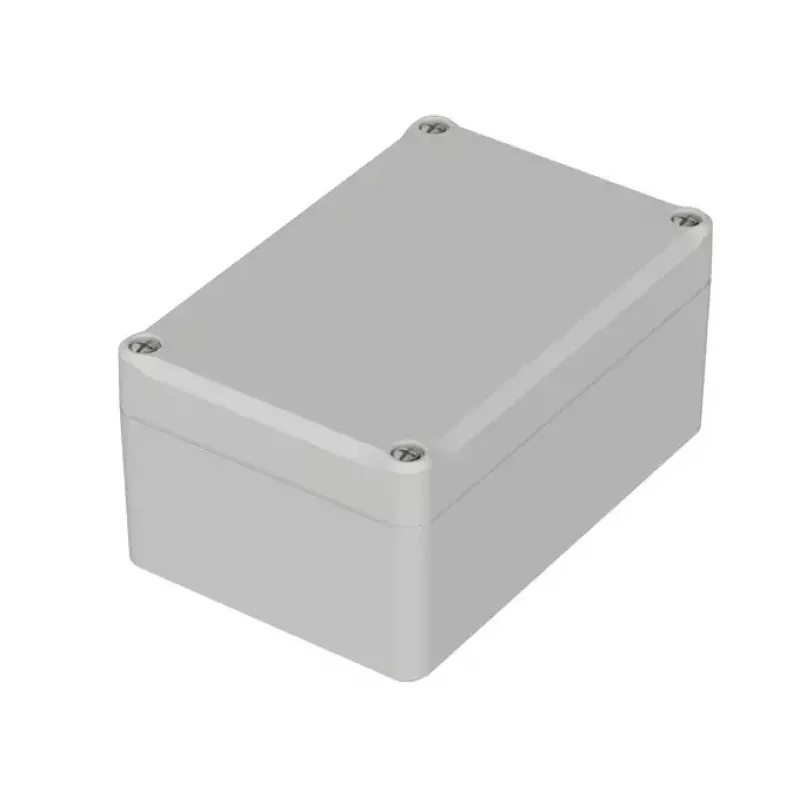

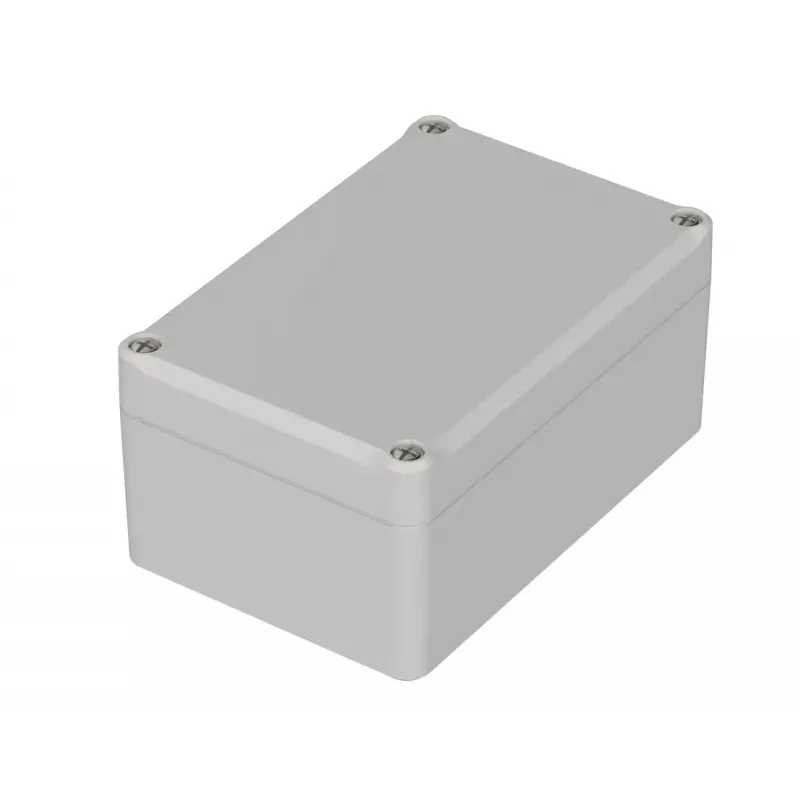

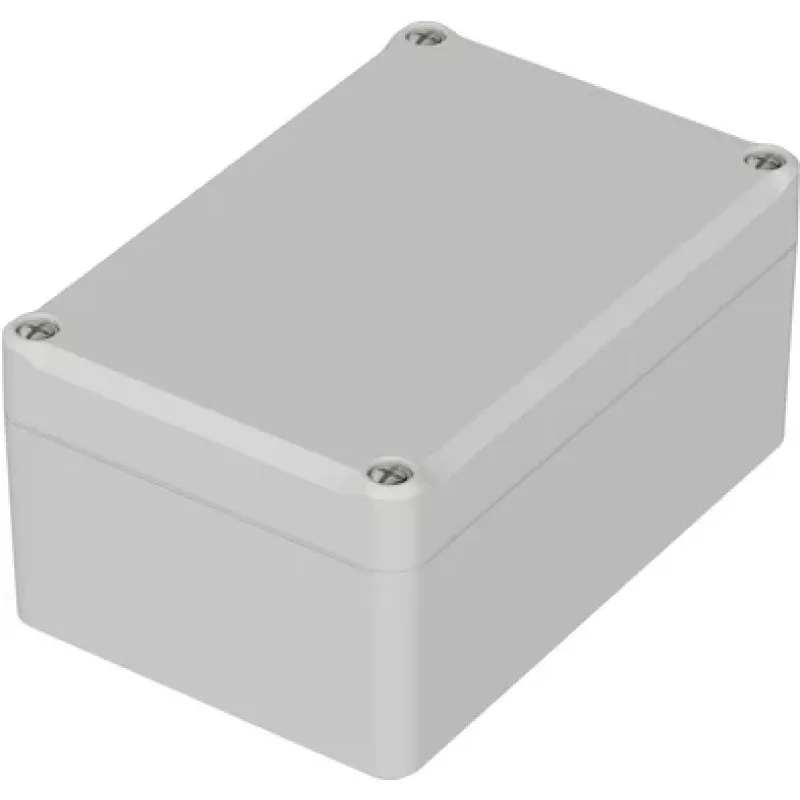

Bopla universele behuizing EM 215, polycarbonaat, lichtgrijs RAL 7035, 120 x 80 x 57 mm, IP65, IK07 62215000

With an IP65 protection rating and IK07 impact resistance, this Bopla EM 215 universal enclosure keeps electrical and electronic components safe in demanding industrial environments. The light grey (RAL 7035) polycarbonate housing measures 120 x 80 x 57 mm and offers a robust, halogen-free solution for control and junction box applications.

Overview

The Bopla EM 215 is a solid-lid enclosure crafted from polycarbonate (PC), known for its excellent mechanical strength and resistance to chemicals. The smooth surface finish and light grey colour make it suitable for a wide range of installations. The lid is secured with stainless steel screws, and a polyurethane (PUR) gasket ensures a reliable seal against dust and moisture.

What stands out

• IP65-rated protection against dust and water jets
• IK07 impact resistance for durability
• Halogen-free polycarbonate material
• Integrated bosses for mounting plates or PCBs
• Wide operating temperature range from -40°C to +100°C

Technical details

• External dimensions (L x W x H): 120 x 80 x 57 mm
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• Lid fastening: Stainless steel screws
• Gasket material: Polyurethane (PUR)
• Flammability rating: UL 94 V-2
• Mounting type: Wall mounting via mounting holes
• Units per pack: 1

Our verdict

The Bopla EM 215 is a dependable choice for housing sensitive electronics in harsh conditions. Its combination of IP65 sealing, impact resistance, and halogen-free construction makes it a solid investment for industrial control and electrical applications.
