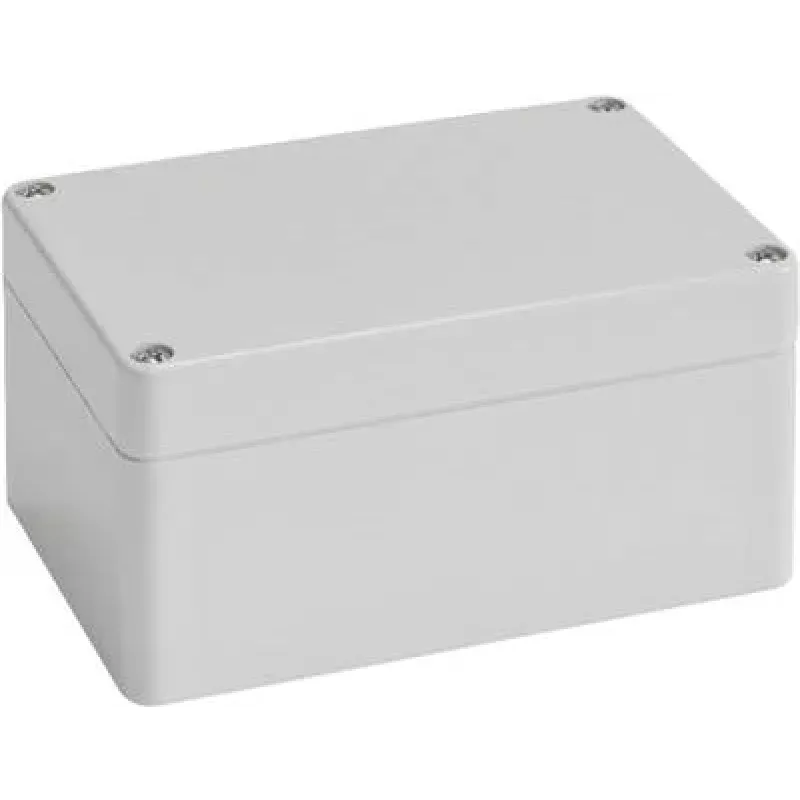

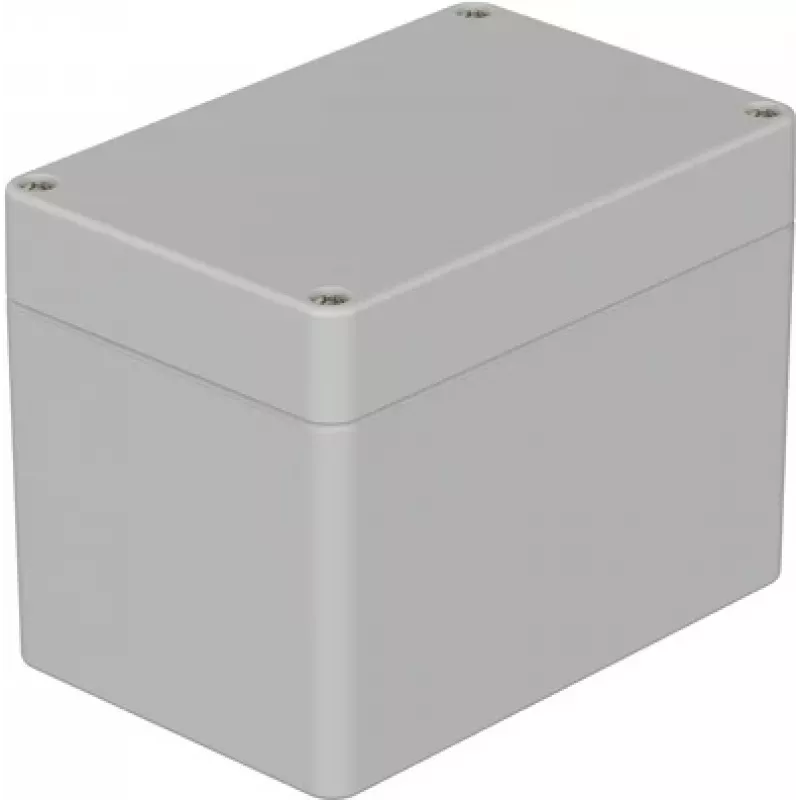

BOPLA universele behuizing polycarbonaat lichtgrijs 120 x 80 x 90 M 230 (02230000)

For control panel builders and machine integrators needing a robust housing for electronics in industrial environments, the BOPLA Universal Enclosure offers a spacious interior and a durable polycarbonate shell. Its light grey finish and smooth walls allow for easy machining of cutouts and mounting holes.

Key specifications

• External dimensions: 120 x 80 x 90 mm (L x W x H)
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• Protection class: IP65
• Impact resistance: IK07
• Temperature range: -40°C to +80°C
• Flammability rating: UL 94 V-2
• Lid fastening: 4x stainless steel screws
• Gasket material: Polyurethane (PUR)
• Mounting options: Wall mounting, internal mounting bosses
• UV resistant and halogen-free

Why choose it

The polycarbonate body provides high impact strength and good chemical resistance, making it suitable for demanding industrial settings. Its IP65 rating ensures protection against dust and water jets, while the screw-on lid with a PUR gasket maintains a reliable seal.

Ideal use cases

• Housing for industrial control electronics
• Junction boxes for automation systems
• Protective enclosures for sensors and measurement devices
• Custom enclosures for electrical installations

Good to know

The enclosure's smooth walls simplify drilling and milling, allowing for custom cable entries and connector cutouts. Internal mounting bosses provide convenient points for securing PCBs or DIN rails. The light grey colour is a standard choice for industrial equipment, offering a clean and professional appearance.
