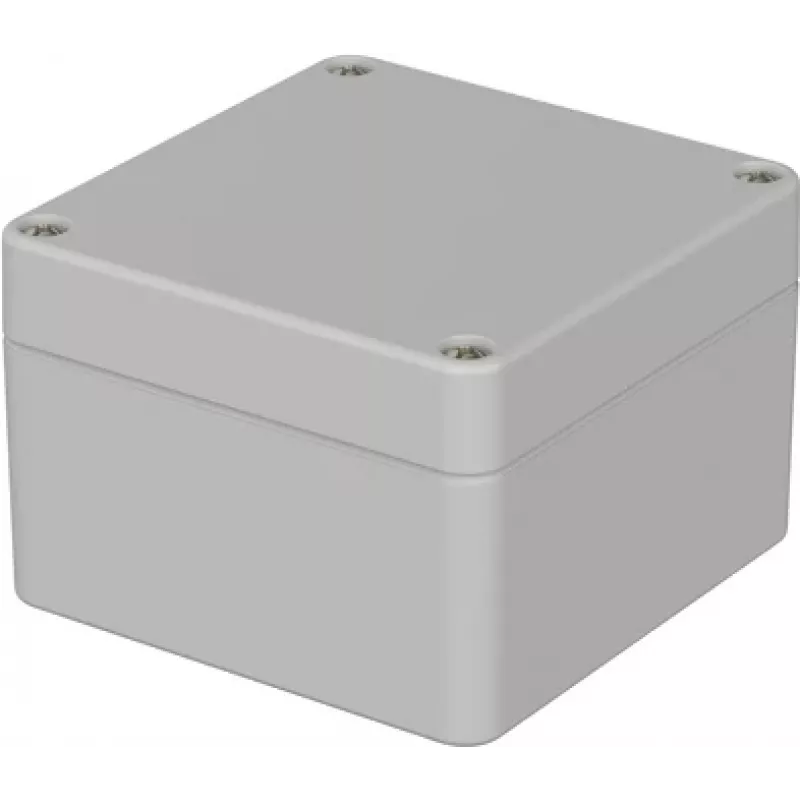

BOPLA universele behuizing polycarbonaat lichtgrijs 82 x 80 x 55 mm M 210 02210000

The BOPLA M 210 universal enclosure stands out with its compact, robust polycarbonate construction and light grey finish, offering a dependable housing for electronics in demanding environments. Its dimensions of 82 x 80 x 55 mm provide ample internal space while maintaining a small footprint suitable for wall or panel mounting.

Highlights

• Polycarbonate (PC) body in light grey (RAL 7035)
• External dimensions: 82 x 80 x 55 mm
• Integrated mounting bosses for PCBs or mounting plates
• Lid secured with 4 stainless steel screws
• Polyurethane (PUR) gasket for reliable sealing

In daily use

This enclosure is well-suited for applications requiring a balance of durability and ease of assembly. The polycarbonate material provides good impact resistance and UV stability, while the smooth surface allows for clean integration into equipment. The included gasket and screw-fastened lid ensure a secure closure, making it a practical choice for industrial controls, sensor housings, and junction boxes.

Full specifications

• Enclosure type: Universal enclosure
• Material: Polycarbonate (PC)
• Colour: Light grey
• External dimensions (L x W x H): 82 x 80 x 55 mm
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-2
• Operating temperature range: -40 °C to +80 °C
• Lid fastening: 4x stainless steel screws
• Gasket material: Polyurethane (PUR)
• Mounting type: Wall mounting, panel mounting
• Internal mounting: Integrated mounting bosses for PCBs or mounting plates
• Surface finish: Smooth
• Transparency: Opaque
• RoHS compliant: Yes
• Halogen-free: Yes
• UV resistance: Good
• Chemical resistance: Good against many oils, greases, alcohols, weak acids

Final note

The BOPLA M 210 offers a reliable, well-engineered enclosure solution with a proven material and sealing system, ready for integration into your next project.
