Bosch WNA13401PL was-droogcombinatie 8 kg / 5 kg 1400 t/min wit

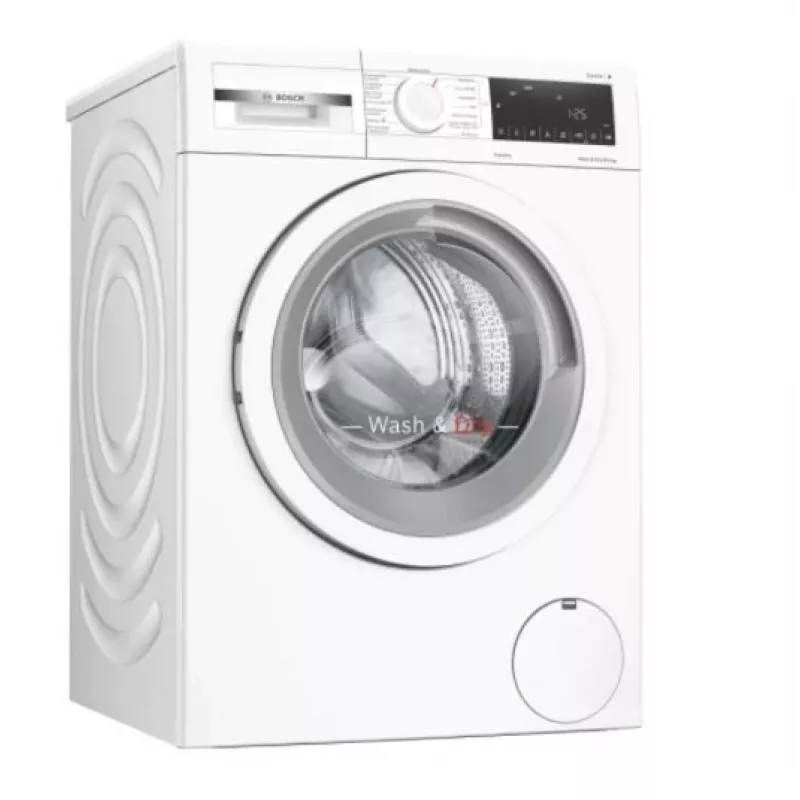

Combined washing-dryer Bosch WNA13401PL provides an 8 kg washing capacity and a 5 kg wash-and-dry capacity in a built-in front-load design. The appliance features a stainless-steel drum, LED display with rotary and touch controls, a left-hinged viewing door and 14 program options. Energy efficiency class for combined washing and drying is E and the unit is rated noise emission class A. Water consumption is 41 L for washing and 70 L for a wash-and-dry cycle.

Advantages

The Bosch WNA13401PL combines washing and drying functions in a single built-in unit, saving space while offering separate rated capacities for washing and for combined wash-and-dry cycles. A stainless-steel drum and a left-hinged viewing door support easy loading and monitoring. LED display with rotary and touch controls provides clear program selection and status indication. The appliance operates at up to 1400 RPM spin speed and includes 14 different programs to accommodate various textiles.

Suitable for

• Households needing both washing and drying in limited space
• Built-in kitchen or laundry installations
• Mixed laundry loads including cotton and synthetics
• Users who prefer a front-load machine with a viewing window

Key specifications

• Rated washing capacity: 8 kg
• Rated washing & drying capacity: 5 kg
• Maximum spin speed: 1400 RPM
• Energy efficiency class (washing & drying): E
• Spin-drying class: B
• Noise emission class: A; spin noise level: 70 dB
• Water consumption: 41 L (washing); 70 L (washing & drying)
• Cycle time: 225 min (washing); 440 min (washing & drying)
• Display type: LED; control: rotary and touch

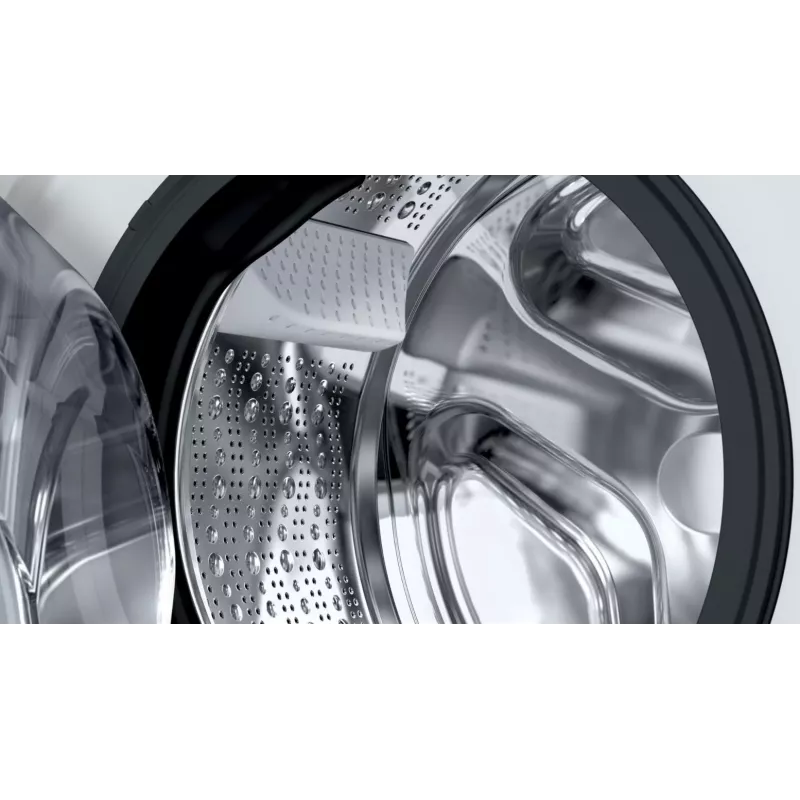

• Drum material: stainless steel; loading: front-load; door hinge: left

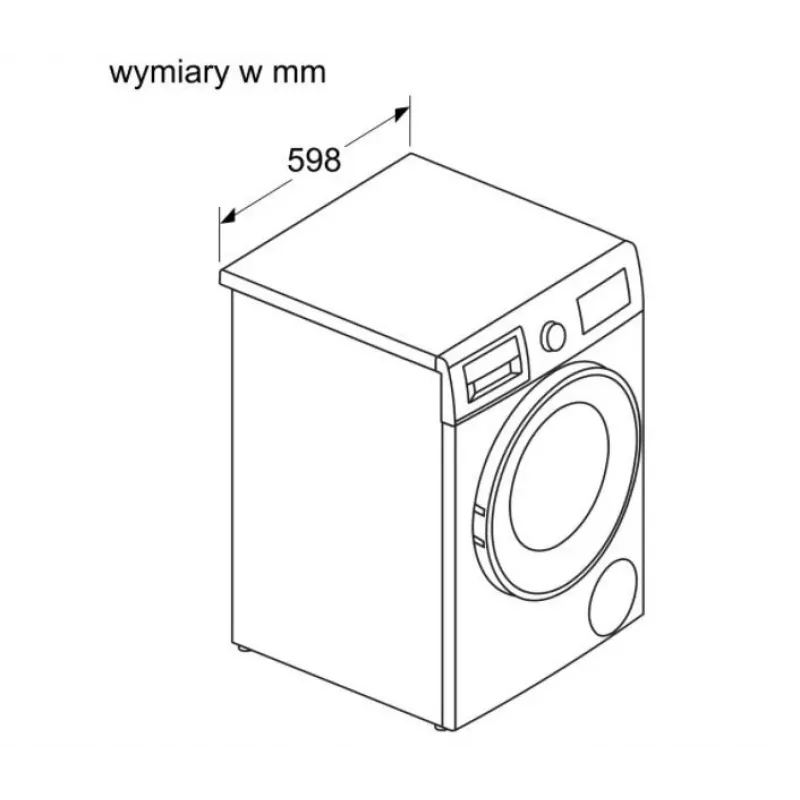

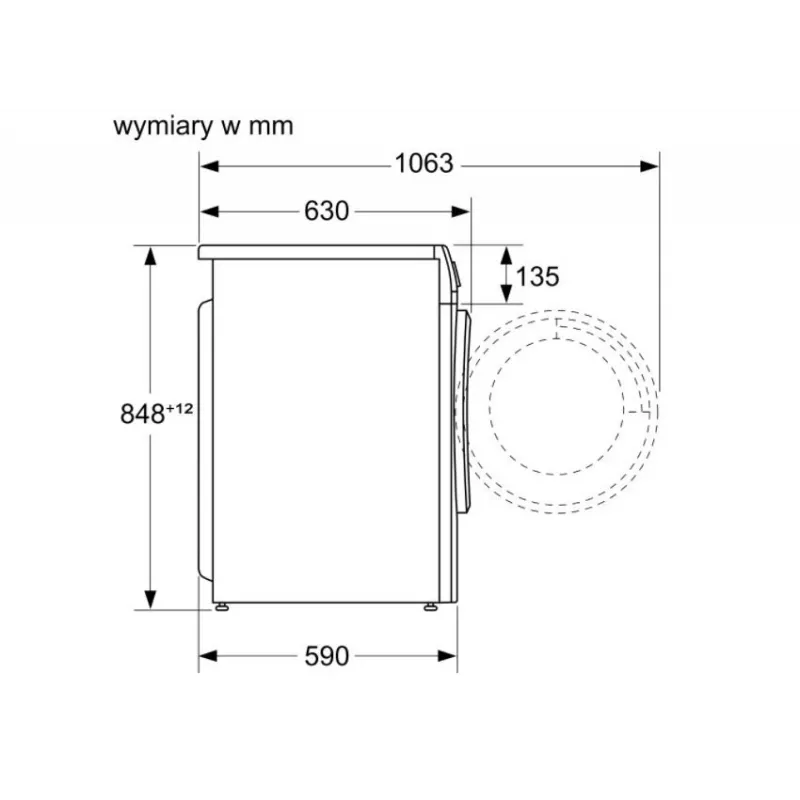

• Dimensions (approx.): width 598 mm × height 840 mm × depth 590 mm
• AC input voltage: 220–240 V
• Number of programs: 14

How to use

Install the Bosch WNA13401PL as a built-in front-load appliance according to the manufacturer’s installation instructions, including connection to a grounded electrical outlet. Load laundry into the stainless-steel drum, select an appropriate program and temperature using the rotary and touch controls on the LED display, set a delayed start if required, and start the cycle. For combined wash-and-dry cycles, ensure the load does not exceed the rated wash-and-dry capacity of 5 kg. After the cycle ends, open the left-hinged door and remove items promptly to reduce creasing.

Recommendations

Use appropriate detergent doses for machine type and load size, separate heavily soiled items from delicate fabrics, and avoid overloading to maintain washing and drying performance. Always connect the appliance to a properly grounded outlet as required for safe operation.
