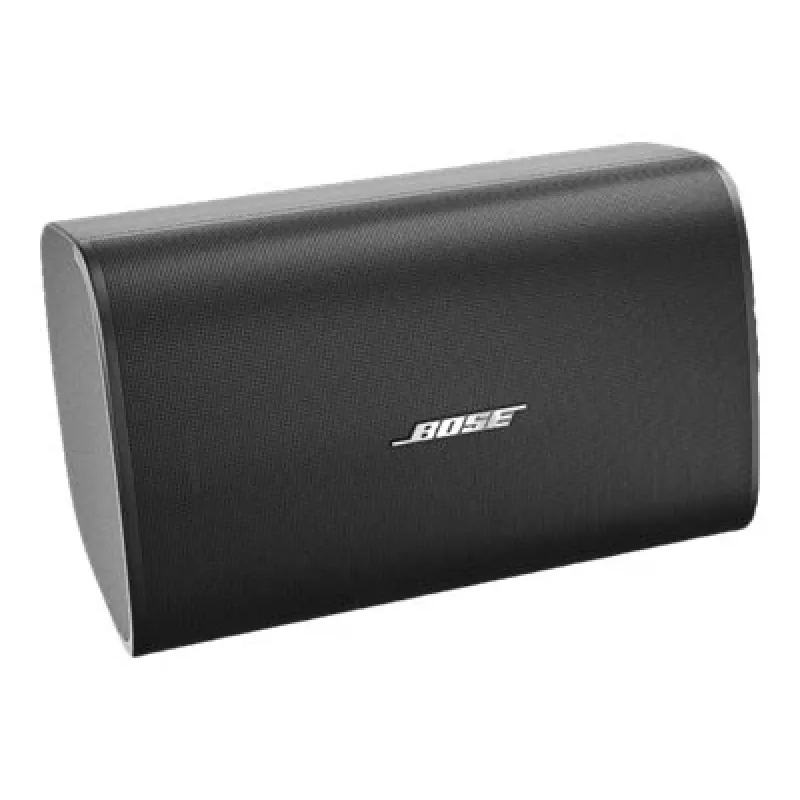

Bose DesignMax DM10S-SUB subwoofer 250 watt 10 inch zwart

The Bose DesignMax DM10S-SUB is a high-performance surface-mount subwoofer designed for commercial audio installations. With a 10-inch (254 mm) driver and 250 W RMS power handling, it delivers deep, impactful bass for a wide range of applications. The low-impedance design (8 Ohms) ensures compatibility with professional amplifiers, while the sleek black enclosure (RAL 9005) blends seamlessly into any environment.

Advantages

Exceptional low-frequency extension down to 40 Hz (-3 dB) and a maximum SPL of 118 dB peak ensure powerful, clear bass. The omnidirectional dispersion below 200 Hz provides consistent coverage, and the included U-bracket simplifies surface-mount installation. The engineered plastic enclosure with steel grille offers durability and a professional appearance.

Suitable for

• Commercial audio systems in retail, hospitality, and corporate spaces
• Background music and paging systems requiring extended bass response
• Integration with Bose DesignMax full-range speakers for a complete sound solution

Key specifications

• Speaker Type: Surface-Mount Subwoofer
• Driver Size: 10 inch (254 mm)
• Frequency Response (-3 dB): 40 Hz - 125 Hz
• Power Handling (RMS): 250 W
• Peak Power Handling: 1000 W
• Nominal Impedance: 8 Ohms
• Sensitivity: 88 dB SPL/1W @ 1m
• Maximum SPL (Peak @ 1m): 118 dB
• Recommended Amplifier Power: 250 W - 500 W (8 Ohms)
• Enclosure Material: Engineered Plastic with Steel Grille
• Colour: Black (RAL 9005)
• Input Connectors: Euroblock 6-pin
• Mounting Type: Surface-Mount (U-bracket included)
• Environmental Rating: Indoor use only

Recommendations

For optimal performance, pair the DM10S-SUB with a compatible Bose amplifier or any professional amplifier rated for 8 Ohm loads. Use the included U-bracket for secure wall or ceiling mounting. This subwoofer is designed for indoor use only.
