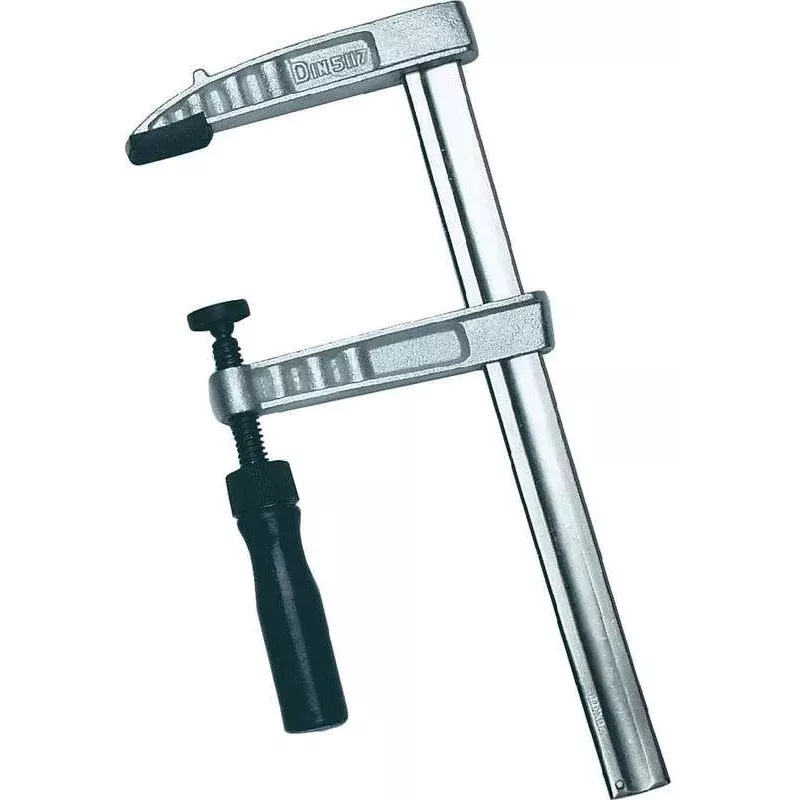

Brüder Mannesmann industriële lijmtang DIN 5117 (90401)

This industrial screw clamp follows DIN 5117, offering a clamping range of 100 mm and a throat depth of 50 mm. Its malleable cast iron body and steel spindle with trapezoidal thread provide high clamping force for demanding woodworking, metalworking, and assembly tasks.

Highlights

• DIN 5117 compliant industrial G-clamp
• Clamping range: 100 mm, throat depth: 50 mm
• Malleable cast iron body with powder-coated blue finish
• Steel spindle with trapezoidal thread and T-handle
• Swivel pressure pad for secure, non-marring grip

In daily use

The T-handle allows high torque for firm clamping, while the swivel pressure pad adapts to workpiece surfaces. Flat, parallel jaws ensure even pressure distribution, making it suitable for repetitive industrial applications.

Full specifications

• Standard: DIN 5117
• Clamping range: 100 mm
• Throat depth: 50 mm
• Body material: Malleable cast iron
• Spindle material: Steel
• Handle type: T-handle
• Jaw type: Flat, parallel jaws
• Spindle thread: Trapezoidal
• Spindle end: Swivel pressure pad
• Surface finish: Powder-coated blue
• Application: Woodworking, metalworking, general assembly

Final note

Built for industrial strength and precision, this clamp delivers reliable performance in professional workshops.
