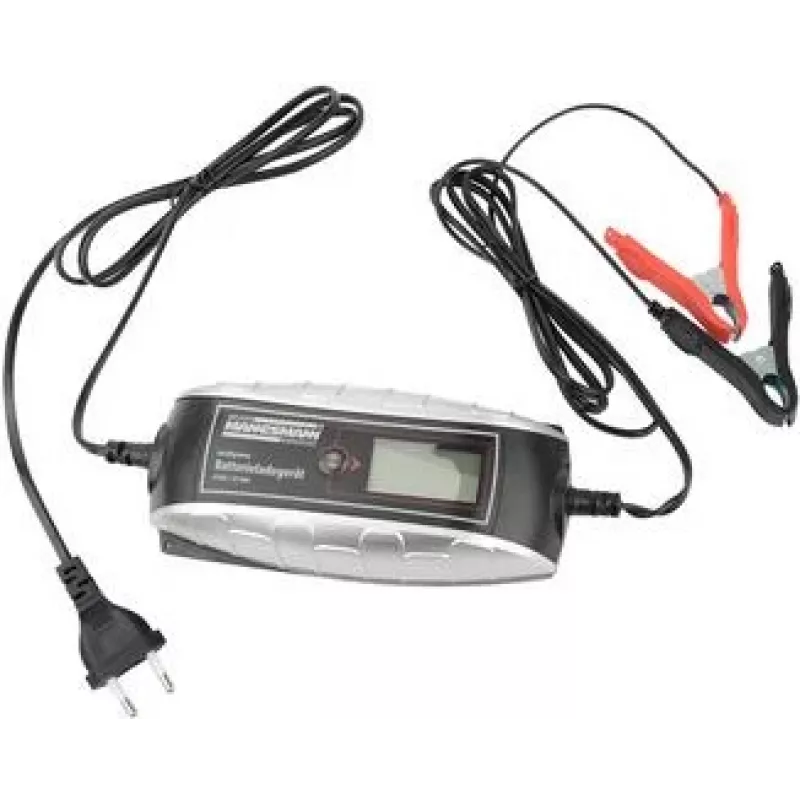

Brüder Mannesmann M12715 6V/12V 0,8A automatische acculader voor lood-zuur-accu's

With a maximum charging current of 0.8 A and support for both 6 V and 12 V lead-acid batteries, the Brüder Mannesmann M12715 delivers a controlled three-stage charge for WET, MF, GEL, and AGM batteries from 1.2 Ah to 14 Ah.

Overview

The M12715 is an automatic battery charger designed for 6 V and 12 V lead-acid batteries, including WET, MF, GEL, and AGM types. It operates from a 230 V AC, 50 Hz mains supply and provides a maximum charging current of 0.8 A. The charger is suitable for batteries with a capacity between 1.2 Ah and 14 Ah.

What stands out

• Three-stage automatic charging for optimal battery care
• Supports 6 V and 12 V batteries, including GEL and AGM
• LED indicators show charging status
• Protection against overcharge, short circuit, and reverse polarity
• Spark-proof connection for safe operation
• IP65 rated for dust and water resistance
• 1.5 m power cable and 1.5 m charging cable

Technical details

• Charger type: Automatic, 3-stage
• Supported battery voltages: 6 V, 12 V
• Max charging current: 0.8 A (both voltages)
• Supported battery types: WET, MF, GEL, AGM lead-acid
• Recommended battery capacity: 1.2 Ah – 14 Ah
• Input voltage: 230 V AC, 50 Hz
• Protection: Overcharge, short circuit, reverse polarity
• Display: LED indicators
• IP rating: IP65
• Power cable length: 1.5 m
• Charging cable length: 1.5 m
• Operating temperature: -20 °C to +40 °C
• Safety: Spark-proof

Our verdict

The M12715 is a reliable and safe charger for maintaining smaller lead-acid batteries, with comprehensive protection and clear status indication.
