Brushless-motorset BETAFPV 0702 27000KV — 4 stuks voor microdrones

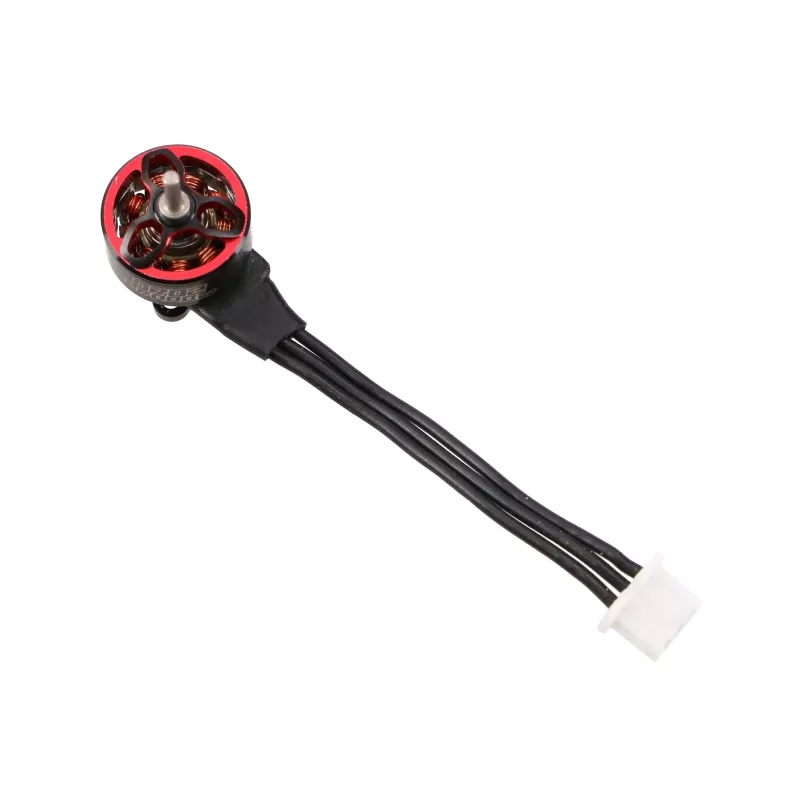

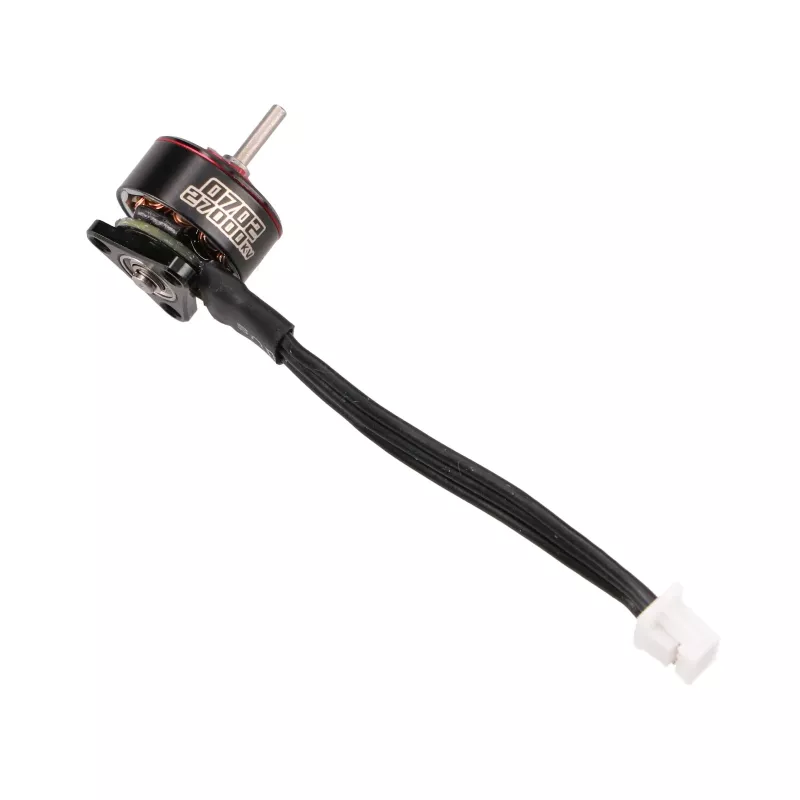

Set of four BETAFPV brushless motors model 0702 with a rated 27000KV, designed specifically for micro and toothpick-style racing drones. These compact motors are built to deliver very high RPM for small-diameter propellers, aiming to improve thrust, acceleration and responsiveness on lightweight FPV frames. The set contains four identical motors intended for direct replacement or upgrade of existing micro drone motors and is compatible with common 0702 mounting patterns.

Advantages

The BETAFPV 0702 27000KV motors offer a high Kv rating that produces fast spool-up and sustained high rotational speed for small props, helping to achieve sharper throttle response and improved agility. Their small form factor reduces weight and fits tight frames used in toothpick and micro builds. Precision manufacturing and balanced rotors contribute to smoother operation and reduced vibration at high RPM. The motors are supplied in a matched set of four for consistent performance across all motor positions.

Suitable for

• Micro and toothpick FPV racing drones with 0702 motor mounts
• Lightweight freestyle or cinewhoop frames that use small propellers
• Upgrading or replacing worn stock motors to increase RPM and responsiveness
• Indoor flying where compact, high-revving motors are preferred

Key specifications

• Motor type: brushless outrunner designed for micro multicopters
• Size classification: 0702 (stator/outer dimensions for micro use)
• Kv (speed constant): 27000KV for high RPM with small-diameter props

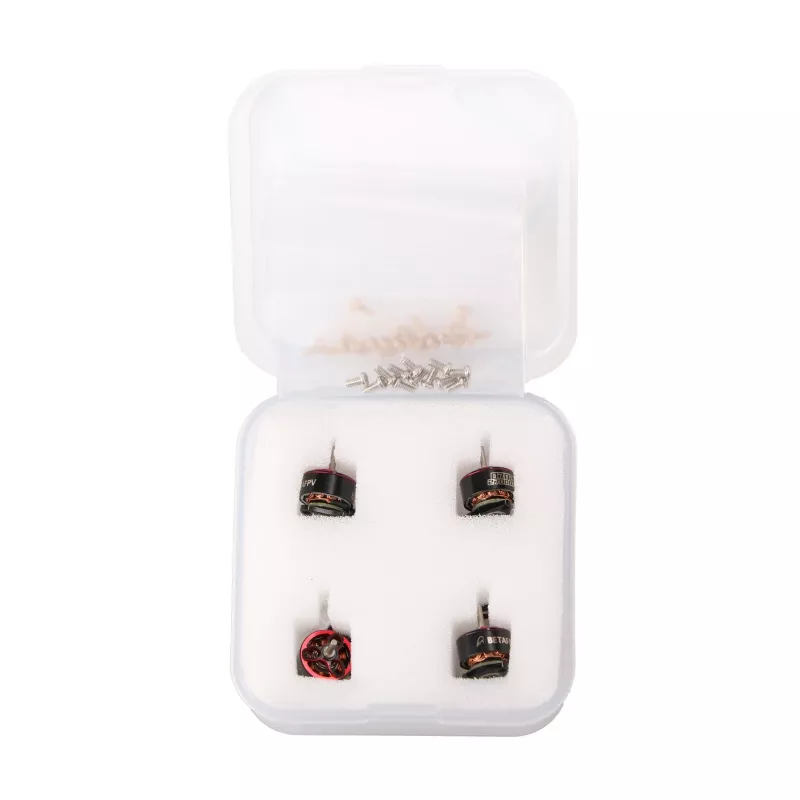

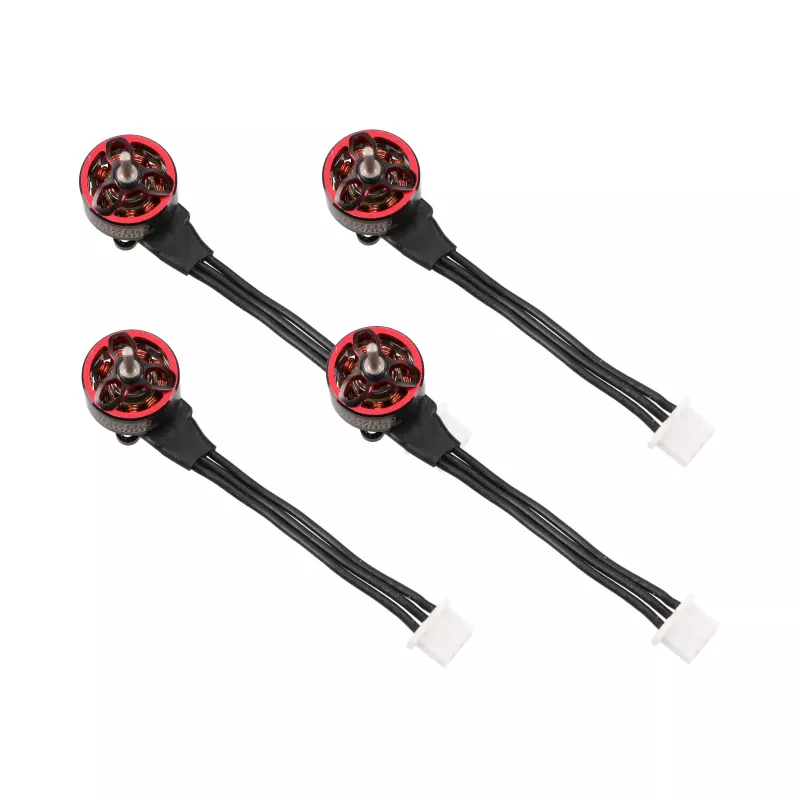

• Set quantity: four identical motors for full-quadcopter replacement
• Intended propeller size: optimized for small props typically used on 1–2-inch props (check frame compatibility)

How to use

Install the motors on a compatible micro drone frame using the matching 0702 mounting holes and appropriate screws. Connect the three motor wires to the electronic speed controllers (ESCs) configured for small brushless motors; if rotation direction is incorrect after initial hookup, swap any two motor phase wires or change direction in the ESC configuration. Verify propeller fit and balance before flight and ensure motors are secured and free of obstruction. Perform a bench test at low throttle to confirm correct spinning direction and smooth operation prior to full-power flight.

Recommendations

Use appropriately sized ESCs and batteries recommended for micro builds, and select propellers suited to 27000KV motors to avoid excessive current draw. Regularly check motor screws and bearings for wear; keep motors clean of debris and replace them if excessive vibration or bearing noise appears. For optimum performance, use balanced props and tune PID/filters for the increased responsiveness these high-Kv motors provide.
