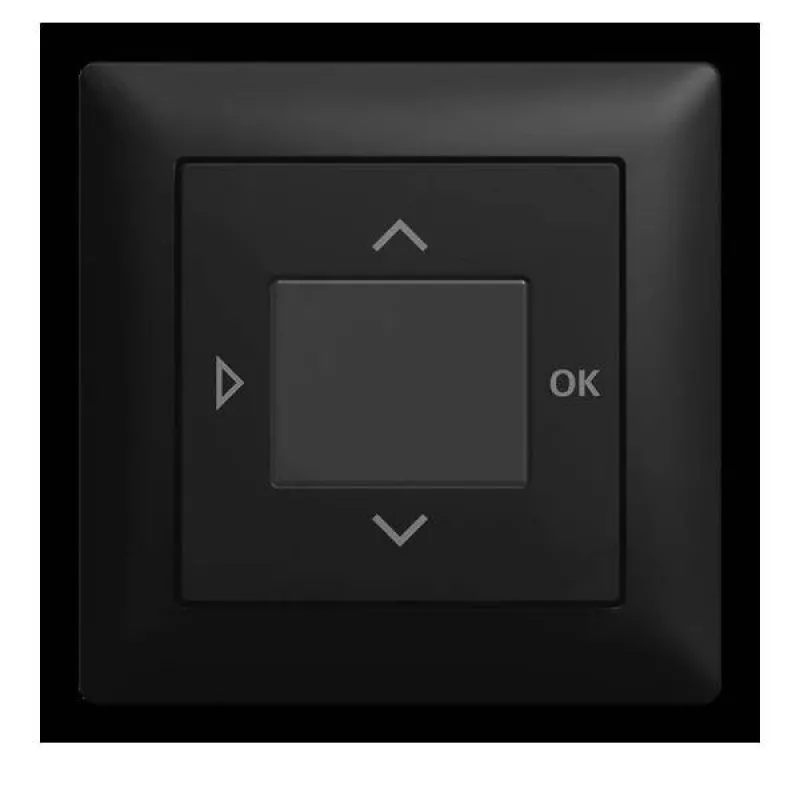

Busch-Jaeger jaloezie/rolluik compact-tijdschakelaar-inzet 6422 UJ-915 2CKA006410A0415

The Busch-Jaeger Blind/Shutter Compact Timer Insert 6422 UJ-915 is a flush-mounted timer module that automates blinds and shutters with precise daily, weekly, astro, random, and holiday programming. Its integrated LCD and manual override provide straightforward control while a 6-hour power reserve preserves settings during brief outages.

Advantages

This timer insert offers versatile programming options, including astro and random functions, to suit both fixed schedules and presence simulation. The clear LCD simplifies setup and monitoring, and the manual override allows immediate adjustment without altering the stored program. With a low standby power consumption of approximately 0.5 W, it contributes to efficient operation.

Suitable for

• Residential blind and shutter control
• Commercial buildings with scheduled shading
• Retrofit into Busch-Jaeger flush-mounted switch ranges

Key specifications

• Operating voltage: 230 V AC, 50 Hz
• Switching current: 3 A (cos φ = 0.6)
• Display: LCD
• Programming: daily, weekly, astro, random, holiday
• Power reserve: approx. 6 hours
• Connection: screw terminals
• Operating temperature: 0 °C to 45 °C
• Material: thermoplastic (PC)

Recommendations

For reliable and flexible blind automation, this timer insert is a solid choice. Ensure compatibility with the specific Busch-Jaeger central plate and rocker (not included) for a complete installation.
