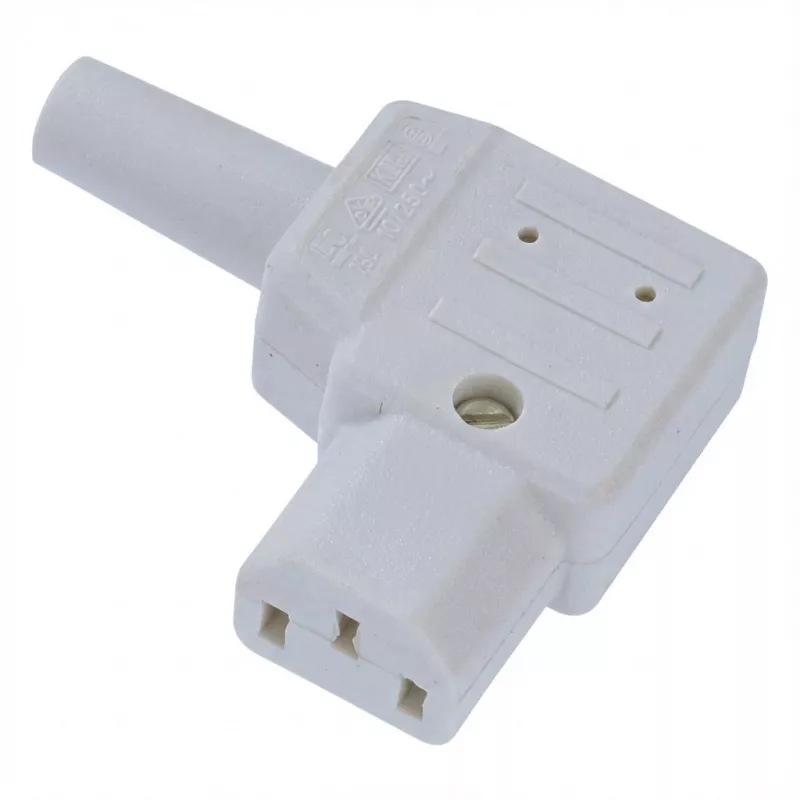

C13 stroomstekker Bachmann 915.970 grijs

For cables up to 3G 1.00 mm², this thermoplastic cable connector features an integrated earthing contact (C13) designed for secure cable mounting. The design includes a screw terminal, a kink protection nozzle and a strain relief to ensure reliable electrical connection and mechanical safety during installation and use.

Advantages

The thermoplastic construction offers durability and electrical insulation. An integrated earthing contact (C13) provides safe grounding. The screw terminal simplifies conductor connection while the kink protection nozzle and strain relief reduce mechanical stress and help prevent cable damage or disconnection.

Key specifications

• Maximum conductor size: 3G 1.00 mm²
• Material: thermoplastic housing
• Earthing contact: integrated C13 for cable mounting
• Terminal type: screw terminal
• Mechanical features: kink protection nozzle and strain relief

How to use

Strip the cable to the appropriate length, insert conductors into the screw terminal and tighten the screws to secure the connection. Ensure the earthing conductor is correctly placed in the integrated C13 contact. Position the kink protection nozzle over the cable and route the cable through the strain relief to minimize bending stress before final assembly.

Recommendations

Verify that the cable cross-section does not exceed 3G 1.00 mm² and that all connections are tightened to the manufacturer's recommended torque. Periodically inspect the strain relief and cable routing for signs of wear or damage.
