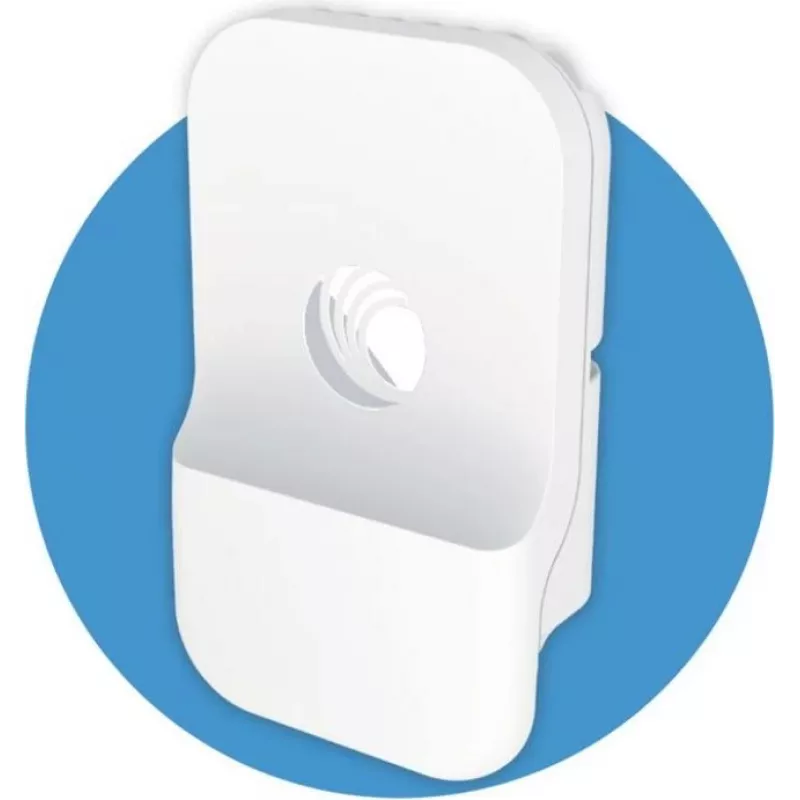

Cambium Networks ePMP Bridge in a Box Force 4518 5 GHz EU-snoer point-to-point draadloze bridgekit

The Cambium Networks ePMP Bridge in a Box Force 4518 is a complete point-to-point (PTP) wireless bridge kit designed for high-performance outdoor connectivity. Operating in the 5 GHz frequency band, this kit delivers up to 1 Gbps aggregate throughput and supports ranges up to 40 km, making it ideal for long-distance network links, backhaul, and enterprise connectivity. The kit includes two Force 4518 radios with integrated 25 dBi dish antennas, two PoE injectors, two EU power cords, and mounting hardware, providing everything needed for a quick and reliable deployment.

Advantages

This bridge kit offers exceptional value with its high-gain integrated antennas, robust IP55-rated enclosures, and support for advanced security features including 128/256-bit AES encryption. The cnMaestro cloud management platform simplifies network monitoring and configuration, while the 802.11ac Wave 2 technology ensures efficient spectrum utilization and high data rates. With a wide operating temperature range and low power consumption, the Force 4518 is built for demanding outdoor environments.

Suitable for

• Point-to-point wireless backhaul for ISPs and enterprises
• Connecting remote buildings, campuses, or surveillance systems
• Extending network coverage in areas where cabling is impractical
• Disaster recovery and temporary network links

Key specifications

• Product Type: Point-to-Point (PTP) Wireless Bridge Kit
• Wireless Standard: 802.11ac Wave 2, Cambium ePMP Proprietary
• Frequency Band: 5 GHz (4910 - 5970 MHz, configurable by region)
• Max Throughput: Up to 1 Gbps Aggregate
• Antenna Type: Integrated Dish Antenna, 25 dBi Gain
• MIMO Configuration: 2x2 MIMO
• Ethernet Ports: 1 x Gigabit Ethernet (10/100/1000BaseT)
• PoE Support: 802.3at PoE+
• Max Range: Up to 40 km (25 miles)
• Processor: Quad-core ARM Cortex A7
• Memory: 256 MB RAM, 256 MB Flash
• Security: 128/256-bit AES Encryption, HTTPS, SNMPv3, SSH
• Management: cnMaestro Cloud, Web GUI, SNMP, CLI
• Operating Temperature: -30°C to 60°C (-22°F to 140°F)
• Ingress Protection: IP55
• Power Consumption: Max 12 W per radio
• Kit Contents: 2x Force 4518 Radios, 2x PoE Injectors, 2x EU Power Cords, Mounting Hardware

Recommendations

For optimal performance, ensure clear line-of-sight between the two bridge units. Use the cnMaestro platform for centralized management and firmware updates. This kit is suitable for professional installation by trained network technicians.
