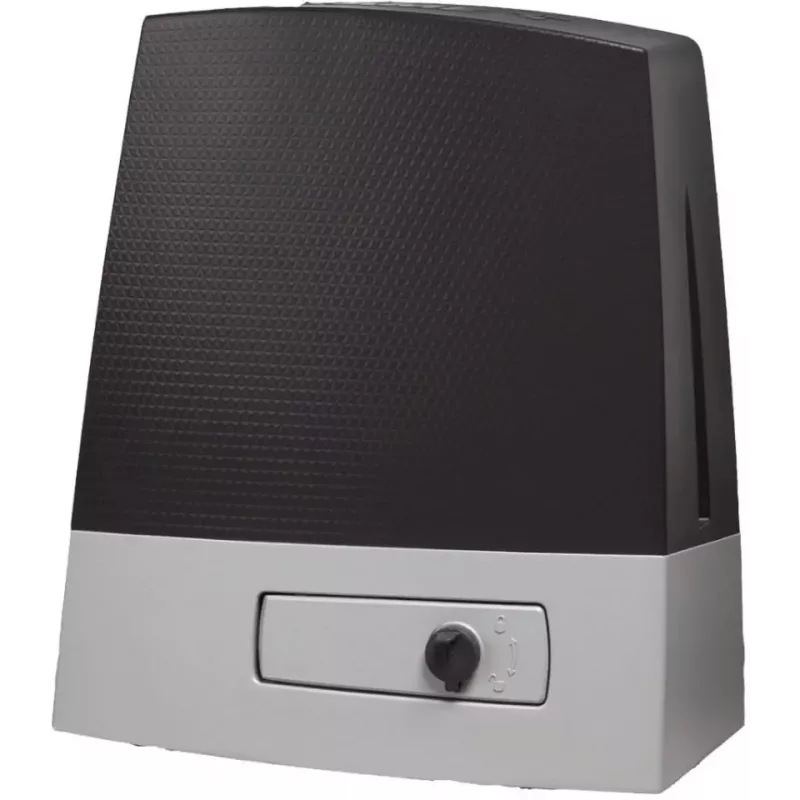

CAME BKX08AGF borstelloze schuifpoortaandrijving 800 kg

The CAME BKX08AGF is a high-performance brushless sliding gate opener designed for residential and commercial gates up to 800 kg. Featuring advanced brushless motor technology, it ensures quiet, efficient, and reliable operation with minimal maintenance. The integrated control unit ZBX7N and encoder provide precise obstacle detection and safety compliance.

Advantages

Brushless motor for energy efficiency and long life; intensive use duty cycle (100%) for heavy traffic; IP54 protection for outdoor installation; self-locking mechanism for security; encoder-based obstacle detection for safety.

Suitable for

• Sliding gates up to 800 kg
• Residential and commercial applications
• High-frequency use environments

Key specifications

• Max Gate Weight: 800 kg
• Motor Type: Brushless
• Power Supply: 230V AC (50/60 Hz)
• Motor Voltage: 36V DC
• Power Consumption: 250 W
• Current Absorption: 7 A
• Traction Force: 300 N
• Opening Speed: 12 m/min
• Duty Cycle: Intensive Use (100%)
• Protection Rating: IP54
• Operating Temperature: -20°C to +55°C
• Integrated Control Unit: ZBX7N
• Encoder: Yes
• Self-locking: Yes
• Gear Material: Steel/Bronze
• Safety Standards: EN 12453, EN 12445

Recommendations

For optimal performance, ensure proper installation by a qualified technician. Regular maintenance checks are recommended to prolong the lifespan of the opener.
