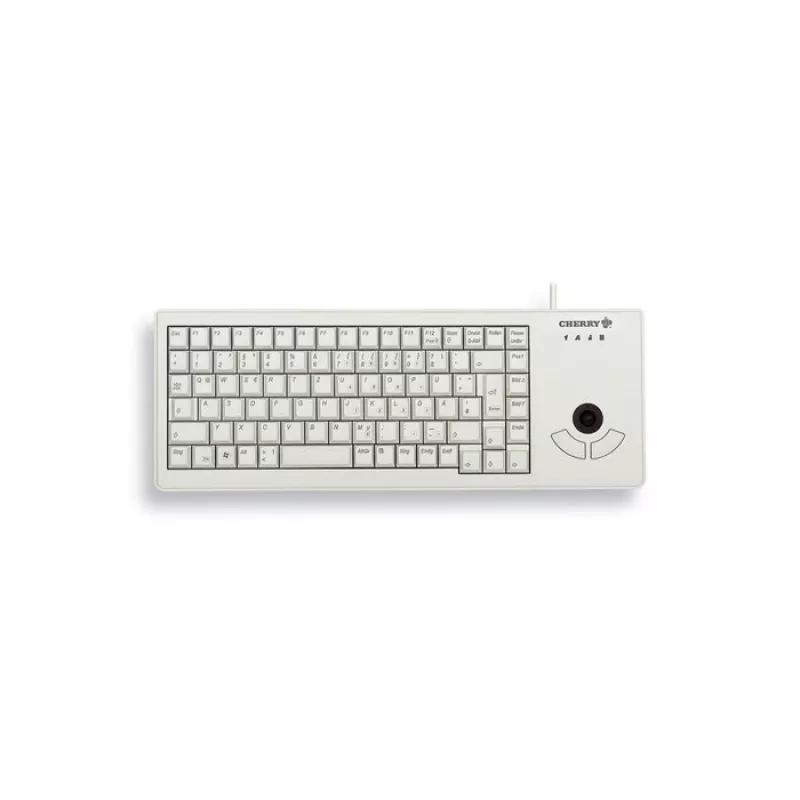

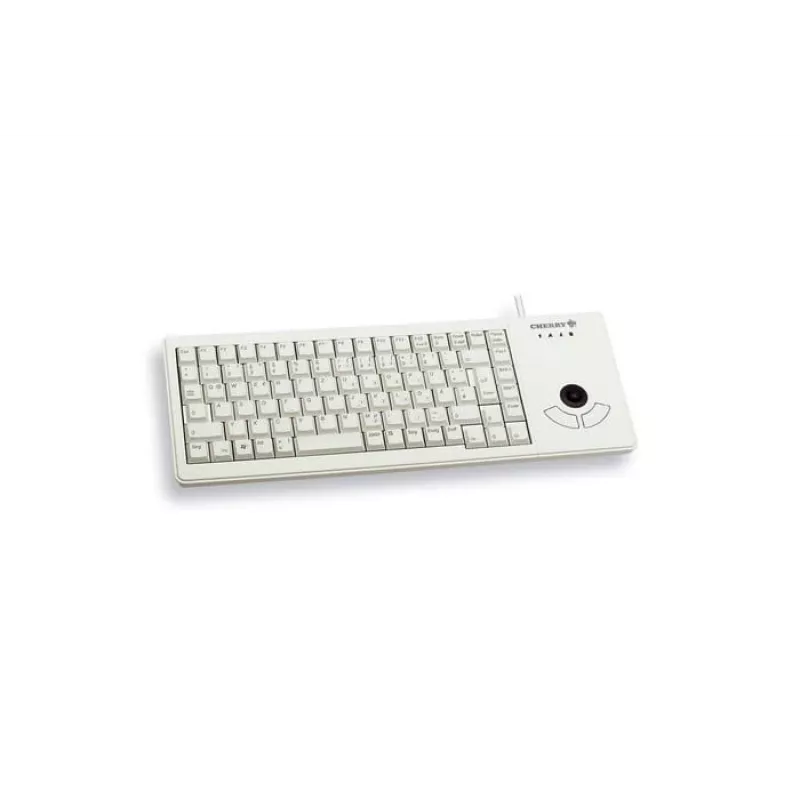

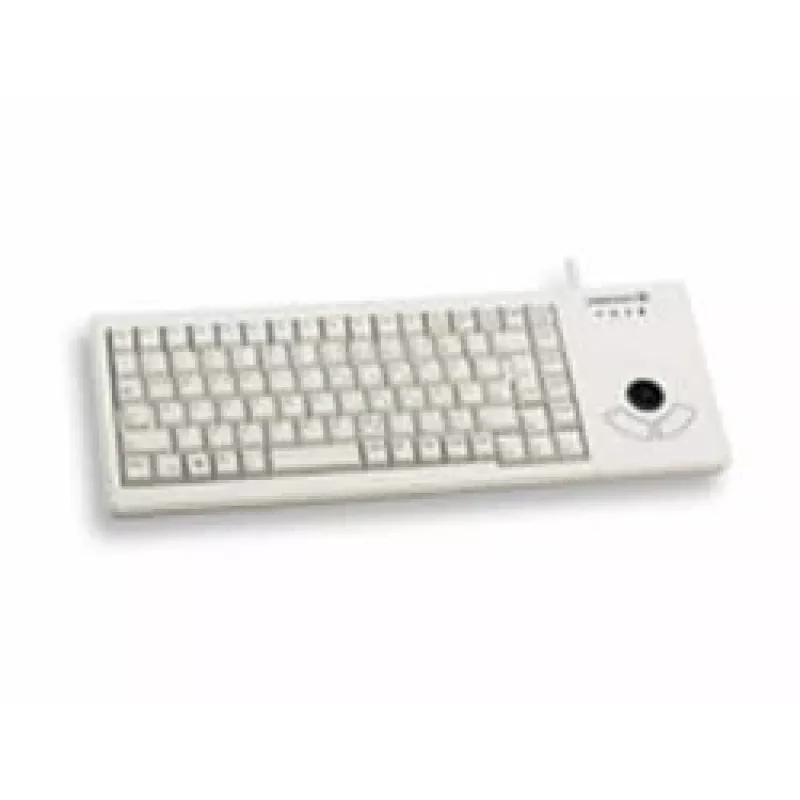

CHERRY XS trackball toetsenbord universeel USB QWERTZ Duits grijs

The XS Trackball Keyboard (G84-5400LUMDE-0) combines compact dimensions with integrated optical trackball control and a full-size 89-key QWERTZ layout. The keyboard connects via USB (2.5 m cable) and uses Cherry ML technology with Gold Crosspoint contacts for a precise keystroke feel and a long operating life. Its low build height, lightweight design and standardised XS family installation dimensions make it suitable for space-restricted and 19" applications, with options for permanent fastening and adjustable tilt.

Advantages

The built-in optical trackball with two mouse buttons enables precise cursor control without a separate mouse. Individual keys with Gold Crosspoint contacts (Cherry ML) deliver reliable actuation and an expected life of over 20 million key confirmations per key. The keyboard is plug & play using standard OS drivers, supports Code Set 3 and UnifiedPOS, and features freely programmable keys for customised workflows. Detachable feet allow adjustment of the typing angle, and the compact, low-profile construction reduces space requirements.

Suitable for

• Point-of-sale terminals and cashier systems
• Industrial and kiosk installations with limited space
• Workstations requiring integrated pointing device
• 19" rack or panel applications following XS family dimensions

Key specifications

• Model: CHERRY XS Trackball Keyboard G84-5400LUMDE-0
• Keys: 89, full-size (100%) QWERTZ layout (German)
• Pointing device: optical trackball with two mouse buttons
• Interface: USB (2.5 m cable)
• Key technology: Cherry ML with Gold Crosspoint contacts
• Expected key life: >20 million key confirmations per key
• Colour: Grey
• Mounting: fastening option for permanent installation; standardised XS family dimensions

How to use

Connect the keyboard to a free USB port using the attached 2.5 m cable; the device is plug & play and uses the operating system's standard drivers. Use the optical trackball and the two mouse buttons for cursor movement and click actions. Program the freely programmable keys via the supported configuration method or software provided by the system integrator to suit frequent tasks. Adjust typing angle by fitting or removing the detachable feet and, if required, use the fastening points for permanent installation.

Recommendations

For optimal longevity, avoid exposing the keyboard and trackball to liquids or excessive dust. Use the trackball area gently and perform periodic cleaning according to site maintenance procedures. Verify compatibility with POS or kiosk software when using Code Set 3 or UnifiedPOS features.
