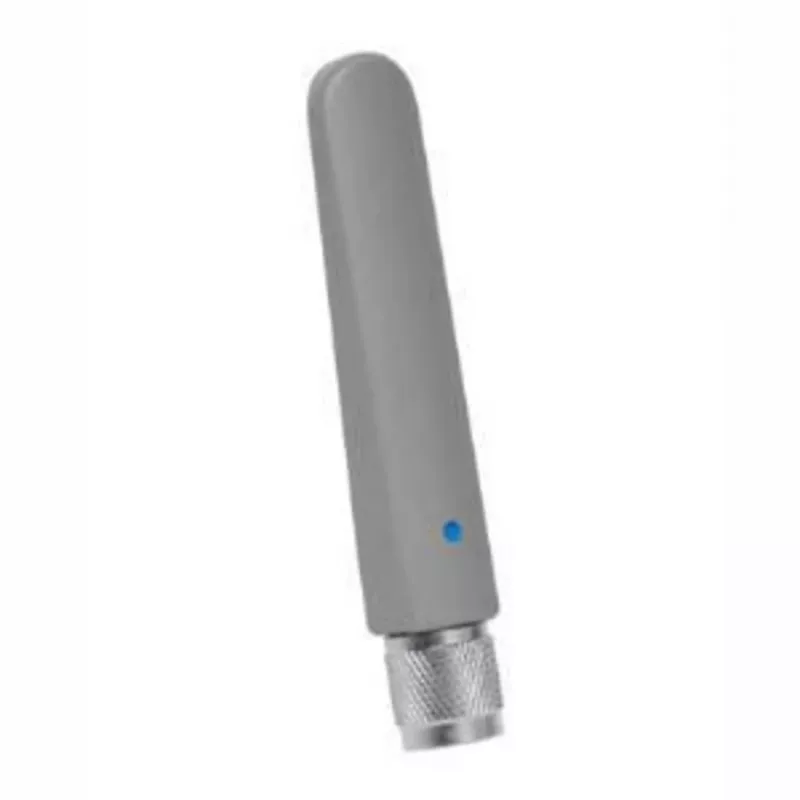

Cisco Aironet AIR-ANT5135DG-R-WS dual-band omnidirectionele antenne 3,5 dBi RP-TNC binnen wit

The Cisco Aironet AIR-ANT5135DG-R-WS is a high-performance dual-band omnidirectional antenna designed for indoor wireless networks. It delivers reliable connectivity and enhanced coverage for 2.4 GHz and 5 GHz bands, making it ideal for enterprise environments such as offices, schools, and hospitals.

Advantages

This antenna provides 3.5 dBi gain on both bands, ensuring strong signal strength and stable connections. Its omnidirectional pattern offers 360-degree horizontal coverage, simplifying installation and reducing dead zones. The compact white design blends seamlessly with indoor ceilings or walls.

Suitable for

• Indoor Wi-Fi networks requiring extended range and coverage
• Enterprise deployments with Cisco Aironet access points
• Dual-band 802.11a/b/g/n/ac environments

Key specifications

• Antenna Type: Omnidirectional
• Frequency Range: 2.4 - 2.5 GHz, 5.15 - 5.85 GHz
• Gain: 3.5 dBi (both bands)
• Connector: RP-TNC
• Polarization: Linear Vertical
• VSWR: < 2:1
• Impedance: 50 Ohm
• Enclosure Material: ABS
• Color: White
• Mounting: Direct-mount
• Operating Temperature: -20°C to 65°C

Recommendations

For optimal performance, pair this antenna with compatible Cisco Aironet access points. Ensure proper mounting to maintain vertical polarization and avoid obstructions.
