CLAGE MBH 3 doorstromer 3,5 kW Plug-and-Play

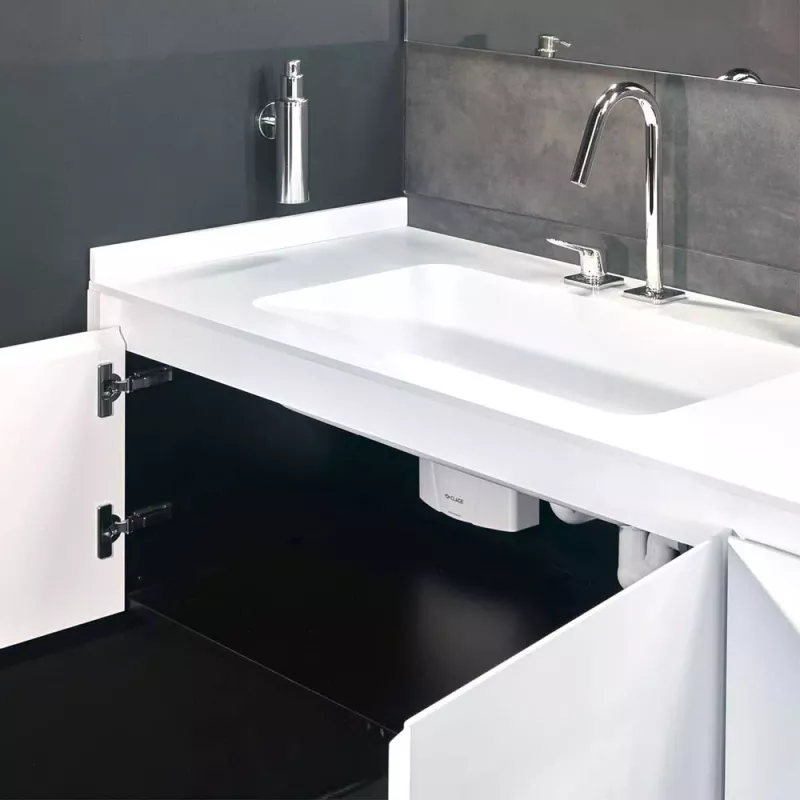

The CLAGE MBH 3 is a compact, instantaneous electric water heater designed for under-sink installation. With a power output of 3.5 kW and a Schuko plug for easy connection, it provides hot water on demand for hand wash basins and guest toilets. Its hydraulic control and bare wire heating system ensure reliable performance with minimal energy consumption.

Advantages

Energy-efficient operation with energy efficiency class A; compact design fits easily under the sink; simple plug-and-play installation with pre-wired Schuko plug; pressure-resistant and suitable for multiple draw-off points; IP25 splash-proof protection for safe use in wet areas.

Suitable for

• Hand wash basins in bathrooms and guest toilets
• Small kitchens or utility rooms
• Renovation projects where quick hot water supply is needed

Key specifications

• Power: 3.5 kW
• Voltage: 230 V
• Rated current: 15.2 A
• Electrical connection: Schuko plug (plug-and-play)
• Energy efficiency class: A
• Minimum flow rate for activation: 1.5 l/min
• Max. flow rate (at 38°C temp rise): 2.0 l/min
• Temperature rise (at 2.0 l/min): approx. 25 K
• Water connection: G 3/8"
• Operating pressure: 1 - 10 bar
• Protection class: IP 25
• Heating system: Bare wire heating system
• Installation type: Under-sink
• Pressure type: Pressure-resistant
• Control type: Hydraulic
• Cable length: 0.7 m
• Colour: White

Recommendations

For optimal performance, ensure the water pressure is within the specified range and the device is installed by a qualified professional. Regular maintenance of the heating system will prolong the lifespan of the unit.
