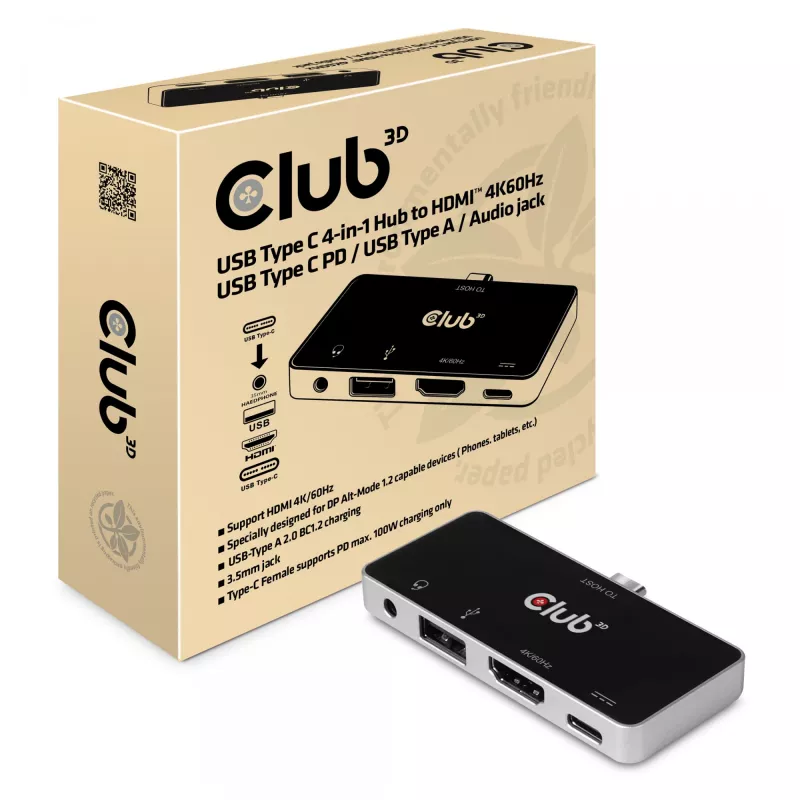

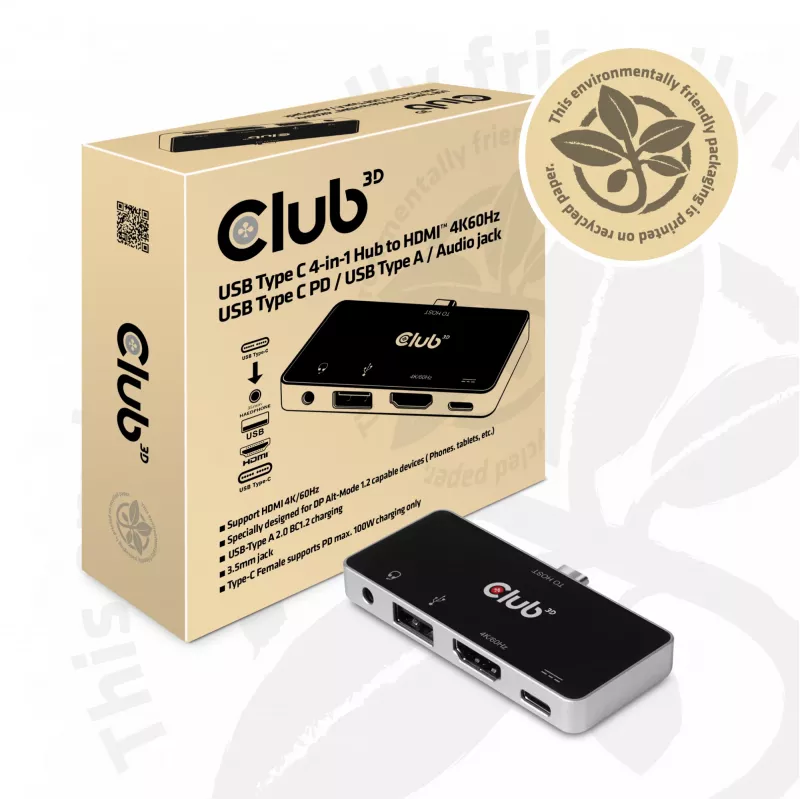

CLUB3D USB Type-C 4-in-1 Hub naar HDMI™ 4K60Hz USB Type-C PD / USB Type-A / Audioaansluiting

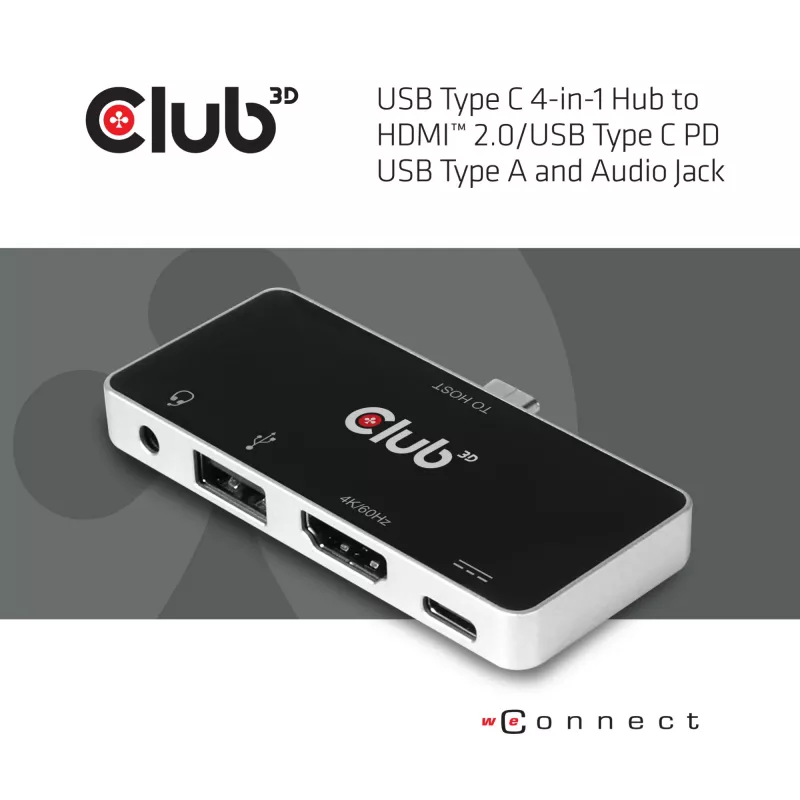

The Club 3D USB Type C Hub (CSV-1591) is a compact 4-in-1 adapter that expands a USB Type-C or Thunderbolt 3 host supporting DP Alt Mode. It combines an HDMI output capable of up to 4K@60Hz, a USB Type-A port, a 3.5 mm audio jack and a USB Type-C PD input for charging, providing a simple multiport solution for displays, audio and peripherals.

Advantages

This USB Type C Hub supports DP Alt Mode on USB-C and Thunderbolt 3 hosts and delivers HDMI video up to 4K@60Hz. It includes a USB Type-A port for peripheral and data connections, a 3.5 mm audio jack for analog sound output, and a USB Type-C PD input for pass-through charging of the host. The compact housing and lightweight construction make it convenient for travel and mobile use.

Suitable for

• Connecting a laptop or tablet with USB-C/Thunderbolt 3 (DP Alt Mode) to an external HDMI monitor or TV
• Listening to audio via headphones or external speakers using the 3.5 mm jack
• Connecting USB Type-A peripherals such as keyboards, mice or flash drives (USB 2.0/USB 3.2 Gen 1 compatible)
• Charging the host device through USB Type-C PD pass-through while using other ports

Key specifications

• Model: CSV-1591
• Brand: club 3d
• Host interface: USB 3.2 Gen 1 (Type-C) with DP Alt Mode support
• Video output: HDMI up to 4K@60Hz (when host supports DP Alt Mode)

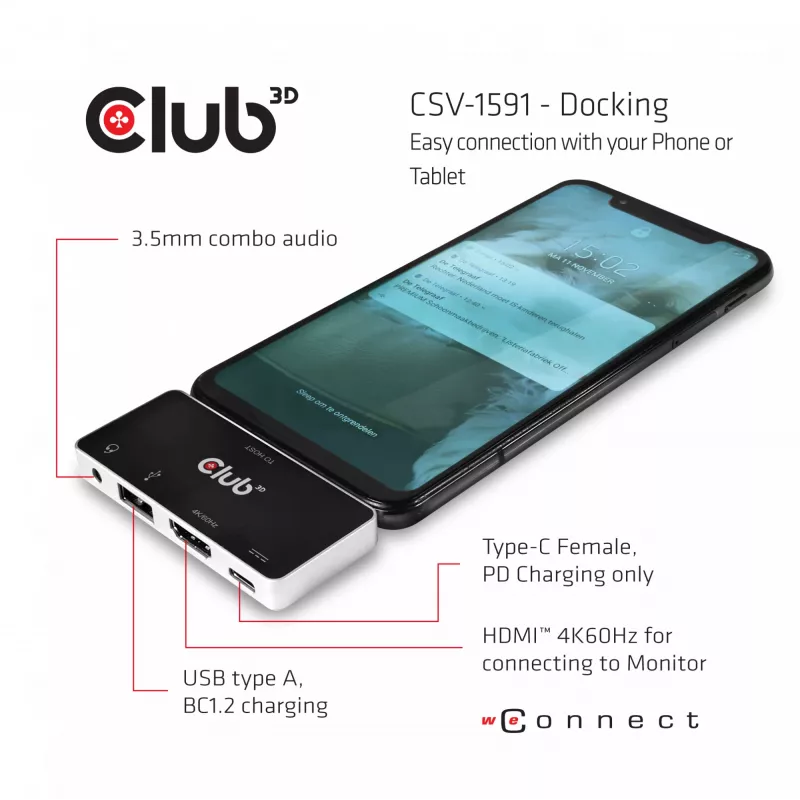

• Ports: HDMI, USB Type-A, 3.5 mm audio, USB Type-C PD
• Power: USB Type-C PD pass-through (supports external PD adapter; actual wattage depends on adapter and host)

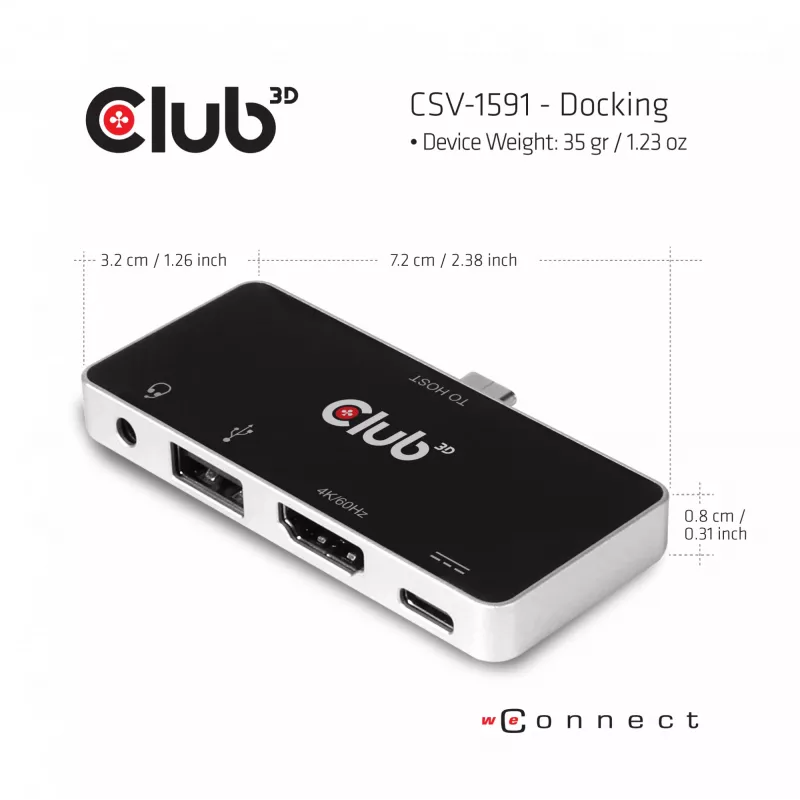

• Dimensions: 72 mm x 32 mm x 9 mm
• Weight: 0.035 kg
• Colour: Black, Chrome
• RoHS certified

How to use

Connect the hub's USB Type-C male connector to a compatible host device that supports DP Alt Mode or Thunderbolt 3. Attach an HDMI cable from the hub to an external monitor or TV to output video (set the host display settings as needed). Plug USB Type-A devices into the USB port for data transfer and use the 3.5 mm jack for analog audio. If you need to charge the host while using the hub, connect a USB Type-C PD adapter to the hub's USB-C PD port.

Recommendations

Ensure the host device supports DisplayPort Alt Mode over USB-C for HDMI video output. Use an appropriate USB-C PD adapter and cable for reliable pass-through charging. For best video performance, use high-quality HDMI cables rated for 4K@60Hz.
