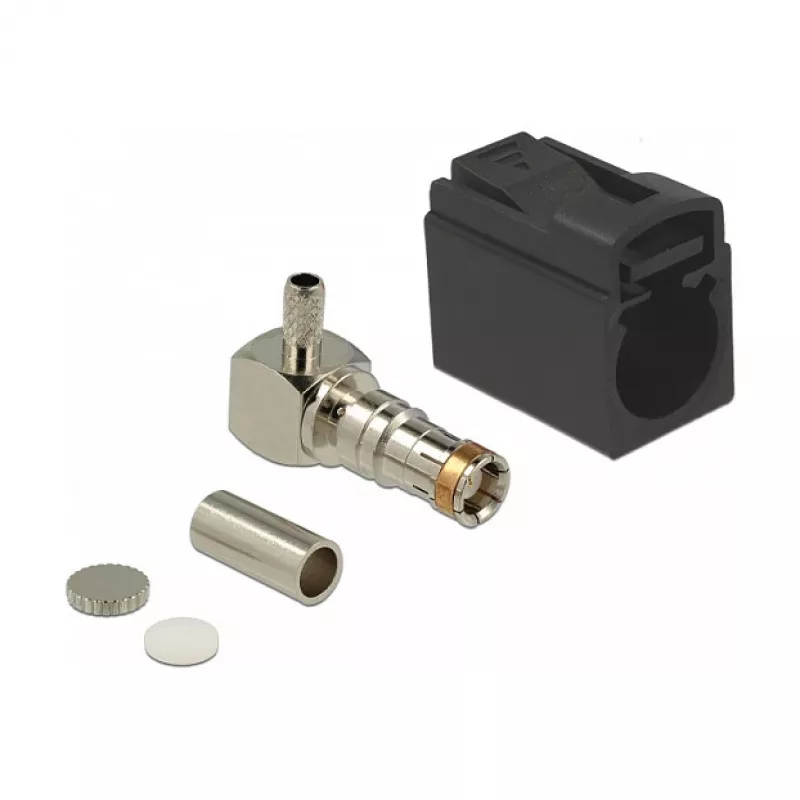

Coaxiale connector DeLOCK 89713

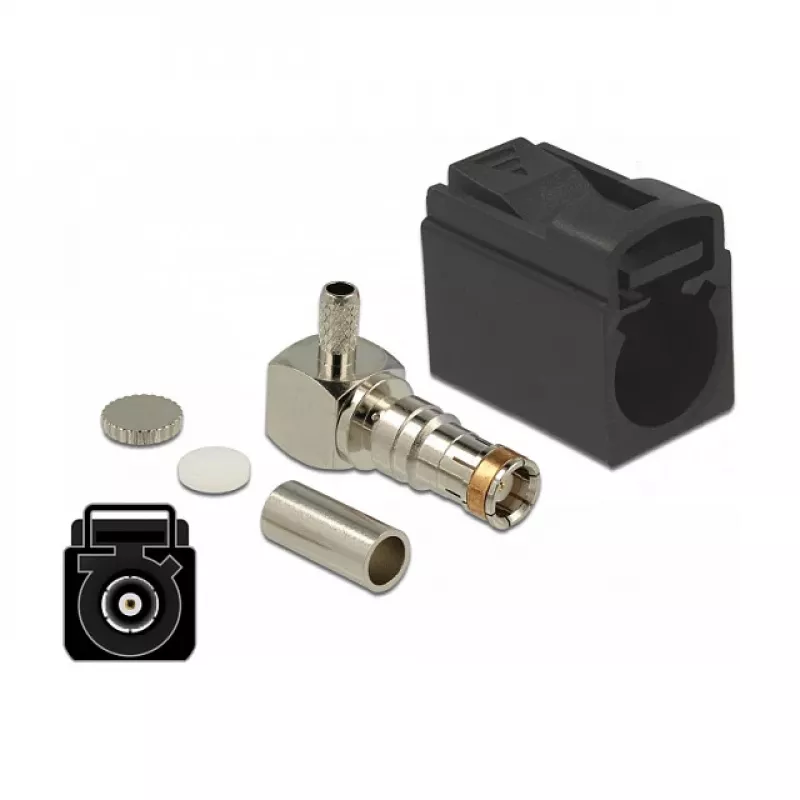

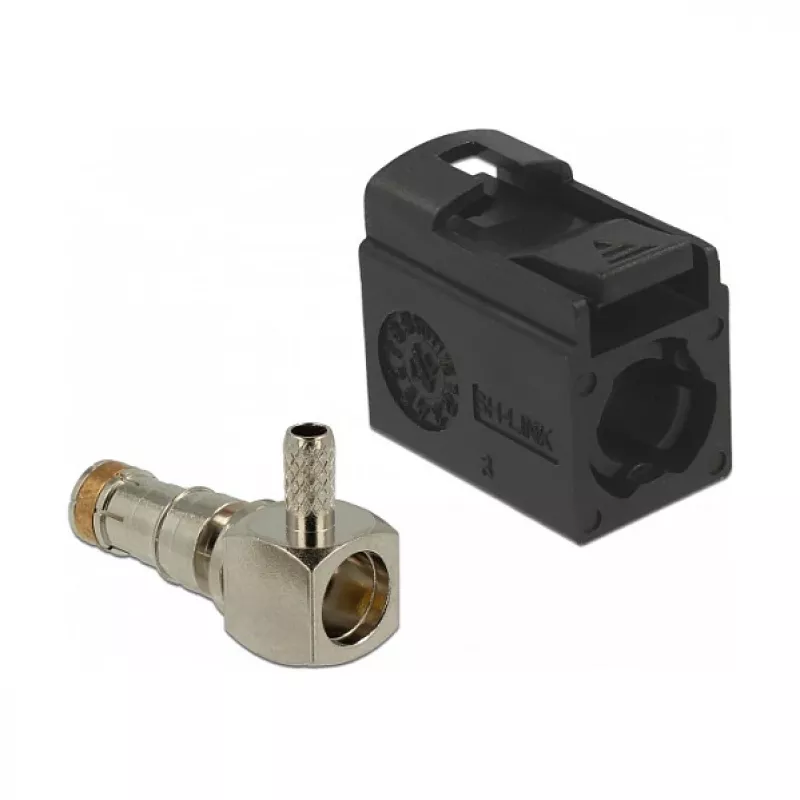

The DeLOCK 89713 coaxial connector is a right-angle FAKRA A male connector designed for reliable connections in automotive and telecommunications RF applications. It measures 13.8 mm in width, 21.5 mm in depth and 9.5 mm in height, and is supplied in a polybag. The connector is finished in black and stainless steel for durability and compatibility with standard FAKRA A ports.

Advantages

The FAKRA A male right-angle design enables space-saving installation in tight housings and cable runs. Its metal and plastic construction ensures stable mechanical connection and resistance to wear. Supplied in a polybag, the connector is ready for integration into harnesses or assemblies without additional packaging.

Suitable for

Key specifications

How to use

Prepare the coaxial cable according to the FAKRA assembly specifications and attach the DeLOCK 89713 connector using the recommended crimping or soldering method for your cable type. Align the right-angle FAKRA A male interface with the corresponding female socket and press until the locking feature engages. Verify the mechanical fit and perform an electrical continuity and impedance check to ensure correct installation.

Recommendations

For reliable RF performance, use the connector with cable types and assembly tools specified for FAKRA connections. Avoid excessive mechanical stress on the right-angle joint and protect the connector from prolonged exposure to corrosive environments.
