Coaxiale connector F-type ShiverPeaks BS85030-AG

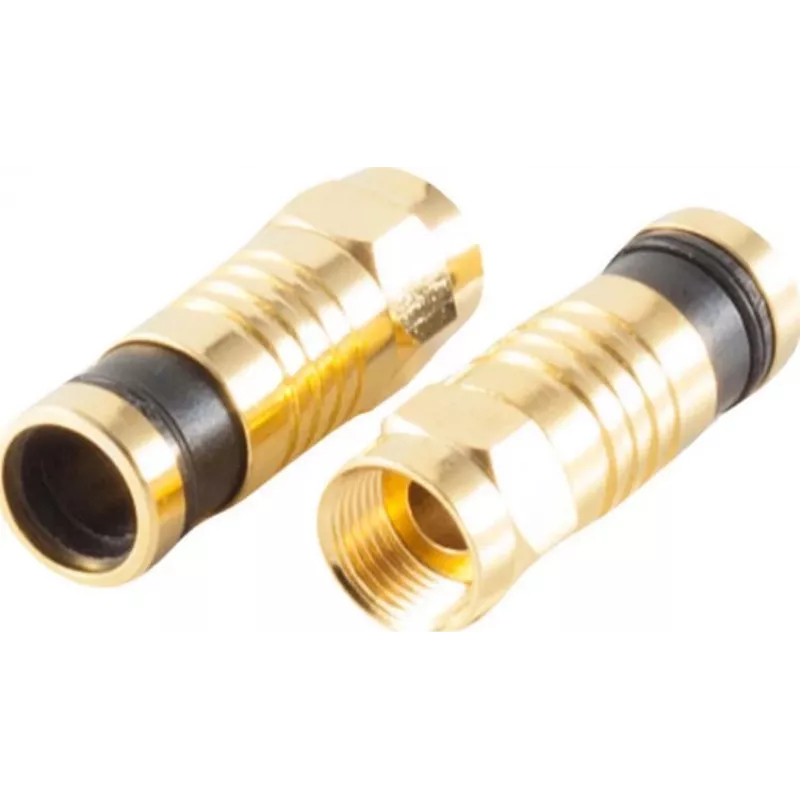

The ShiverPeaks BS85030-AG F-type coaxial connector is a single male connector designed to provide a stable physical and electrical connection for coaxial cable assemblies used in home entertainment systems and signal distribution. With a 7.2 mm outer diameter on the male end, it is compatible with common coaxial cable fittings and supports routine indoor installations where a reliable RF connection is required.

Advantages

This connector offers a compact, standardized F-type interface that ensures consistent mating with compatible female sockets. Its straightforward single-piece design facilitates quick installation and reduces the likelihood of intermittent contact. The metal construction provides mechanical durability and maintains signal integrity by minimizing impedance discontinuities at the connection point.

Suitable for

• Connecting coaxial cables to televisions, set-top boxes and satellite receivers
• Home antenna and cable TV installations
• Signal distribution in AV cabinets and wall plates
• Temporary or permanent indoor RF connections

Key specifications

• Connector type: F-type (male)
• Outer diameter (male): 7.2 mm
• Pack quantity: single connector
• Intended use: indoor coaxial cable connections for RF signals
• Material: metal body for mechanical strength and shielding

How to use

Prepare the coaxial cable by stripping the outer jacket and dielectric to expose the conductor and the outer shield following standard coax termination dimensions. Insert the prepared cable into the connector body, ensuring the center conductor aligns with the male pin and the shield makes secure contact with the connector body. Tighten the connector until firm by hand or with an appropriate tool if required; avoid over-tightening to prevent damage. Verify continuity and signal quality after installation.

Recommendations

For best performance, use this F-type connector with compatible RG6 or similar coaxial cables and ensure clean, corrosion-free contact surfaces. Use indoor-rated fittings in dry environments and consider weatherproofing or using purpose-built outdoor connectors for exterior installations.
