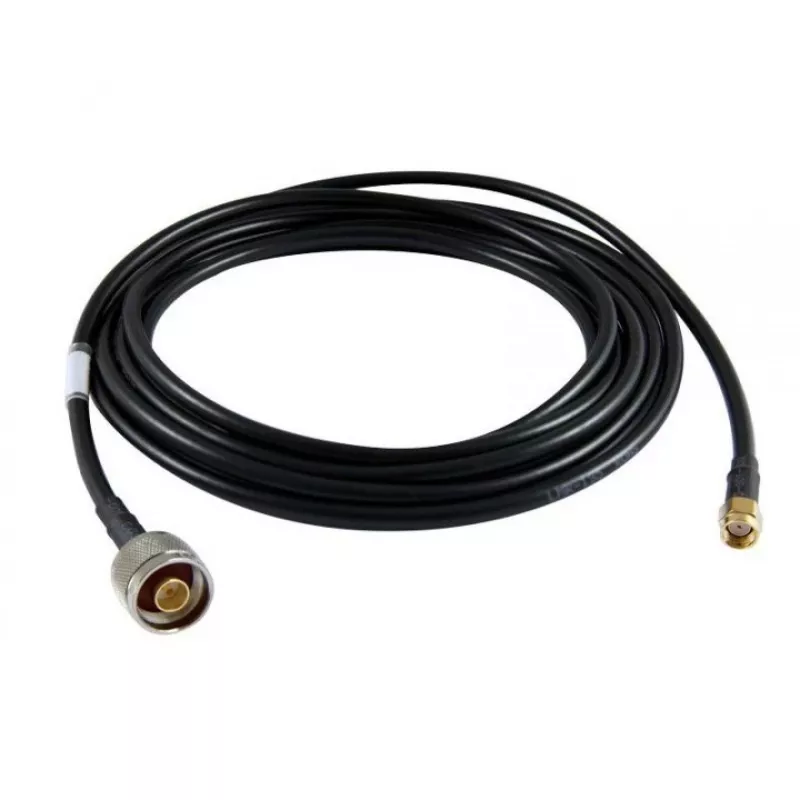

Coaxkabel ALLNET ANT-CAB-LMR195-SMAM-NM-1000 10 m SMA-stekker N-type stekker

The ALLNET ANT-CAB-LMR195-SMAM-NM-1000 is a 10 m coaxial cable with SMA male and N-type male connectors designed for reliable RF signal transmission. Constructed to provide consistent impedance and low insertion loss across common radio frequency ranges, this cable is suitable for connecting antennas, radio modules, routers, and other RF equipment that require durable, flexible interconnection over short-to-medium distances.

Advantages

This coaxial cable offers low attenuation and stable characteristic impedance to minimize signal reflections and power loss. Its combination of SMA male and N-type male connectors enables compatibility between compact RF devices and larger antenna systems. The cable’s flexible outer jacket and solid shielding construction provide mechanical durability and protection against electromagnetic interference while maintaining ease of routing and installation.

Suitable for

• Connecting outdoor or indoor antennas to routers, modems, or base stations
• Laboratory and test setups where SMA-to-N-type connections are required
• Wireless communication links, repeaters, and signal boosters
• Temporary or permanent installations in RF prototyping and development

Key specifications

• Cable type: LMR195-style coaxial
• Length: 10 m
• Connectors: SMA male to N-type male
• Impedance: 50 Ω characteristic impedance
• Construction: braided shielding with flexible outer jacket
• Typical use: RF signal transmission for VHF/UHF and cellular frequency ranges

How to use

Ensure both devices are powered down before connecting the cable to avoid accidental damage. Align the SMA male connector with the SMA female port and carefully thread until finger-tight; do not overtighten. Attach the N-type male connector to the corresponding N-type female port and tighten with the appropriate torque tool or hand-tighten according to the installation environment. Route the cable to avoid sharp bends, kinks, and mechanical strain; secure with cable ties or clamps as needed. Inspect connectors for damage and confirm secure, corrosion-free contact in outdoor installations.

Recommendations

For optimal performance, keep cable runs as short as practical and avoid close parallel runs with power wiring. In outdoor or exposed environments use proper weatherproofing at connector joints and consider additional strain relief. Replace the cable if the shielding or jacket shows visible wear or if signal degradation occurs.
