Glasvezel patchpaneel DeLOCK 10 inch 12 poorten LC quad aqua 1U zwart

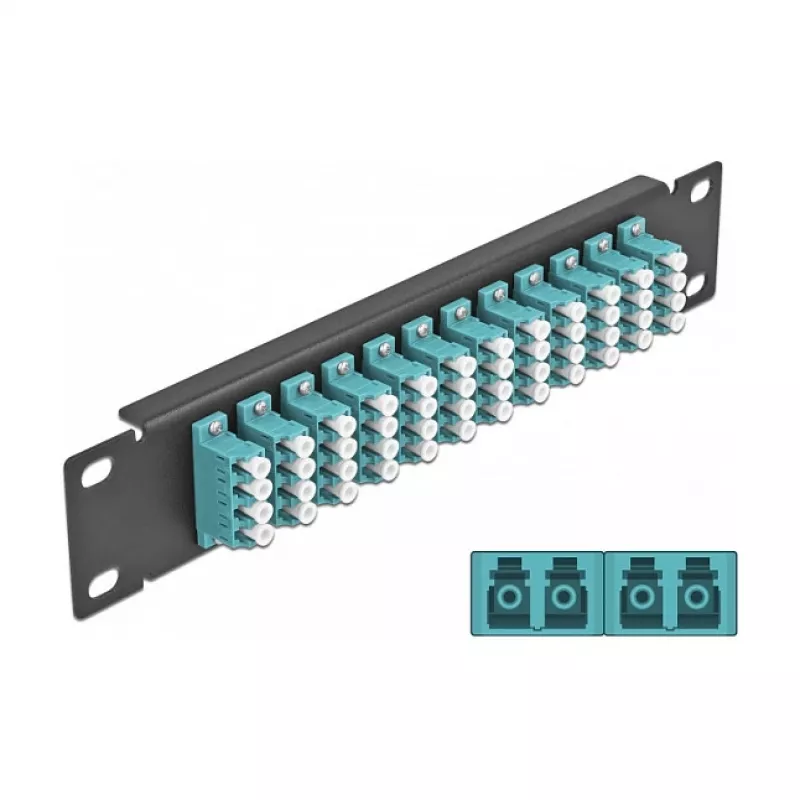

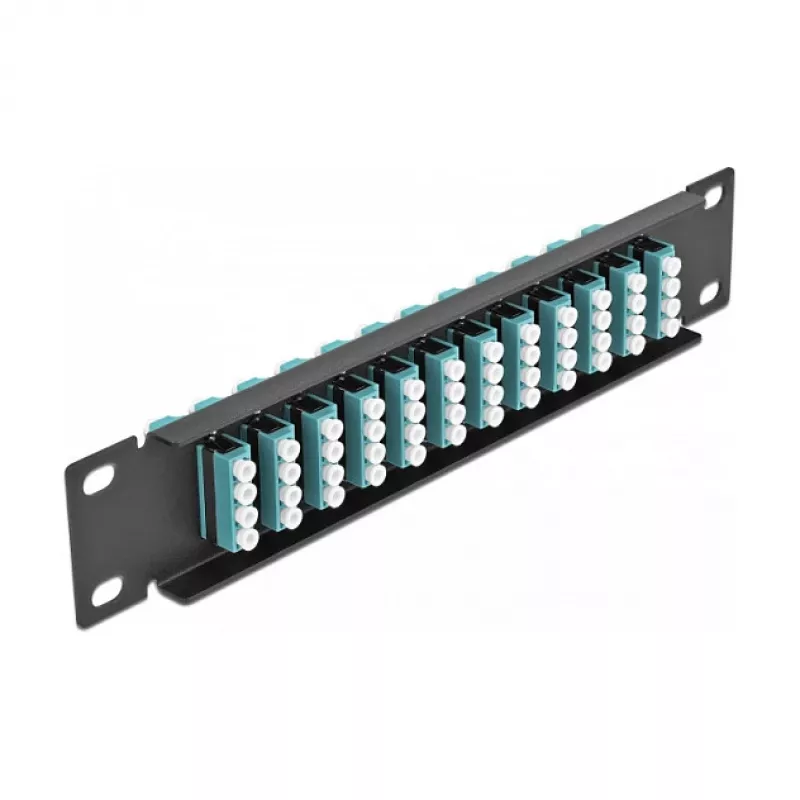

The DeLOCK 10" 12 Port LC Quad aqua patch panel is a 1U rack-mountable metal panel designed for organized fiber optic connections in a 10" network cabinet. It provides twelve LC Quad fibre couplers for straightforward mating of LC Quad fiber connectors, supporting reliable high-speed data transmission in compact installations.

Advantages

The panel offers twelve LC Quad ports in a 1U form factor, saving rack space while allowing multiple duplex fiber links. Constructed from metal with an aqua and black finish, it supports standard 10" cabinet mounting and facilitates neat cable management through fixed couplers. The pre-installed LC Quad couplers simplify connection and reduce installation time.

Suitable for

• Telecommunication racks and 10" network cabinets
• Data center fiber distribution and cross-connects
• Server rooms and network closets with limited rack space
• FTTx and backbone fiber cabling points

Key specifications

• Model: DeLOCK 10" 12 Port LC Quad
• Ports: 12 LC Quad fibre couplers
• Height: 1U
• Material: Metal
• Colour: Aqua and Black
• Mounting: 10" rack/cabinet
• Dimensions (W×H×D): 44 mm × 10 mm × 254 mm
• MPN: 66779
• EAN: 4043619667796

How to use

Install the patch panel in a 10" network cabinet at a chosen rack position using appropriate mounting screws. Route the incoming and outgoing fiber cables to the rear of the panel, terminate them with compatible LC Quad connectors if not pre-terminated, and insert the connectors into the front LC Quad couplers until they click. Label ports as needed for identification and secure excess cable to maintain minimum bend radii.

Recommendations

Use compatible LC Quad connectors and follow standard fiber handling practices: keep connectors clean, avoid excessive bending, and perform end-face inspection and testing after installation to ensure optimal signal performance.
