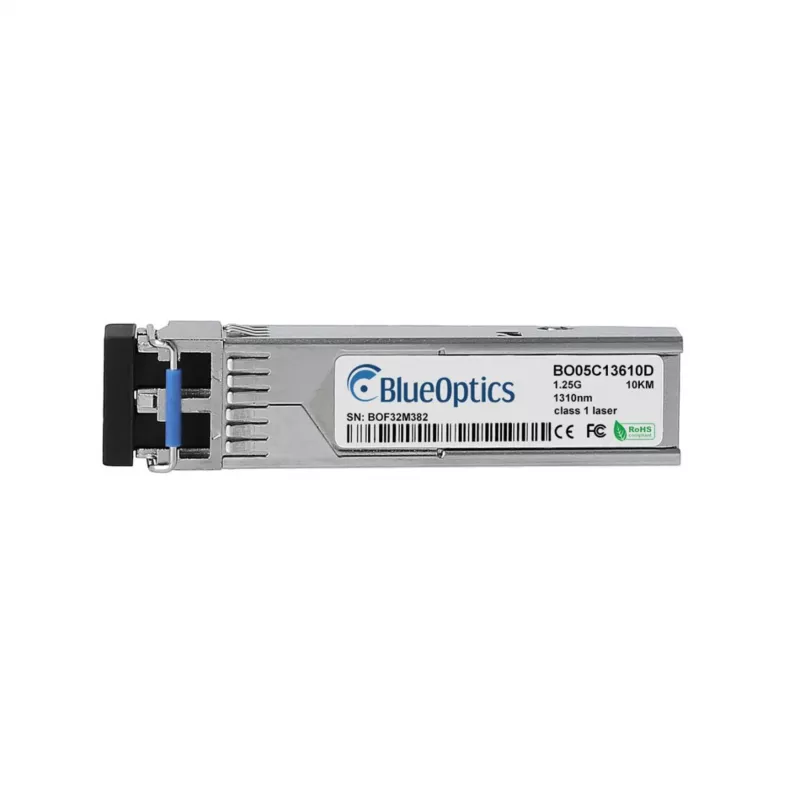

Compatibele Finisar FTLF1319P1BTL BlueOptics BO05C13610D SFP-transceiver, LC duplex, 1000BASE-LX, single-mode, 10 km

The BlueOptics BO05C13610D SFP transceiver is a high-performance, cost-effective solution designed for Gigabit Ethernet applications. Fully compatible with Finisar FTLF1319P1BTL, this module delivers reliable data transmission over single-mode fiber at distances up to 10 km. It supports 1000BASE-LX standards and features LC duplex connectors, making it ideal for enterprise networks, data centers, and telecommunications.

Advantages

This transceiver offers seamless integration with existing network infrastructure, ensuring interoperability with major brands. Its hot-pluggable design simplifies installation and maintenance, while Digital Diagnostic Monitoring (DDM) provides real-time performance tracking. Low power consumption (<1W) and a wide operating temperature range (0°C to 70°C) enhance reliability in diverse environments.

Suitable for

• Gigabit Ethernet connections in LANs and WANs
• Fiber Channel applications
• Data center interconnects
• Telecommunications networks

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Wavelength: 1310 nm
• Max Distance: 10 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Duplex
• Standard: IEEE 802.3z 1000BASE-LX
• DDM/DOM Support: Yes
• Hot-Pluggable: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: <1W
• Transmitter Type: FP Laser
• Receiver Type: PIN Photo Detector
• Compliance: RoHS, CE, FCC, MSA
• Voltage: 3.3V
• Duplex Mode: Full Duplex

Recommendations

For optimal performance, pair this transceiver with high-quality single-mode fiber patch cables and ensure proper cleaning of connectors before installation. Compatible with all MSA-compliant SFP slots.
