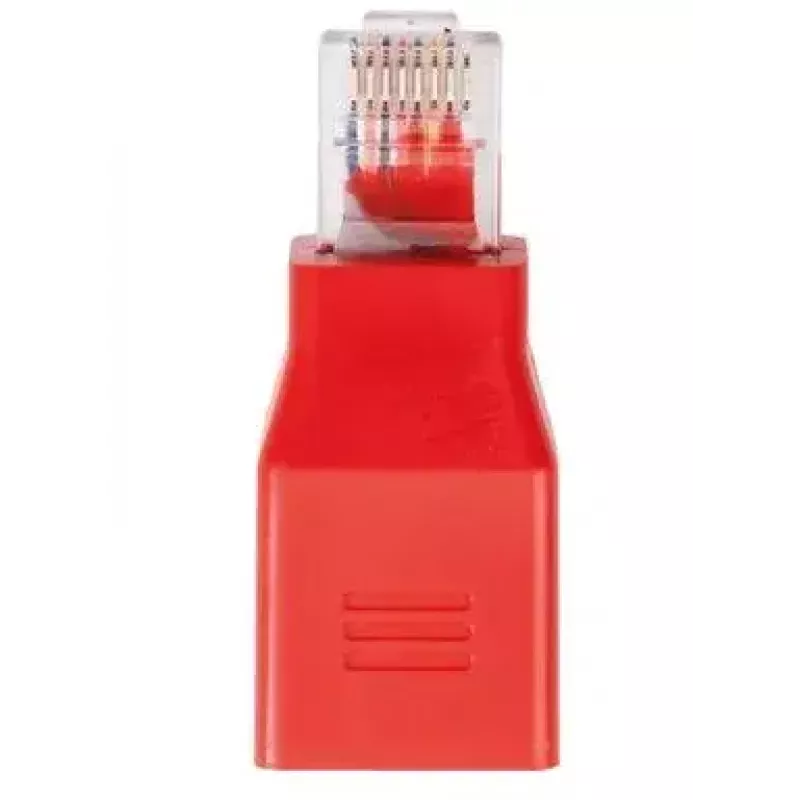

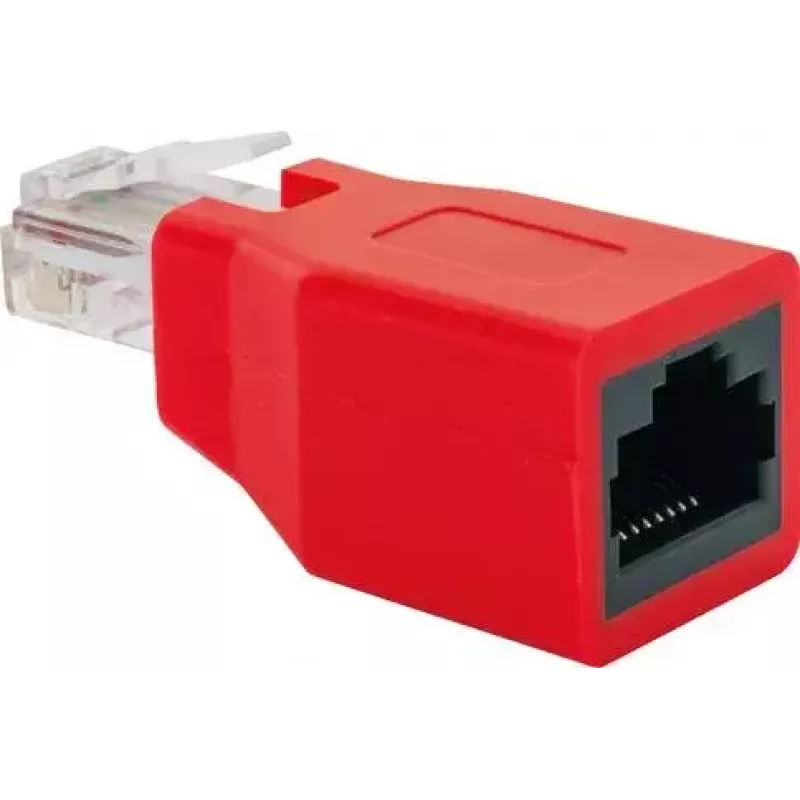

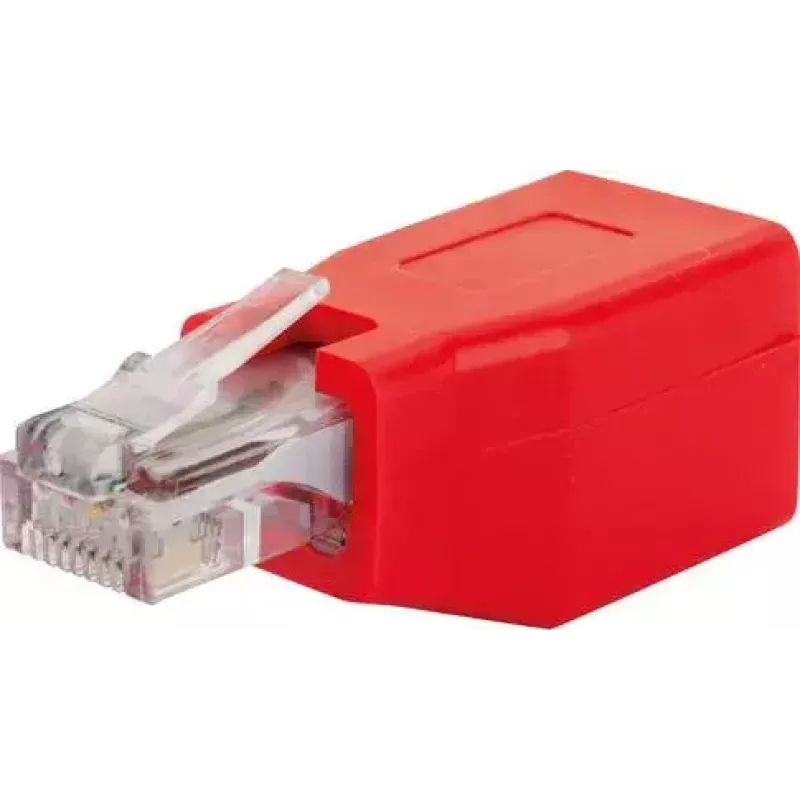

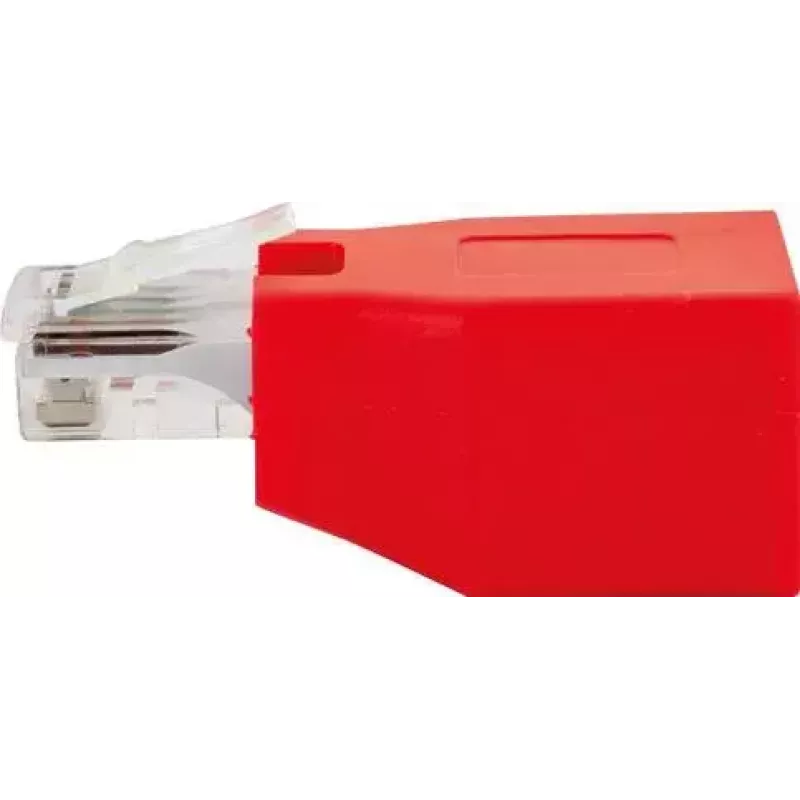

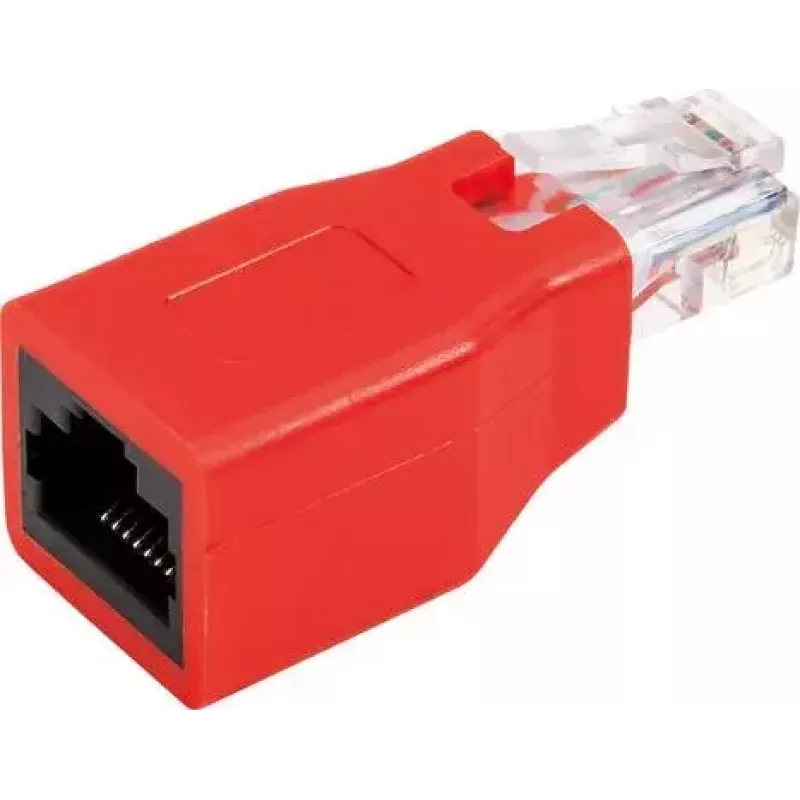

Connector RJ-45 Schwaiger CKR01 531 rood

The Schwaiger CKR01 531 Red is an RJ-45 connector designed to provide reliable wired network connections where identification and durability are important. The compact module presents two RJ-45 ports in a single housing finished in red, enabling convenient linking of Ethernet cables for home, office or light industrial network setups. The unit supports standard 8P8C modular plugs and is intended to simplify cabling tasks while maintaining consistent data transmission.

Advantages

The red double RJ-45 connector offers a clear visual marker to separate network segments or identify specific links. Its robust housing and standardized RJ-45 interfaces ensure compatibility with commonly used Ethernet cables and network devices. The dual-port layout reduces the number of separate adapters needed and helps keep patching points compact and orderly. The product is engineered for straightforward installation and sustained mechanical contact to support ongoing use.

Suitable for

• Extending or joining Ethernet cables in home networks
• Creating a visible connection point for office patching bays
• Temporary network setups during maintenance or equipment changes
• Identifying different network lines using color-coded connectors

Key specifications

• Connector type: RJ-45 (8P8C) double-port module
• Color: red for easy visual identification
• Compatibility: fits standard Ethernet (Cat5/Cat5e/Cat6) RJ-45 plugs
• Housing: durable plastic construction for repeated use
• Mounting: inline/ad-hoc cabling adapter for patching or extension

How to use

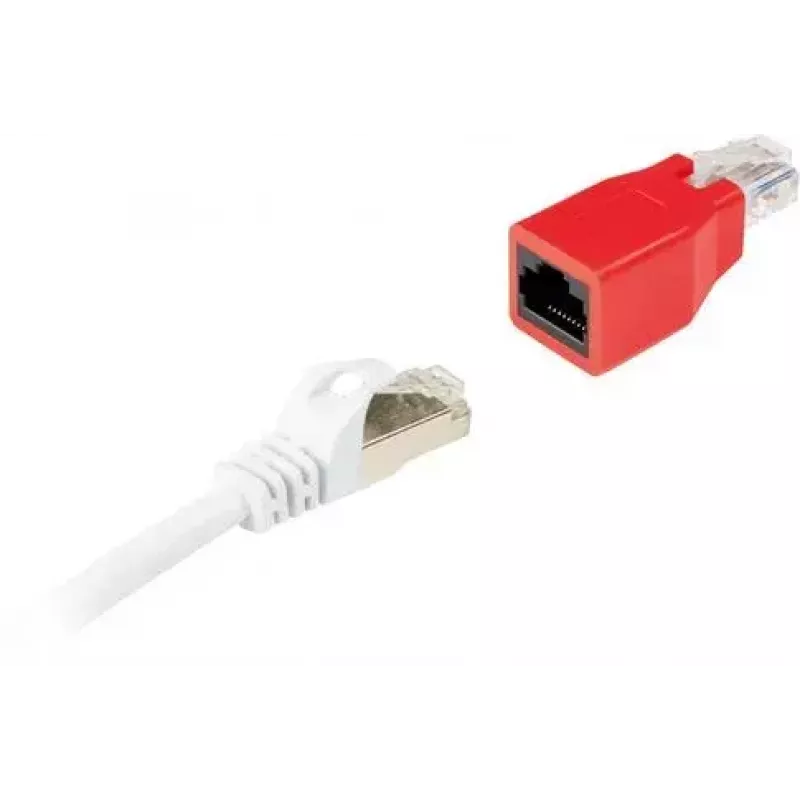

Insert RJ-45 plugs from Ethernet cables into the two ports until the retaining clips engage. Use the connector inline to join two cable ends or as a pass-through adapter between patch cords. Ensure plugs are correctly oriented and fully seated to maintain signal continuity. For best performance, avoid excessive bending or tension on connected cables and check seating if connection issues occur.

Recommendations

Use the red connector to mark specific network runs or temporary links and keep connections away from sources of mechanical strain. Verify cable categories are appropriate for the intended network speed and replace connectors that show signs of wear to preserve signal integrity.
