Converter EDSFF E1.S naar M.2 Key M-slot NVMe DeLOCK 63797

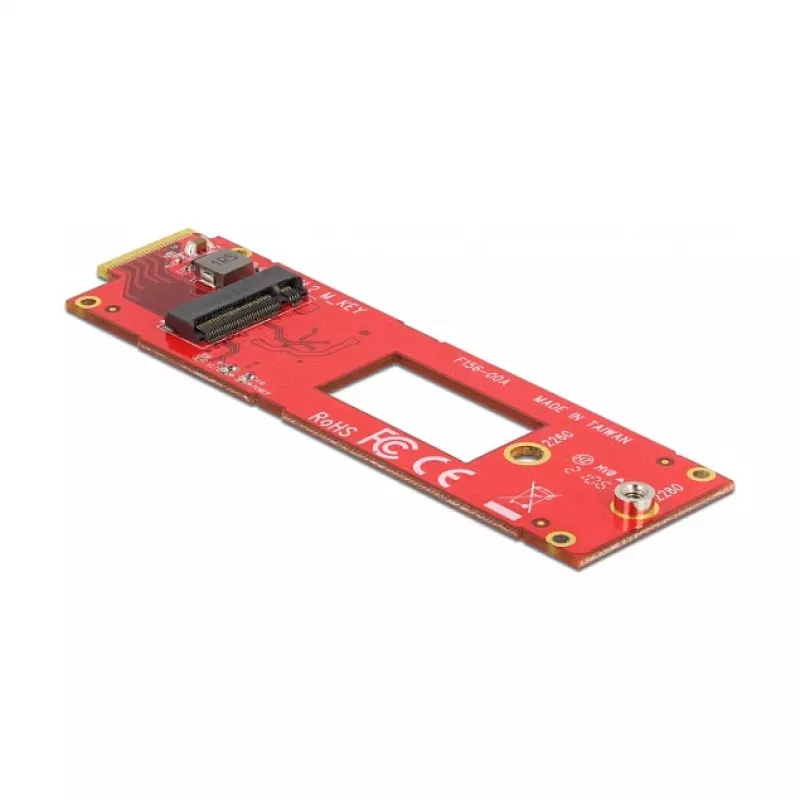

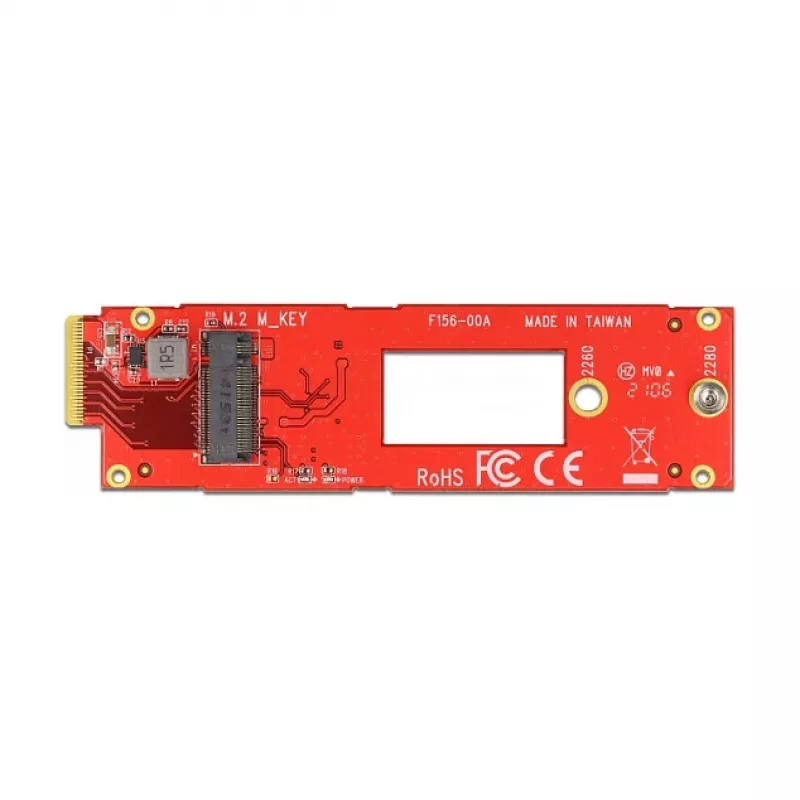

This DeLOCK converter allows installation of an M.2 SSD in 2280 or 2260 form factor into a system via an EDSFF E1.S interface. By using the converter an M.2 NVMe drive can be mounted and recognised as an EDSFF E1.S SSD, making it suitable for use in IoT devices, data center and server environments.

Advantages

The adapter supports NVMe over a PCIe connection and is compatible with M.2 Key M SSDs in 2280 and 2260 sizes. Its compact dimensions (31 mm x 111 mm x 6 mm) and red housing simplify integration into server bays that accept E1.S modules. The product is FCC certified, indicating compliance with relevant electromagnetic and safety standards.

Suitable for

• Converting M.2 NVMe SSDs to EDSFF E1.S format
• Integration into servers and data center storage racks that use E1.S slots
• IoT gateways and embedded systems requiring E1.S form factor drives

Key specifications

• Supported M.2 formats: 2280, 2260
• Interface: EDSFF E1.S (host) to M.2 Key M (SSD)
• Protocol: NVMe over PCIe (supports PCIe 4.0 speeds as per product summary)
• Dimensions: 31 mm x 111 mm x 6 mm
• Colour: Red
• Certifications: FCC

How to use

Install an M.2 Key M NVMe SSD (2280 or 2260) into the converter’s M.2 slot, secure it according to the converter’s mounting points, and insert the converter into the system’s EDSFF E1.S slot. Ensure the host system supports E1.S devices and NVMe over PCIe; verify physical alignment and screw positions before powering on the system. Follow your system or motherboard manual for hot-swap or drive recognition procedures if applicable.

Recommendations

Use the converter in environments that provide adequate cooling for NVMe SSDs and confirm compatibility with your server or chassis E1.S slot. Handle the SSD and adapter with ESD precautions and check firmware and BIOS/UEFI settings to ensure proper NVMe detection.
