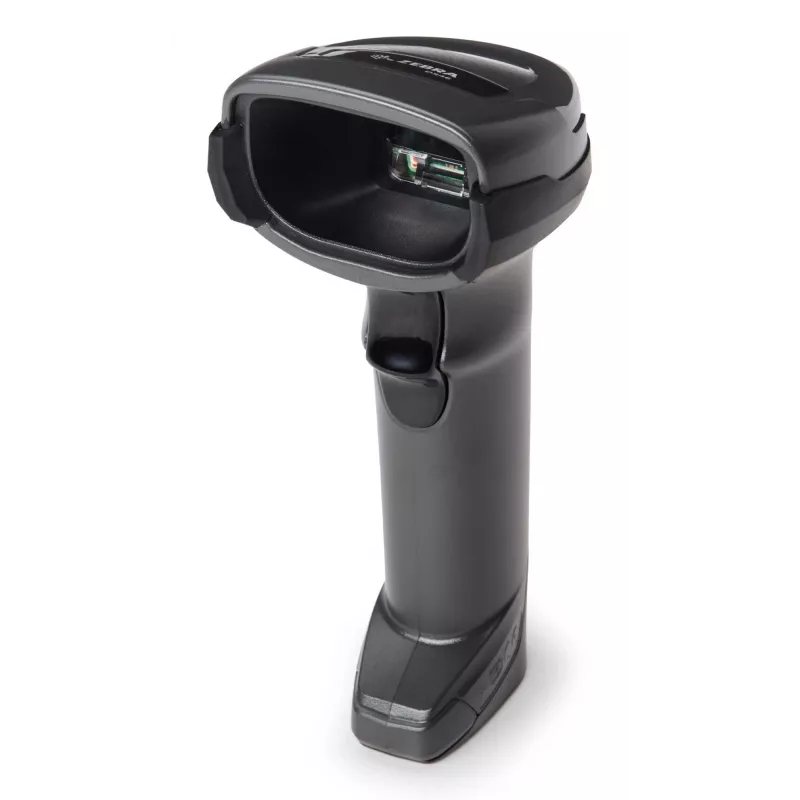

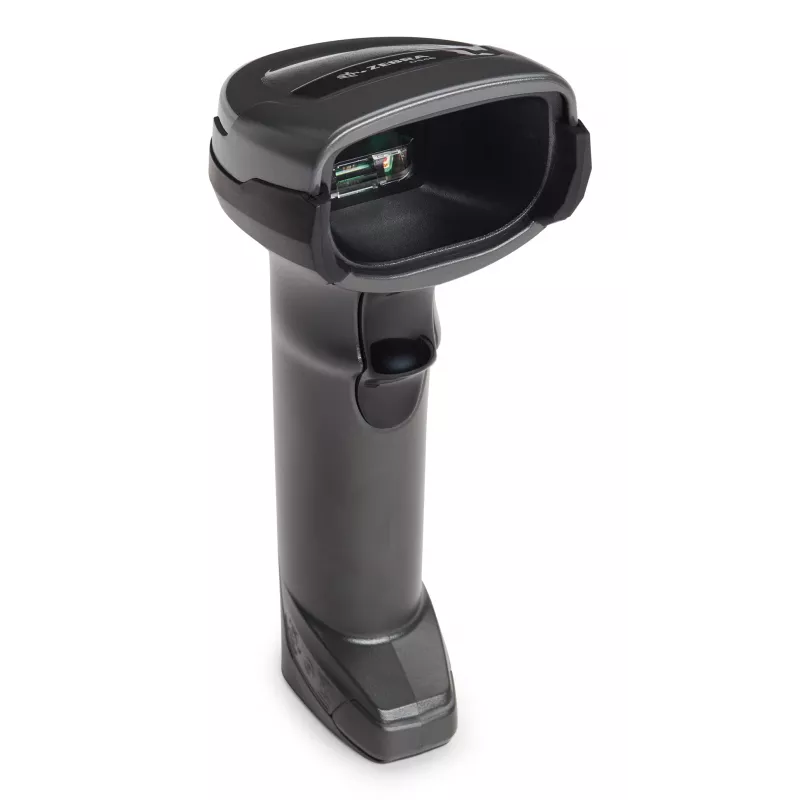

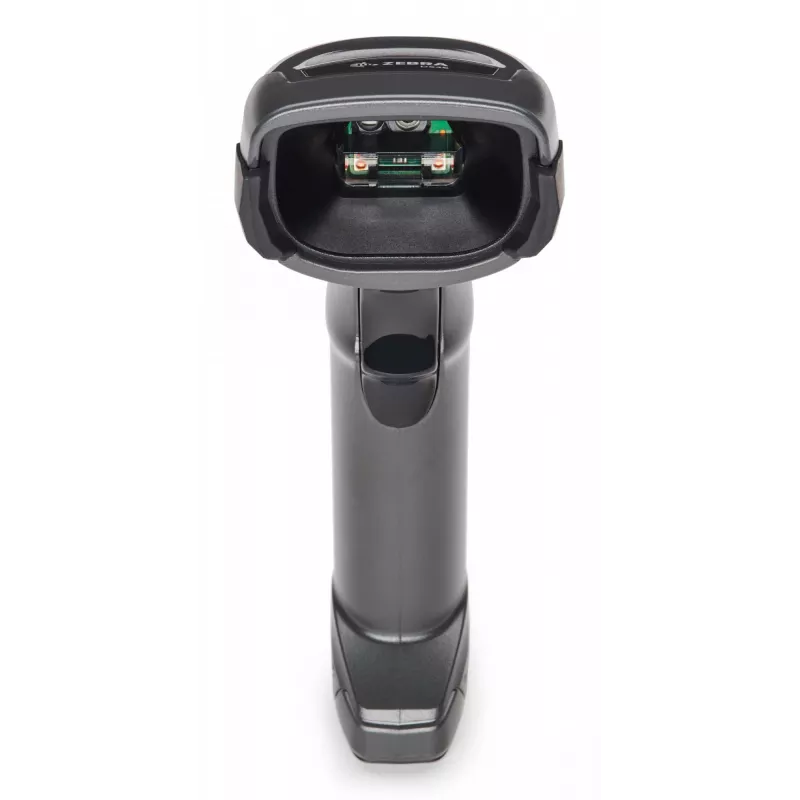

Cradle USB-kit Zebra DS4678-DP zwart standaard EMEA NA

The Zebra DS4678-DP is a black, handheld Bluetooth 2D imager designed for direct part mark (DPM) and label scanning. It connects via Bluetooth Low Energy (BLE) and is supplied with a USB cable, a charging/transmitter cradle, and a removable 2500 mAh battery. The device has IP52 protection for basic dust and water resistance and is intended for standard EMEA and NA deployments.

Advantages

The scanner offers reliable 2D imaging for both printed labels and DPM surfaces, wireless connectivity through Bluetooth (BLE, class 5.2), and a removable battery for quick replacement. The included cradle supports charging and hands-free presentation, while the USB cable enables wired data transfer or charging. The IP52 rating provides limited protection against dust and dripping water, suitable for many indoor and light industrial environments.

Suitable for

• Inventory and asset tracking with DPM or barcode labels
• Point-of-sale and retail environments requiring fast 2D scanning
• Warehousing and light manufacturing where wireless scanning and cradle charging are needed

Key specifications

• Scan engine: 2D imager capable of reading DPM and printed codes
• Wireless: Bluetooth Low Energy (BLE), class 5.2
• Battery: removable 2500 mAh rechargeable battery
• Accessories included: USB cable, charging/transmitter cradle, battery
• Ingress protection: IP52
• Color: black

How to use

Charge the removable battery in the supplied cradle or via the USB cable before first use. Pair the scanner with a host device using Bluetooth (BLE) according to the host's Bluetooth settings. For hands-free operation, place the scanner in the charging/transmitter cradle; for handheld scanning, remove it from the cradle and press the trigger to read barcodes or DPM marks. Replace the battery with a charged spare when needed to minimize downtime.

Recommendations

Use the scanner primarily indoors or in sheltered areas to maintain the IP52 protection level. Keep the imager window clean for optimal read performance on DPM and low-contrast codes. Store and charge batteries at moderate temperatures and follow Zebra's battery handling guidelines to extend battery life.
