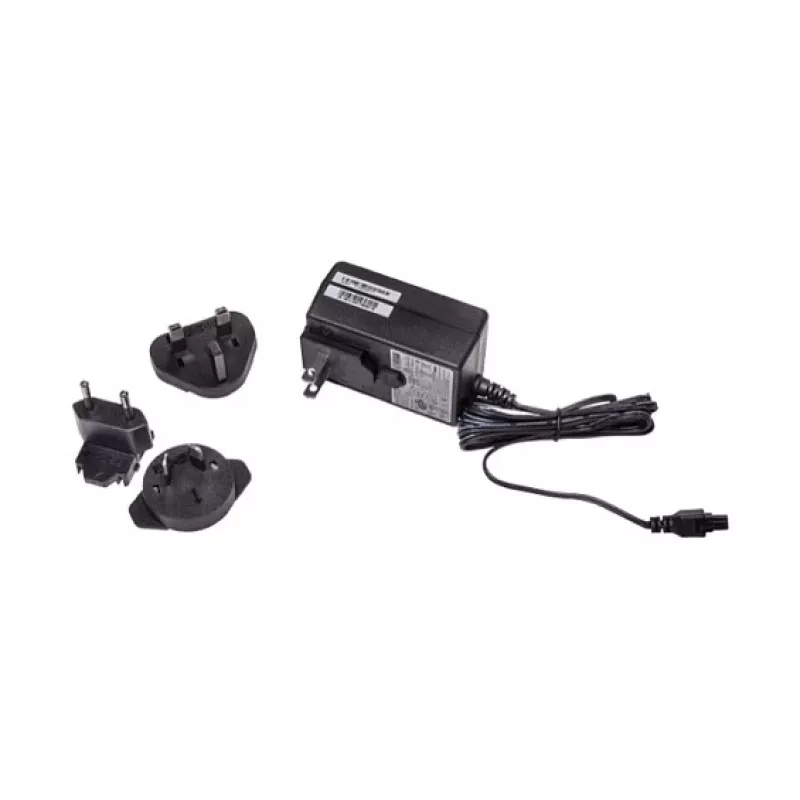

CradlePoint voeding 12V 3A -20°C tot 60°C 2m DC barrel jack

This CradlePoint power supply delivers a stable 12V DC output at 3A (36W) for compatible networking equipment. Designed for reliable operation in demanding environments, it features a wide operating temperature range from -20°C to 60°C and a 2-meter output cable with a standard 5.5mm x 2.1mm DC barrel jack connector. The universal AC input (100-240V) makes it suitable for global use, while DOE Level VI efficiency and comprehensive safety protections ensure energy savings and device safety.

Advantages

Engineered for continuous duty, this adapter provides consistent power with low ripple and noise (<100mVp-p). Its robust ABS plastic housing and built-in protections (over-voltage, over-current, short-circuit) safeguard both the power supply and connected equipment. The compact desktop/wall-mount design saves space, and the 2-meter cable offers flexible placement.

Suitable for

• CradlePoint routers and networking devices requiring 12V DC input
• Industrial or outdoor installations where temperature extremes occur
• Replacement or spare power supply for existing setups

Key specifications

• Output Voltage: 12V DC
• Output Current: 3A
• Output Power: 36W
• Input Voltage: 100-240V AC
• Input Frequency: 50/60 Hz
• Operating Temperature: -20°C to 60°C
• Output Cable Length: 2 meters
• Output Connector: DC Barrel Jack (5.5mm x 2.1mm)
• Input Connector: Integrated AC Wall Plug (2-prong)
• Efficiency: DOE Level VI
• Safety: Over-Voltage, Over-Current, Short-Circuit Protection
• Certifications: CE, FCC, RoHS
• Enclosure: Desktop/Wall-mount Adapter
• Ripple & Noise: <100mVp-p
• Insulation Resistance: >50MΩ
• Dielectric Strength: 3000V AC
• Housing Material: ABS Plastic
• Color: Black
• Humidity Range: 20% to 90% RH (non-condensing)
• Standby Power Consumption: <0.1W

Recommendations

Ensure your device's input voltage and connector type match this adapter. For optimal performance, use in a well-ventilated area away from moisture. This power supply is a direct replacement for original CradlePoint units.
