Creality X-as eindschakelaar voor 3D-printer 2101030265

Mechanical limit switch for precise X-axis homing on Creality 3D printers. Momentary action with normally closed contact and lever actuator ensures reliable endstop detection.

Overview

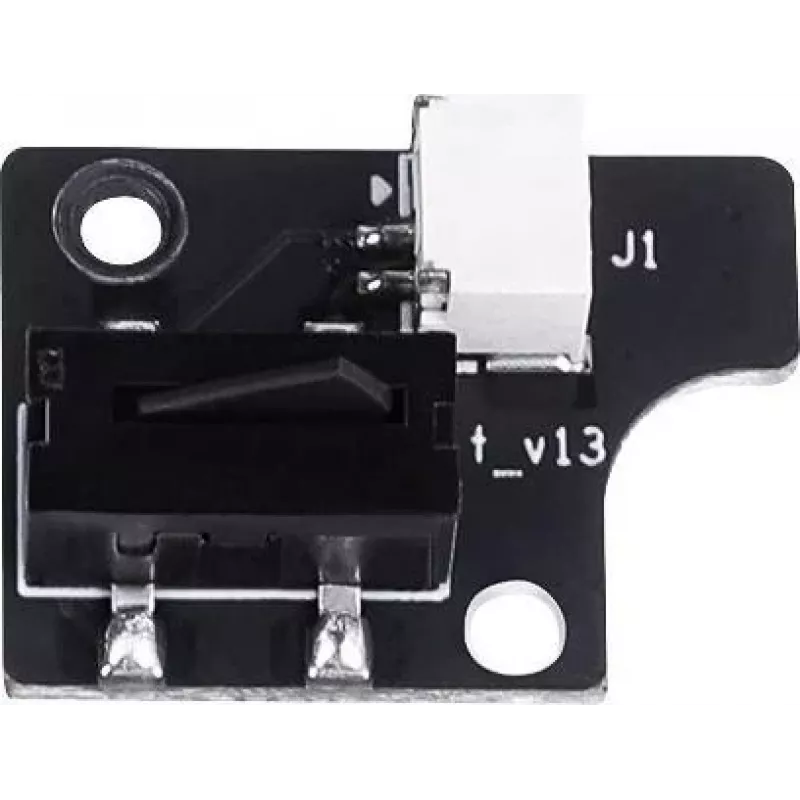

The Creality X-Axis Limit Switch is a mechanical endstop designed for use in Creality 3D printers. It provides accurate homing of the X-axis, preventing the print head from moving beyond the build area. The switch features a lever arm actuator and a normally closed contact configuration, compatible with standard 3-pin JST-XH connectors.

What stands out

• Momentary switch action with normally closed (NC) contact
• Lever arm actuator for reliable mechanical triggering
• Rated for 5V DC and up to 1A current
• Long mechanical life of 10,000,000 cycles
• Compact ABS housing with screw mounting

Technical details

• Product Type: Mechanical Limit Switch
• Axis Designation: X-Axis
• Brand Compatibility: Creality
• Application: 3D Printers
• Switch Action: Momentary
• Contact Configuration: Normally Closed (NC)
• Operating Voltage: 5V DC
• Current Rating: 1A (Max)
• Connector Type: 3-Pin (JST-XH compatible)
• Actuator Type: Lever Arm
• Mounting Method: Screw Mount
• Housing Material: ABS Plastic
• Lever Material: Metal
• Electrical Life: 1,000,000 cycles
• Mechanical Life: 10,000,000 cycles
• Operating Temperature: -25°C to +85°C
• Color: Black
• Manufacturer Part Number: 2101030265
• EAN: 6977726811408
• Function: Endstop detection for precise axis homing

Our verdict

A durable and precise limit switch, essential for maintaining accurate X-axis homing on your Creality 3D printer.
