Crimpcontacten voor D-Sub HD bus DeLOCK 66733

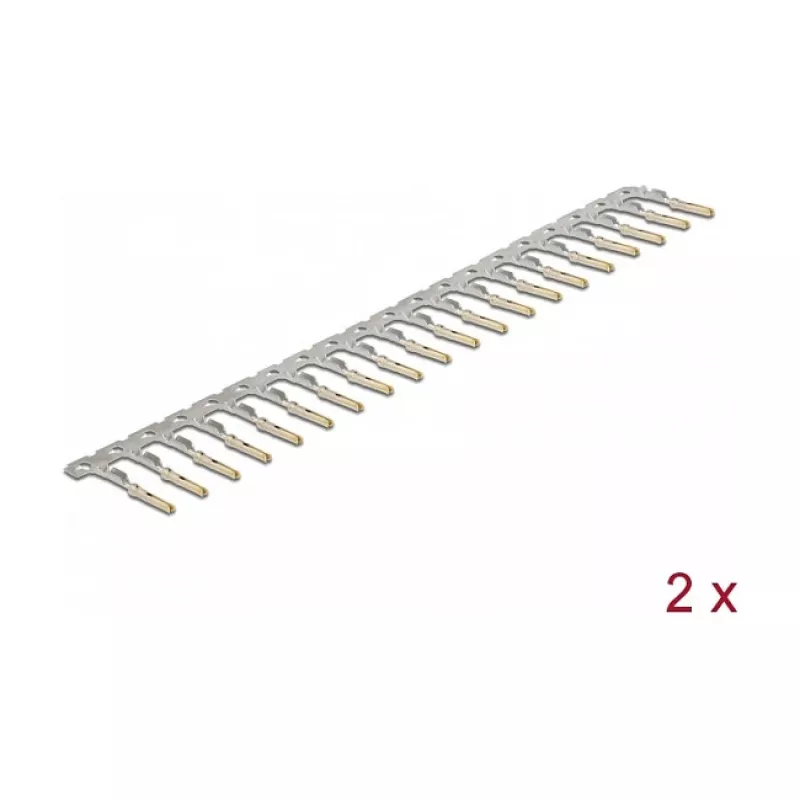

These crimp contacts by DELOCK are designed for use with D-Sub HD (High Density) female crimp connectors. Supplied as a pack of 40 silver-coloured contacts, they are compatible with AWG 20 and AWG 24 wires and are intended for creating or repairing custom cable assemblies.

Advantages

The contacts feature gold-plated contact surfaces to improve electrical conductivity and resist wear. Their silver-coloured body and standard crimp design allow straightforward installation with appropriate crimping tools. Packaged in a polybag, the set is convenient to store and handle during production or repair work.

Suitable for

• Crimping D-Sub HD female connectors
• Custom cable assemblies and harness repair
• Electronics and industrial connector maintenance
• Use with AWG 20 and AWG 24 wires

Key specifications

• Brand: DELOCK
• Model / MPN: 66733
• EAN: 4043619667338
• Quantity: 40 pieces
• Compatible wire sizes: AWG 20 / AWG 24
• Connector type: D-Sub HD (female) crimp contacts
• Contact plating: gold-plated contact surfaces
• Product colour: Silver
• Packaging: polybag

How to use

Strip the insulation from the wire according to the connector manufacturer's recommended length, insert the conductor into the crimp contact, and use an appropriate crimping tool for D-Sub crimp terminals to make a secure mechanical and electrical connection. After crimping, verify the contact retention and continuity before inserting the contacts into the D-Sub HD female housing.

Recommendations

Use the specified AWG 20 or AWG 24 wire sizes and a compatible crimping tool for D-Sub HD contacts. Inspect each crimp visually and with a pull test where applicable. Store the contacts in a dry environment and avoid excessive force when inserting into the connector housing to prevent contact damage.
