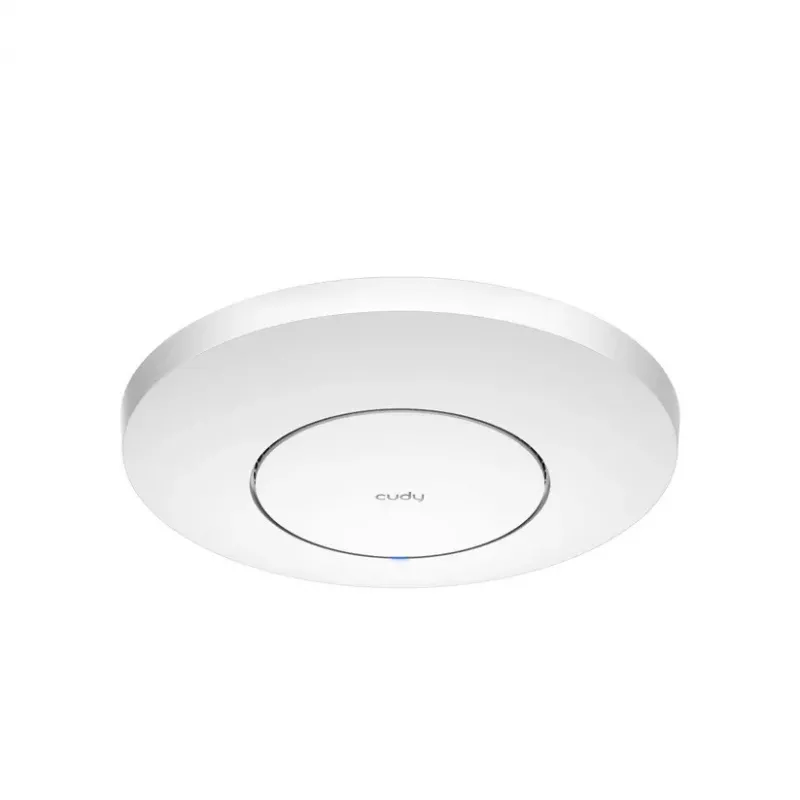

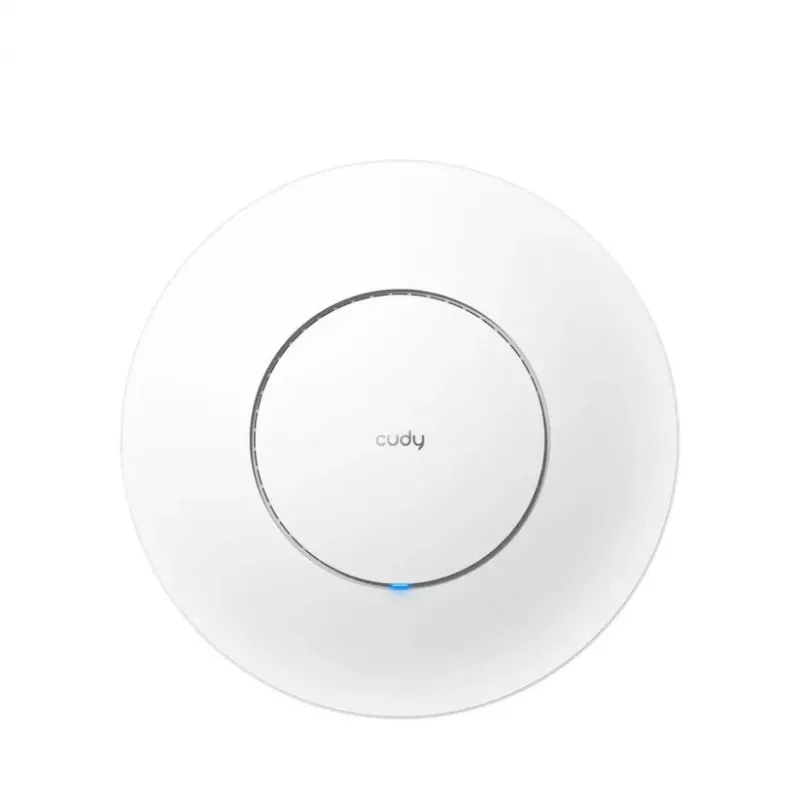

CUDY AP1200 AC1200 dual-band access point met PoE

The CUDY AP1200 is a high-performance AC1200 dual-band access point designed for reliable wireless coverage in small to medium-sized businesses, hotels, and homes. With support for 802.11ac Wi-Fi 5, it delivers combined speeds of up to 1200 Mbps (867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz). The AP1200 features Power over Ethernet (PoE) for flexible installation without the need for a separate power outlet, making it ideal for ceiling or wall mounting.

Advantages

Dual-band connectivity reduces interference and improves throughput. MU-MIMO and beamforming technologies enhance efficiency for multiple devices. The device supports multiple operating modes including Access Point, Repeater, WISP, Router, and Mesh, providing versatility for various network setups. PoE support simplifies deployment and reduces cable clutter.

Suitable for

• Hotels and hospitality venues requiring seamless guest Wi-Fi
• Office environments needing reliable wireless coverage
• Home users expanding their network with mesh or repeater modes
• Outdoor or hard-to-reach locations where PoE simplifies installation

Key specifications

• Wi-Fi Standard: IEEE 802.11ac/n/g/b/a (Wi-Fi 5)
• Speed: AC1200 (867 Mbps 5 GHz + 300 Mbps 2.4 GHz)
• Ethernet: 1x Gigabit LAN/PoE port
• PoE: 802.3af/at
• Antennas: 4x internal omni-directional
• Security: WPA3, WPA2, WPA
• Management: Web UI, Cudy Cloud App

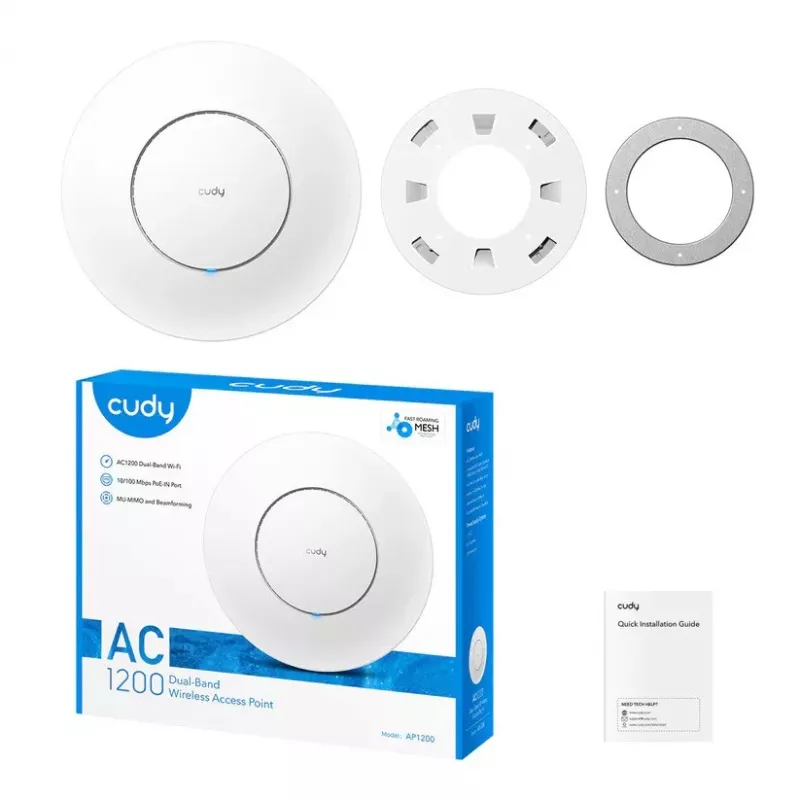

• Mounting: Wall/Ceiling mount included

Recommendations

For optimal performance, use with a PoE switch or injector. The AP1200 is easy to set up via the Cudy Cloud App and supports VLAN tagging for network segmentation.
