Cudy IR02 Industrial 4G LTE Cat 4-router, dual SIM, 2x ethernet, DIN-railmontage, EU IR02_EU

With 4G LTE Cat 4 speeds up to 150 Mbps and dual SIM failover, the Cudy IR02 keeps industrial networks online even when one carrier fails. Its rugged metal housing and wide -20°C to 70°C operating range suit harsh environments.

Overview

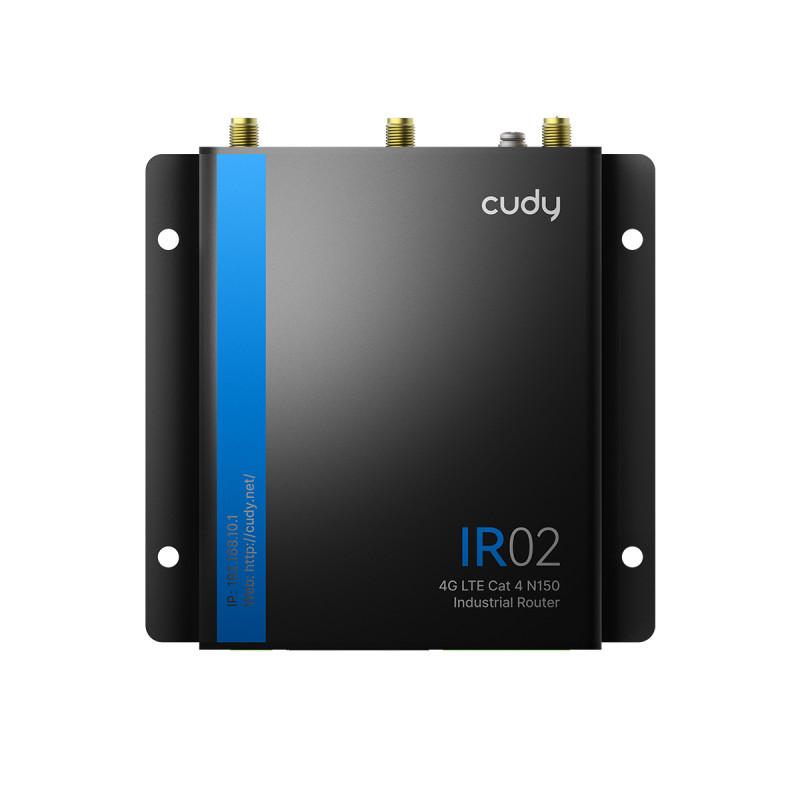

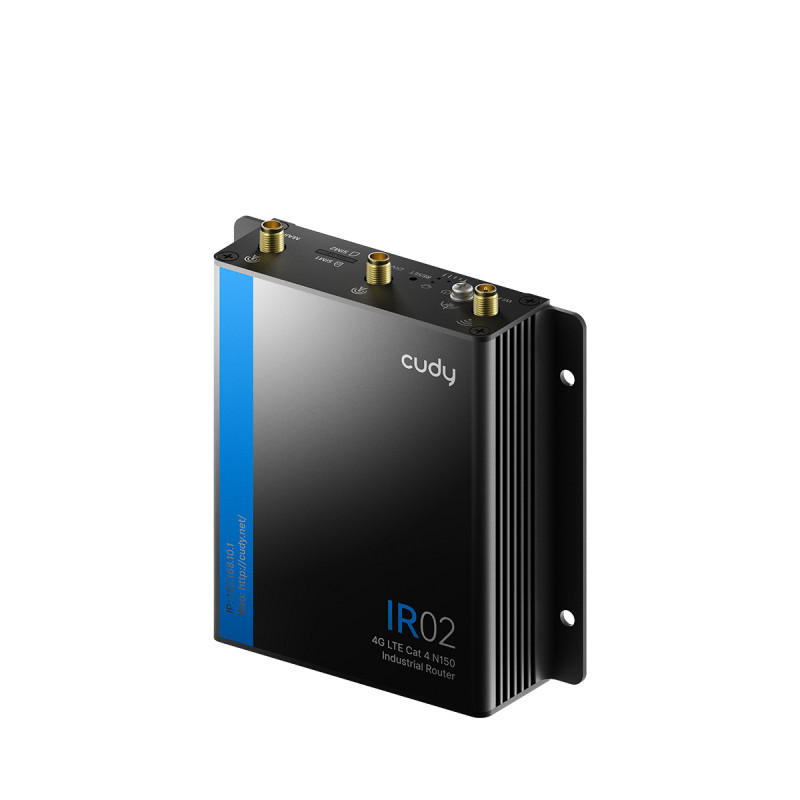

The Cudy IR02 is an industrial cellular router built for M2M and IoT applications. It supports 4G LTE on European bands B1/B3/B5/B7/B8/B20/B28, plus WCDMA fallback, ensuring broad coverage. Two Nano SIM slots provide automatic failover for uninterrupted connectivity. Wi-Fi 4 (802.11b/g/n) on 2.4 GHz offers up to 300 Mbps, and two 10/100 Mbps Ethernet ports connect wired devices. Power is supplied via a terminal block accepting DC 9-36V, and the unit mounts on a DIN rail or wall.

What stands out

• Dual SIM failover for reliable connectivity
• Wide operating temperature range: -20°C to 70°C
• Flexible power input: DC 9-36V terminal block
• Industrial protocols: Modbus TCP/RTU, VRRP, watchdog
• VPN support: OpenVPN, IPsec, L2TP, PPTP, GRE, DMVPN

Technical details

• 4G LTE Cat 4: up to 150 Mbps down, 50 Mbps up
• Wi-Fi: 802.11b/g/n, 2.4 GHz, up to 300 Mbps

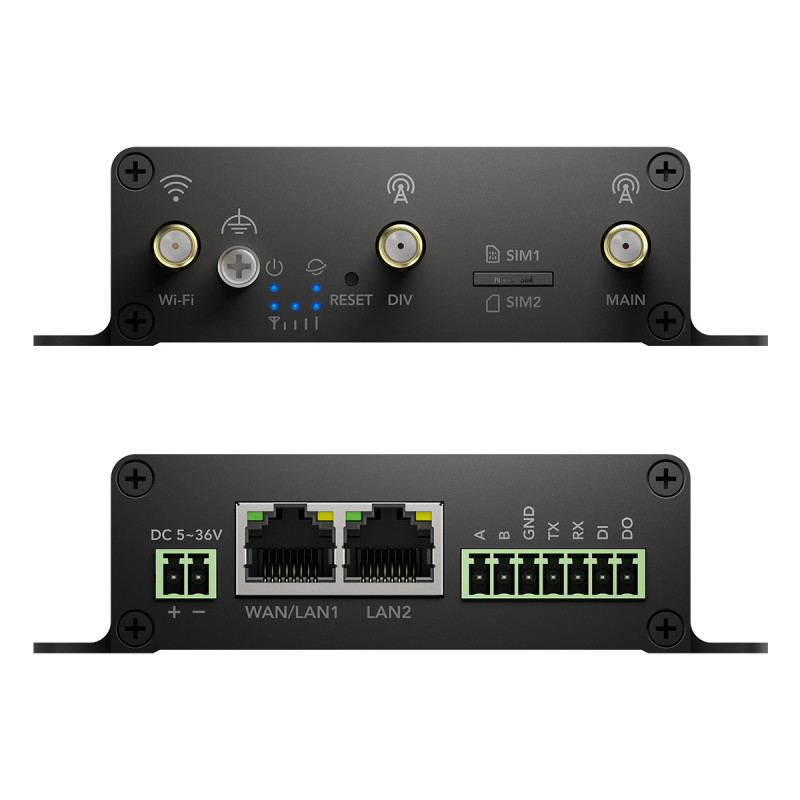

• Ethernet: 2x 10/100 Mbps (1x WAN/LAN, 1x LAN)
• SIM: 2x Nano SIM
• Antennas: 2x detachable 4G LTE, 2x detachable Wi-Fi
• Operating humidity: 5% to 95% non-condensing

Our verdict

The Cudy IR02 is a reliable choice for industrial connectivity, offering dual SIM redundancy, rugged design, and essential networking features in a compact form factor.
