CyberPower PDU81405 Power Distribution Unit (PDU) 24 AC-uitgangen 0U zwart

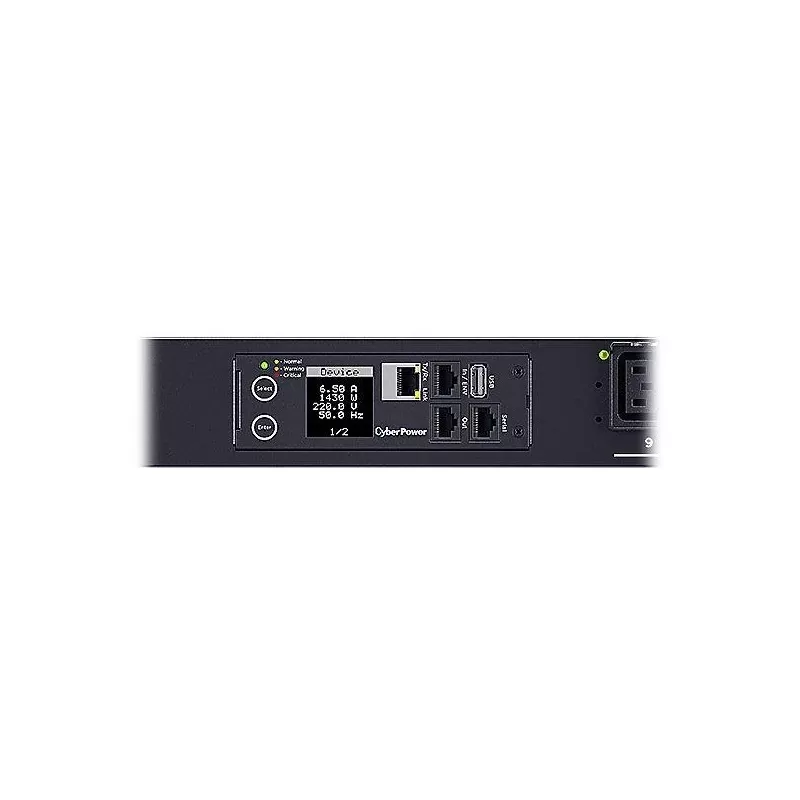

CyberPower PDU81405 is a network-grade, single-phase metered and monitored power distribution unit with switched outlet control, designed for data centers and enterprise server rooms. The 0U rack-mount PDU provides 24 AC outlets (C13/C19 compatible), supports a nominal input voltage of 200–240 V and a maximum current of 16 A, and includes a color-configurable, rotatable LCD for local status and metering. The unit supports remote monitoring and control over the network, event logging, and firmware updates via USB. An optional environmental sensor can be connected to the RJ45 port for real-time temperature and humidity monitoring.

Advantages

The PDU81405 combines metering, monitoring and switched outlet control in a single 0U form factor, enabling per-outlet on/off control for remote reboot and scheduled power cycles. A daisy-chain feature permits multiple PDUs to be managed under one IP address. Network connectivity works with PowerPanel management software and standard web/SNMP interfaces for real-time monitoring, event logging and notifications by email, SMS or SNMP trap. The hot-swappable Ethernet module and USB port simplify firmware upgrades and serviceability, while the configurable LCD helps quickly identify and categorize connected equipment.

Suitable for

• Data centers and server rooms
• Network closets and edge computing racks
• Enterprise IT infrastructures requiring per-outlet control and monitoring
• Environments where temperature and humidity monitoring is needed (with optional sensor)

Key specifications

• Model: CyberPower PDU81405
• PDU type: Switched, Monitored, Metered

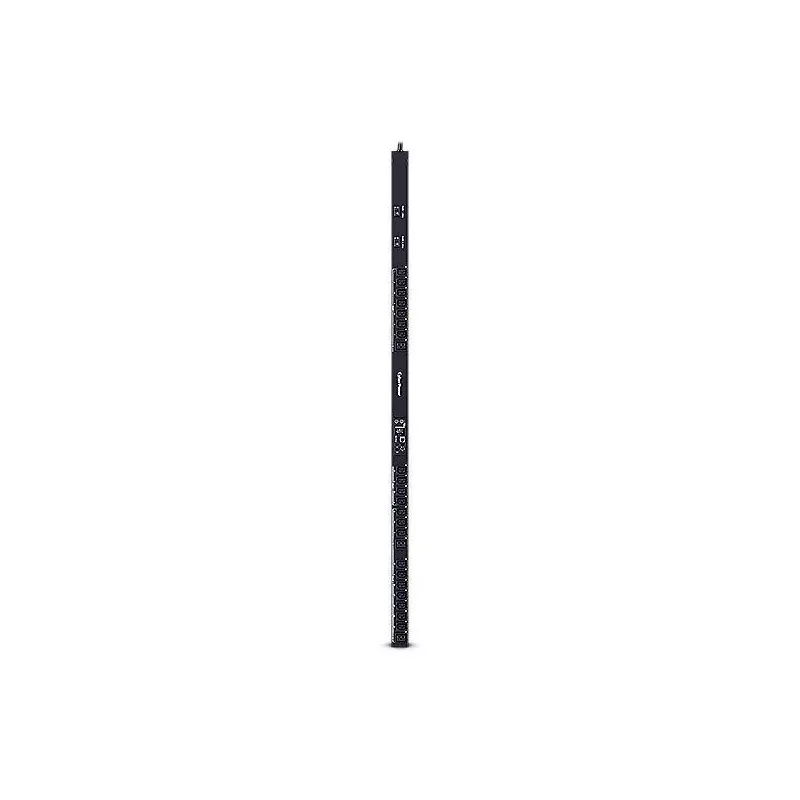

• Form factor: 0U, rack-mount
• AC outlets: 24 (C13 / C19 compatible)
• Nominal input voltage: 200–240 V
• Maximum current: 16 A
• Product colour: Black
• Weight: 7 kg

How to use

Install the PDU81405 vertically in a compatible rack space using the 0U mounting method according to your rack supplier’s instructions. Connect the input power to a suitable 200–240 V, 16 A supply and distribute load devices to the C13/C19 outlets as required. Configure network settings through the web interface or PowerPanel software, update firmware via the USB port if needed, and connect an optional ENVIROSENSOR to the RJ45 port for environmental monitoring. Use the LCD to view local metering and status, and manage individual outlets remotely for reboots or scheduled power actions.

Recommendations

To ensure reliable operation, keep the total connected load within the 16 A limit, follow rack installation best practices for ventilation and cable management, and configure event notifications so that administrators receive immediate alerts for power anomalies. Use the daisy-chain function to simplify management of multiple PDUs and attach the optional environmental sensor to monitor temperature and humidity in critical areas.
