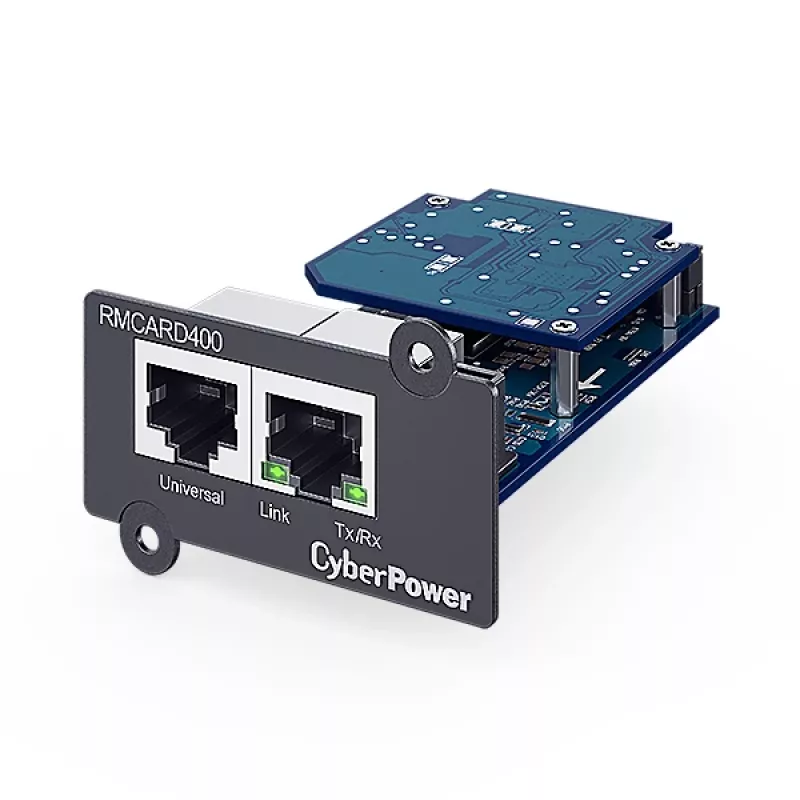

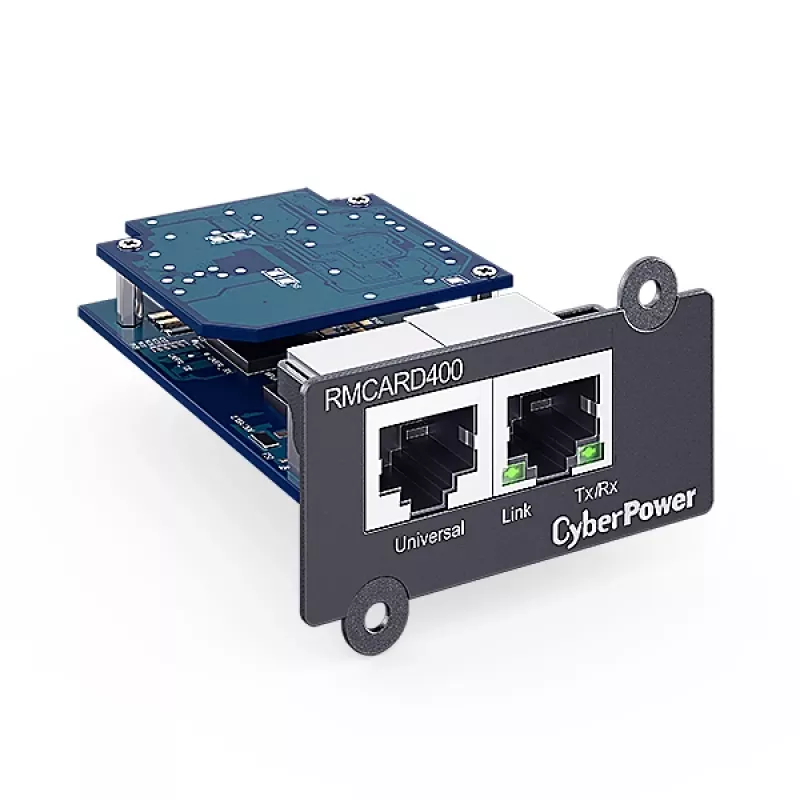

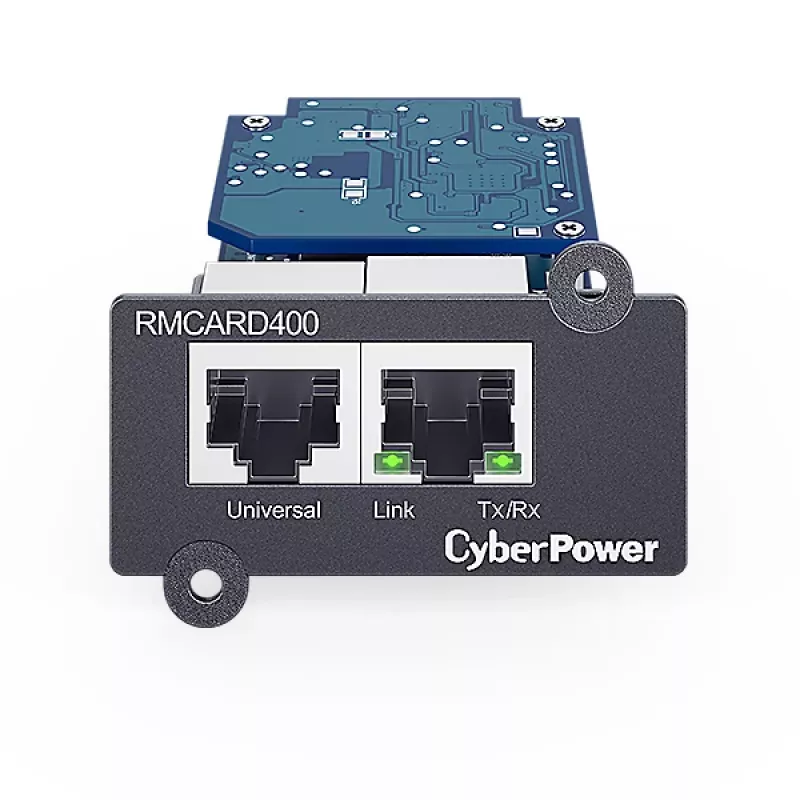

CyberPower RMCARD400 netwerkkaart intern Ethernet 1000 Mbit/s

The CyberPower RMCARD400 Gigabit SNMP card is a full-featured internal network management card designed to remotely manage, monitor and control select CyberPower UPS systems over a 1000 Mbit/s Ethernet connection. It supports management via a standard web browser, command line interface (CLI), SNMP or a network management system (NMS). The card enables scheduled UPS shutdown, startup and reboot, event logging and status recording, and automatic notifications through email, SMS, SNMP traps or Syslog. An optional environmental sensor (ENVIROSENSOR) can be connected to monitor ambient temperature and humidity in server rooms or IT closets. PowerPanel® Business Edition Client software works with the RMCARD400 to initiate automatic system shutdowns to protect servers and workstations from data loss during power failures.

Advantages

The RMCARD400 provides Gigabit Ethernet connectivity (1000 Mbit/s) for reliable remote access and fast data transfer. It offers multiple management interfaces (web, CLI, SNMP, NMS) and comprehensive event handling including scheduling and logging. The card supports automatic notifications and integrates with PowerPanel® Business Edition for controlled shutdowns. Optional environmental monitoring via ENVIROSENSOR adds temperature and humidity oversight for critical environments.

Suitable for

• Enterprise server rooms and data centers requiring remote UPS management
• IT closets and network cabinets where environmental monitoring is needed
• Environments that require scheduled UPS actions and automated alerts
• Systems using PowerPanel® Business Edition for automated shutdown

Key specifications

• Model: RMCARD400
• Interface: Internal Ethernet (Gigabit) — 1000 Mbit/s
• Management protocols: Web GUI, CLI, SNMP, NMS
• Environmental sensor: Optional ENVIROSENSOR for temperature and humidity
• Notifications: Email, SMS, SNMP traps, Syslog
• Software: PowerPanel® Business Edition Client compatible
• Weight: 0.04 kg
• Warranty: 3 years

How to use

Install the RMCARD400 into the compatible CyberPower UPS expansion slot following the manufacturer’s installation guide. Connect the card to the network via the Gigabit Ethernet port and configure IP/network settings through the web interface or CLI. Integrate with SNMP or an NMS if required, and install PowerPanel® Business Edition Client on protected servers to enable automatic shutdown sequences. If environmental monitoring is needed, attach the ENVIROSENSOR and configure temperature and humidity thresholds in the card’s settings.

Recommendations

Configure notification settings (email/SMS/SNMP/Syslog) and schedule regular event log reviews. Use PowerPanel® Business Edition Client on all critical servers to ensure orderly shutdown during power events, and place the optional ENVIROSENSOR in representative locations to obtain accurate ambient readings.
