D-Sub15 stekker naar rij klem met behuizing DeLOCK 66566

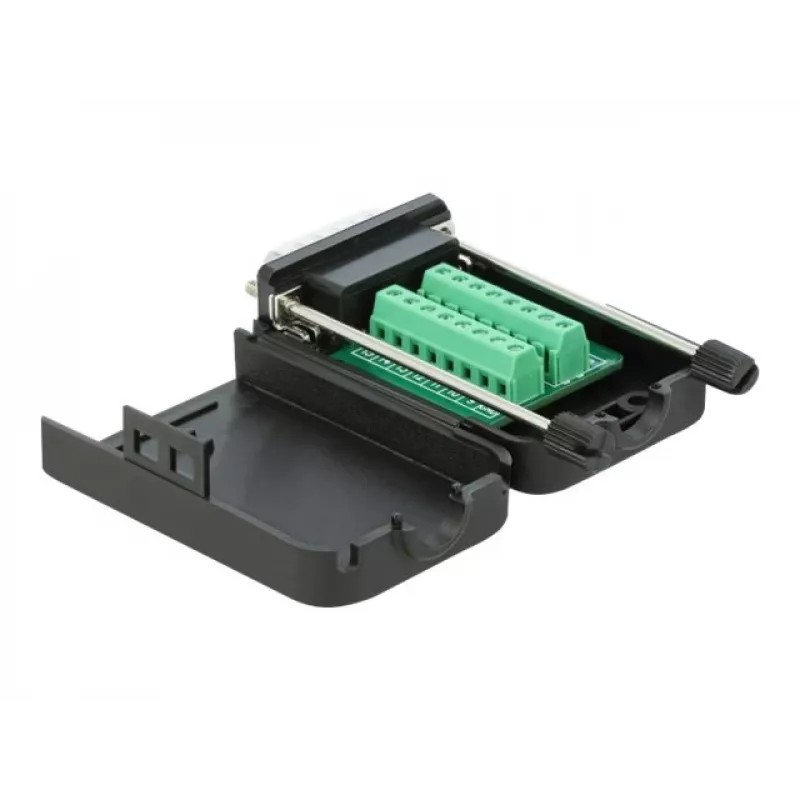

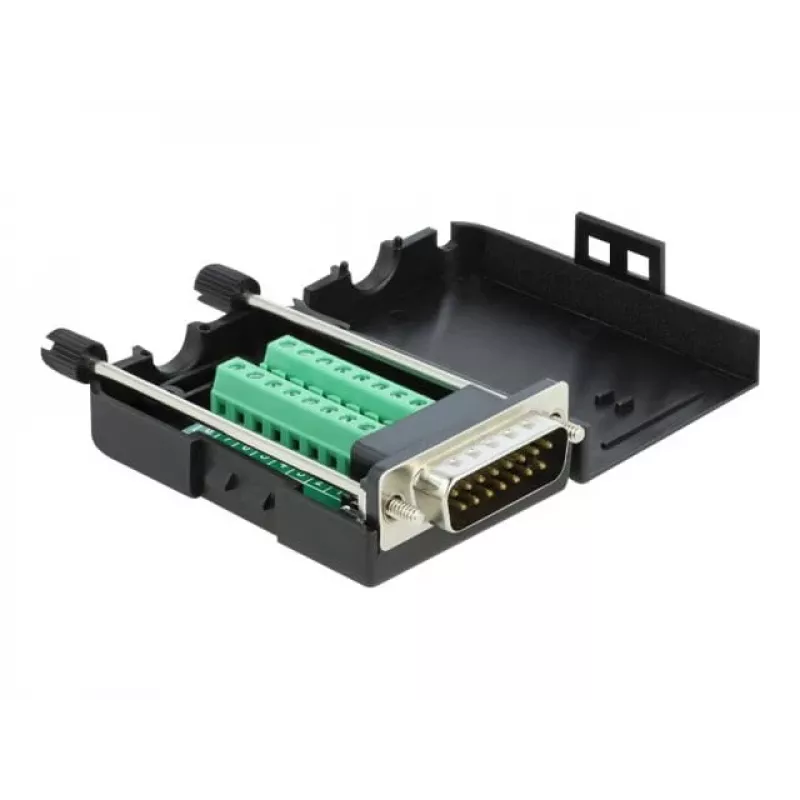

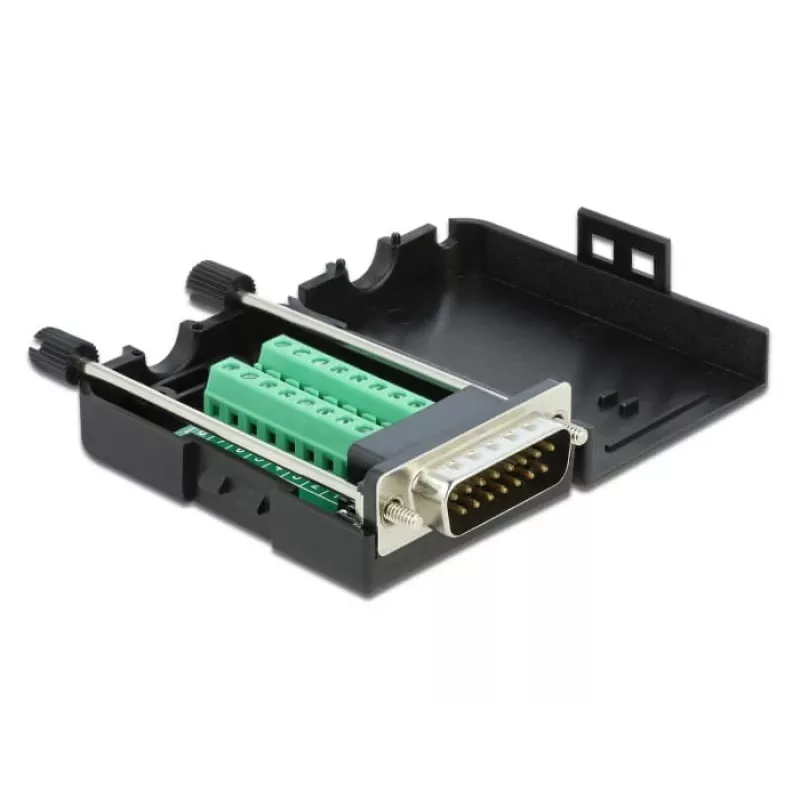

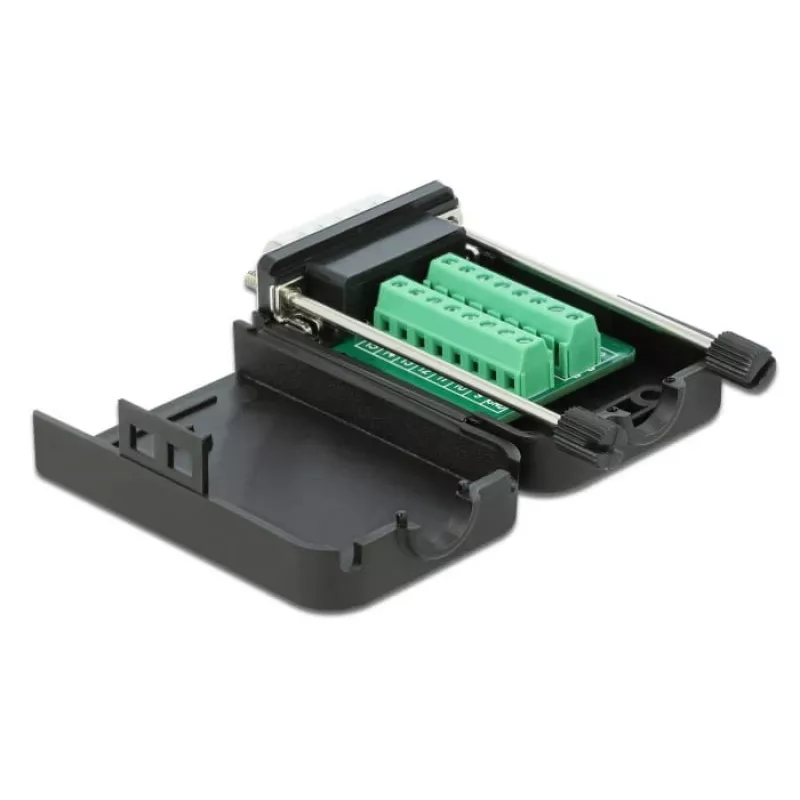

The DeLOCK D-Sub15 Male to Terminal Block with Enclosure (model 66566) provides a simple way to connect bare wires to a 15-pin Sub-D serial interface. One end offers a serial Sub-D15 male connector while the other end provides a 16-pin terminal block housed in a black plastic enclosure that protects the PCB from dirt and mechanical damage.

Advantages

The enclosure offers physical protection for the circuit board and the screw-on strain relief secures the cable to prevent pull-out. The combination of a Sub-D15 male connector and a 16-pin terminal block enables straightforward, tool-accessible wiring without the need to solder directly to the connector.

Suitable for

• Industrial control equipment requiring a D-Sub serial connection
• Prototyping and custom wiring tasks
• Hobbyist projects such as model railway electronics
• Field installations where a protected terminal connection is needed

Key specifications

• Connector 1: serial Sub-D15 (male)
• Connector 2: 16-pin terminal block
• Product colour: Black
• Manufacturer: DELOCK, MPN 66566, EAN 4043619665662

How to use

Insert the bare wires into the appropriate terminal block positions and tighten the terminal screws to secure each conductor. Plug the Sub-D15 male connector into the corresponding female port. Fit the cable through the enclosure opening and fasten the screw-on strain relief to secure the cable and avoid tension on the terminals.

Recommendations

For reliable connections, strip wire insulation to the correct length for the terminal holes and tighten screws to the manufacturer's recommended torque. Avoid exposure to heavy moisture and extreme mechanical stress; use the enclosure to protect the PCB and connectors.
