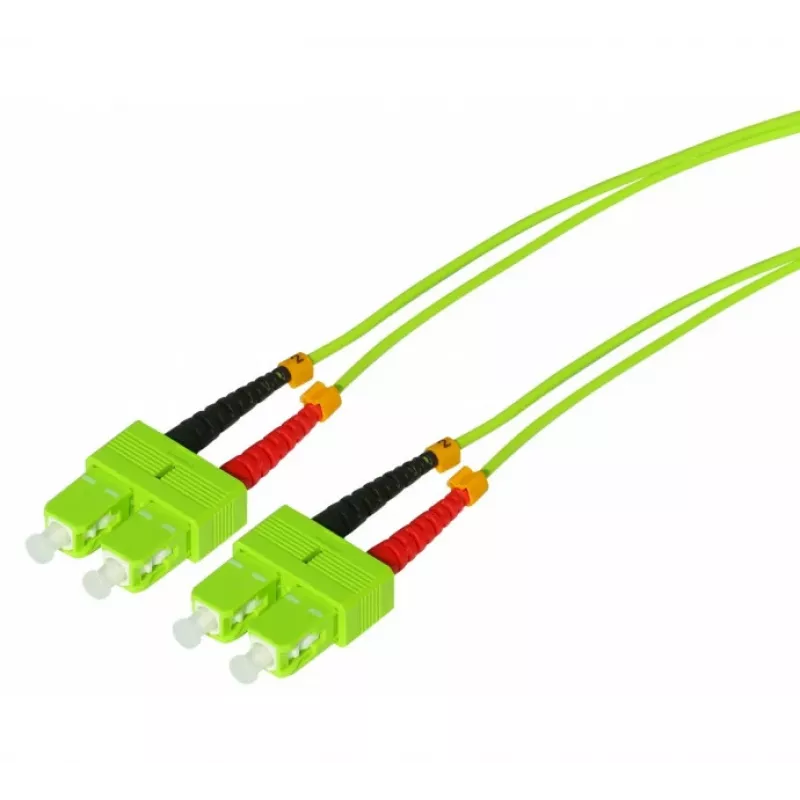

Tecline HD glasvezel-patchkabel OM5, SC Duplex naar SC Duplex, limoengroen, 5 m 796SS05

Modern data centers and high-speed networks demand cabling that can handle 40G and 100G Ethernet without signal degradation. The Tecline HD OM5 patch cable meets that need with wideband multimode fiber and precision SC duplex connectors, delivering reliable performance for short-reach links.

Who is it for

Network engineers and IT professionals deploying high-density fiber infrastructure in data centers, enterprise backbones, or campus networks. It suits anyone upgrading to 40/100G multimode connectivity while keeping a standard SC duplex interface.

Main features

• OM5 wideband multimode fiber (50/125 µm) supports SWDM4 wavelengths from 850 nm to 953 nm
• SC duplex to SC duplex connectors with A-B polarity for consistent link orientation
• Lime green jacket for instant OM5 identification per industry color coding
• 5.0 m length ideal for patching between panels, switches, and servers in racks
• Low insertion loss (< 0.3 dB) and high return loss (> 30 dB) maintain signal integrity

Specifications

• Fiber type: Multimode OM5 (50/125 µm)
• Connectors: SC Duplex to SC Duplex
• Length: 5.0 m
• Jacket color: Lime green
• Number of fibers: 2
• Polarity: A-B
• Insertion loss: < 0.3 dB
• Return loss: > 30 dB
• Supported wavelengths: 850 nm, 953 nm, 1300 nm
• Bandwidth at 850 nm: 4700 MHz·km
• Bandwidth at 953 nm: 2470 MHz·km
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Standards: TIA/EIA-492AAAE, IEC 60793-2-10 Type A1a.4

Tips

OM5 is backwards compatible with OM3 and OM4 systems, so this cable can be used in existing multimode installations. For 100G SWDM4 links, keep total channel length within the OM5 reach specification.
