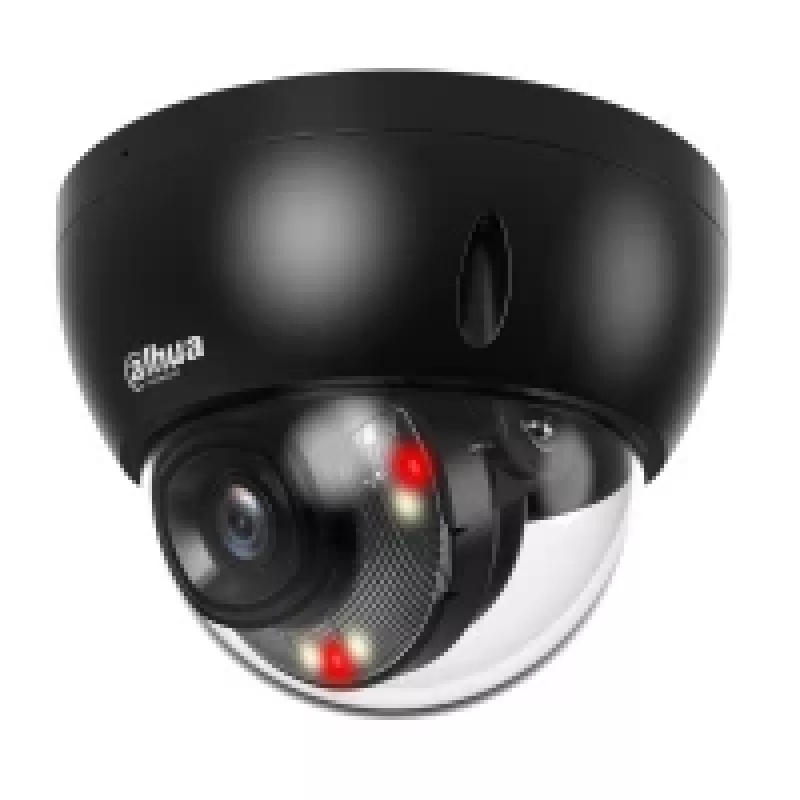

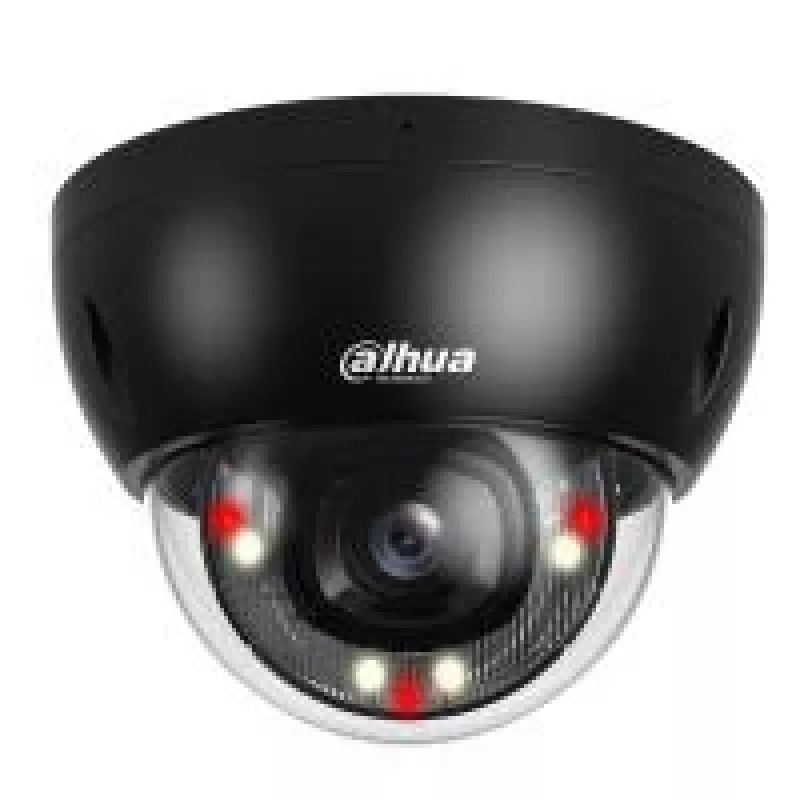

DAHUA 4MP IR dome-netwerkcamera IPC-HDBW2449E-S-IL-0280B-B

The DAHUA IPC-HDBW2449E-S-IL-0280B-B is a high-performance 4MP IR dome network camera designed for professional surveillance. Featuring a 1/2.9" CMOS sensor, it delivers crisp 2688x1520 resolution at 25/30 fps. Equipped with Smart Dual Illuminators (IR and warm light) providing up to 30m distance, it ensures clear imaging day and night. The camera supports H.265/H.264 compression, 120dB True WDR, and AI-based SMD 4.0 with perimeter protection. Its robust IP67 and IK10 rating make it suitable for outdoor use in harsh environments.

Advantages

This camera offers superior image quality with advanced AI analytics, reducing false alarms. The dual illuminators adapt to lighting conditions, while the compact dome design fits discreetly in various settings. Easy installation with PoE support and a built-in microphone for audio recording.

Suitable for

• Retail stores and shopping centers
• Office buildings and banks
• Residential complexes and parking lots
• Industrial facilities and warehouses

Key specifications

• Image Sensor: 1/2.9" 4MP Progressive CMOS
• Max Resolution: 2688 (H) × 1520 (V)
• Focal Length: 2.8 mm
• Field of View: H: 95°; V: 52°; D: 114°
• Illumination: Smart Dual (IR & Warm Light) up to 30m
• Video Compression: H.265 / H.264 / MJPEG
• Frame Rate: 25/30 fps @ 4MP
• WDR: 120 dB True WDR
• Day/Night: Auto (ICR) / Color / B/W
• Audio: Built-in Microphone
• Storage: Micro SD card slot up to 256 GB
• Network: RJ-45 10/100Base-T
• Power: 12V DC / PoE (802.3af), max 6.5W
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Operating Temperature: -40°C to +60°C
• AI Features: SMD 4.0, Perimeter Protection

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the micro SD card is high endurance for continuous recording. The camera is compatible with DAHUA NVRs and third-party systems via ONVIF.
