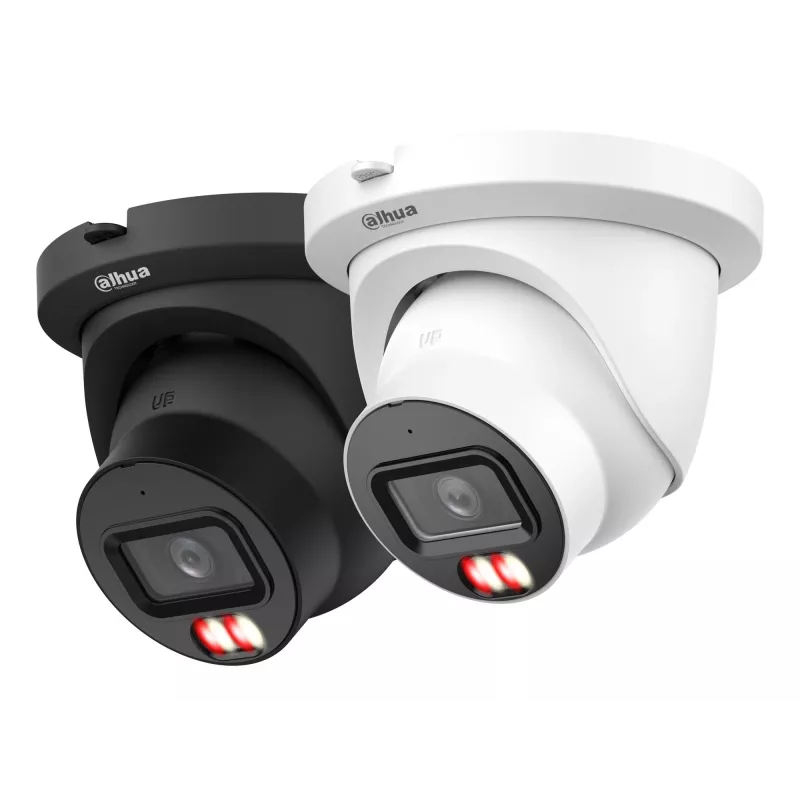

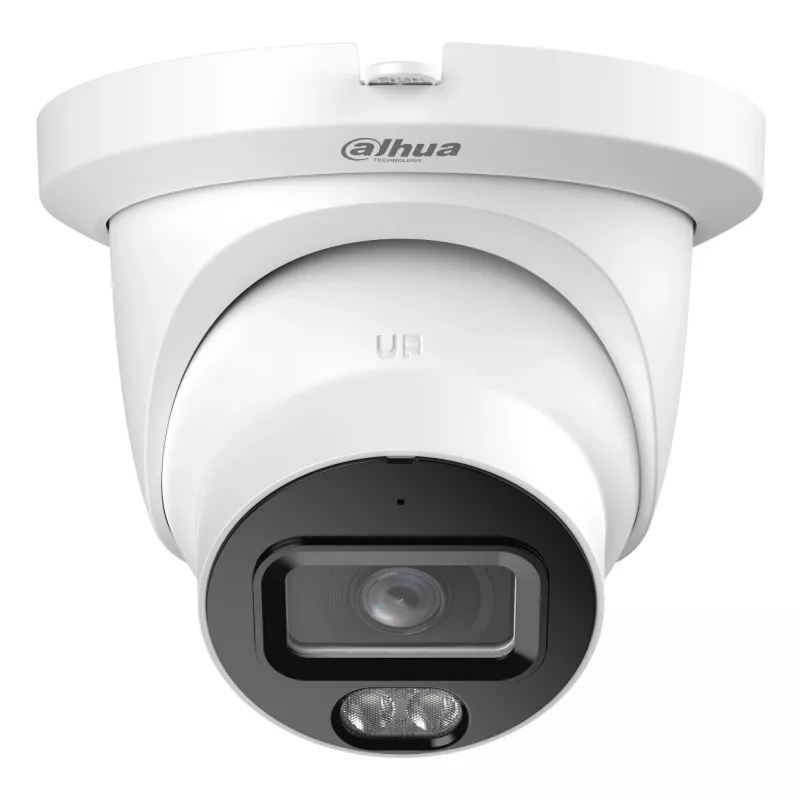

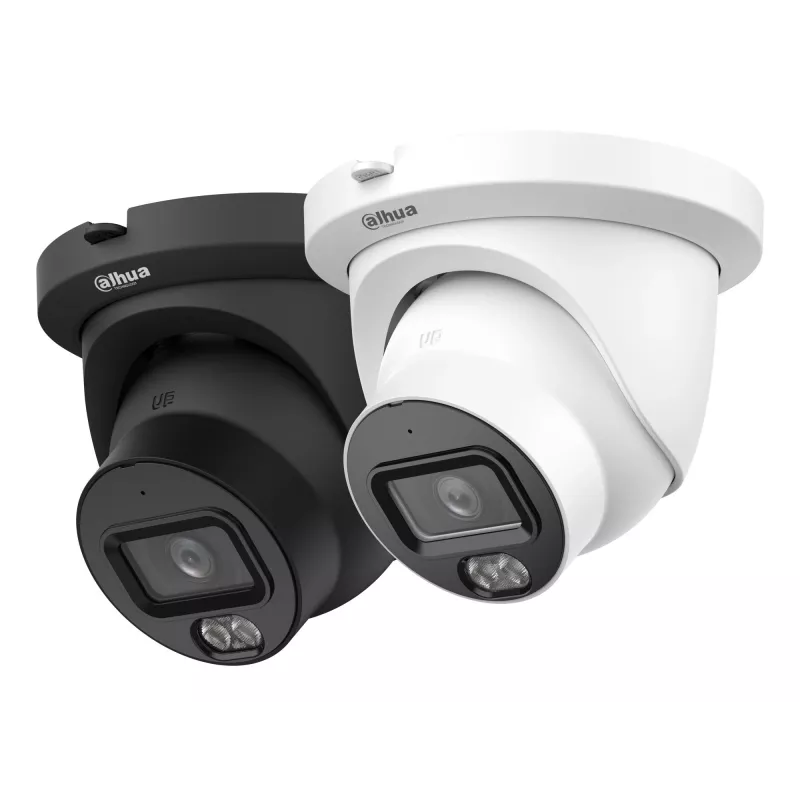

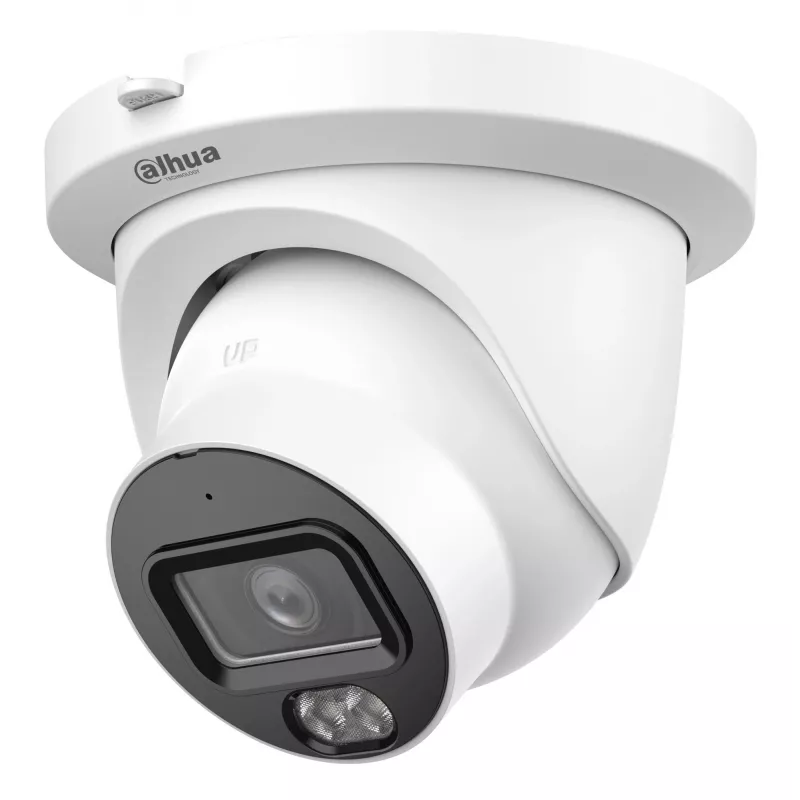

DAHUA 5MP eyeball-netwerkcamera IPC-HDW5559TM-ASE-IL-0360B

The DAHUA IPC-HDW5559TM-ASE-IL-0360B is a high-performance 5MP eyeball network camera designed for professional surveillance. Featuring a 1/2.7" progressive CMOS sensor, it delivers crisp 2592x1944 resolution at 20fps. With a 3.6mm fixed lens providing an 84° horizontal field of view, 120dB True WDR, and Smart IR up to 50m, this camera excels in challenging lighting conditions. Built-in AI capabilities include Perimeter Protection, SMD Plus, Face Detection, and AI Coding for intelligent monitoring.

Advantages

Exceptional image quality with 5MP resolution and 120dB WDR ensures clear footage in high-contrast scenes. The integrated AI features reduce false alarms and enhance security efficiency. IP67 weatherproof rating guarantees reliable outdoor operation.

Suitable for

• Perimeter security for commercial and residential properties
• Retail stores, warehouses, and parking lots
• Outdoor surveillance requiring high detail and night vision

Key specifications

• Image Sensor: 1/2.7" 5MP progressive CMOS
• Max Resolution: 2592x1944 at 20fps
• Lens: 3.6mm fixed, F1.6
• Angle of View: H:84°, V:58°, D:110°
• IR Distance: Up to 50m
• Video Compression: H.265, H.264, H.264H, H.264B, MJPEG
• WDR: 120dB True WDR
• Day/Night: Auto(ICR)/Color/B/W
• Audio: Built-in microphone
• Storage: Micro SD up to 256GB
• Network: RJ-45 10/100 Base-T
• Power: 12V DC / PoE (802.3af), max 6.7W
• Ingress Protection: IP67
• Minimum Illumination: 0.008 [email protected] (Color), 0 Lux (IR on)
• Form Factor: Eyeball/Turret

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the mounting surface can support the camera's weight and provide a stable connection. For outdoor installations, verify proper sealing of cable connections to maintain IP67 integrity.
