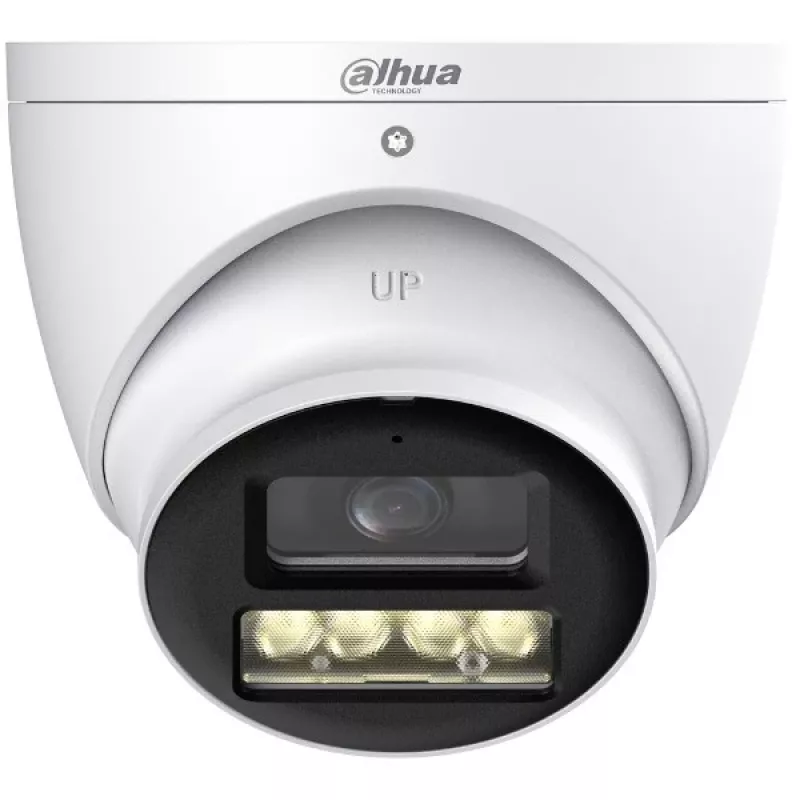

DAHUA HAC-HDW1801T-IL-A-0280B-S3-DIP Smart Dual Light 8MP IR Turret Camera, 2.8mm, IP67

The DAHUA HAC-HDW1801T-IL-A-0280B-S3-DIP is a high-performance 8MP turret camera featuring Smart Dual Light technology, combining IR and white light for superior night vision up to 30 meters. With a 2.8mm fixed lens providing a 105° horizontal field of view, this camera delivers crisp 4K resolution over coax (HDCVI/HDTVI/AHD/CVBS). Its IP67-rated metal and plastic housing ensures durability in harsh environments, making it ideal for outdoor surveillance.

Advantages

Smart Dual Light automatically switches between IR and white light based on scene analysis, reducing false alarms and providing color night vision when needed. The built-in microphone enables audio-over-coax for integrated security. Digital WDR and 2D noise reduction enhance image quality in challenging lighting conditions.

Suitable for

• Outdoor perimeter monitoring
• Commercial and residential security
• Parking lots and entrances
• Warehouses and industrial sites

Key specifications

• 8MP CMOS sensor, max resolution 3840x2160
• 2.8mm fixed lens, 105° horizontal angle
• Smart Dual Light: IR and white light up to 30m
• Video output: BNC (HDCVI/HDTVI/AHD/CVBS)
• Frame rate: 4K@15fps, 5M@20fps, 4M@25/30fps
• Built-in microphone (audio over coax)
• IP67 weatherproof, metal front cover + plastic body
• Power: 12V DC, max 4.9W
• Operating temperature: -40°C to +60°C

Recommendations

For best performance, use with a compatible DAHUA DVR supporting HDCVI or AHD. Ensure proper power supply (12V DC) and weatherproof connections for outdoor installation.
