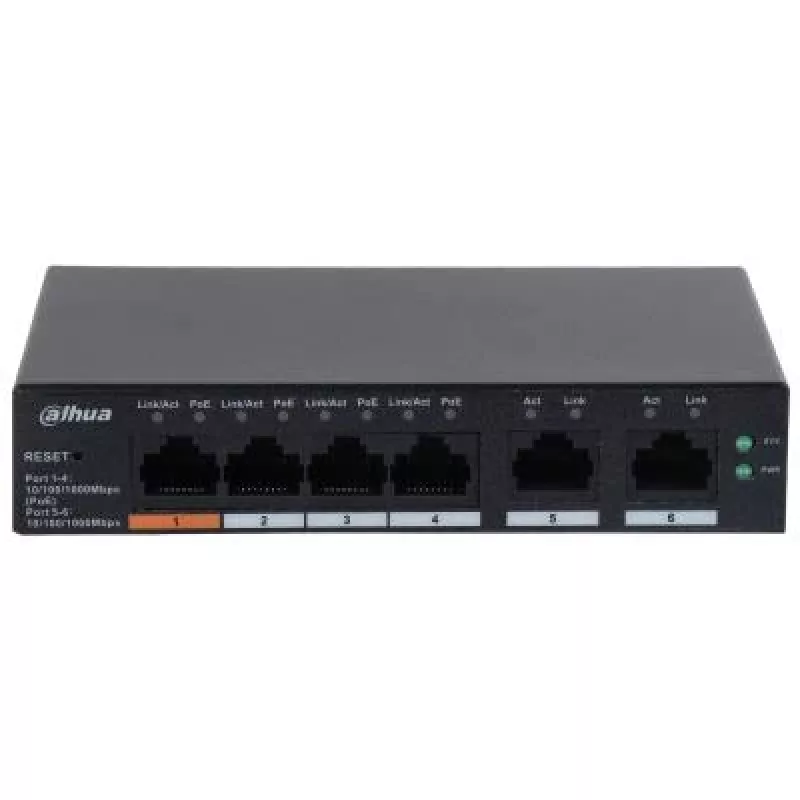

Dahua Technology DH-CS4006-4GT-60 netwerkswitch managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) zwart

The Dahua Technology DH-CS4006-4GT-60 is a managed L2 Gigabit Ethernet switch with six Gigabit RJ-45 ports and PoE capability. It provides a switching capacity of 12 Gbit/s and an 8,000-entry MAC address table. The switch is built with a full-metal enclosure for improved heat dissipation and supports operation in ambient temperatures from -10°C to 55°C. It supports local network management and can be managed remotely via the DoLynk Care cloud platform. The device offers EMC protection and safeguards against overvoltage, overcurrent, static electricity, lightning pulses and similar interference.

Advantages

The DH-CS4006-4GT-60 combines managed L2 features with PoE power delivery to simplify deployment of networked devices. Its full-metal design enhances durability and thermal performance, while extended protection features increase reliability in electrically noisy environments. Select PoE models supply power up to 250 meters for remote devices, with an orange port capable of delivering up to 60 W and a red port up to 90 W. Link aggregation and STP are available on supported models to improve network stability.

Suitable for

• Small and medium-sized businesses
• Supermarkets and retail outlets
• Offices and meeting rooms
• Restaurants, cafés and hotels
• Security and IT system deployments requiring topology visualization

Key specifications

• Model: Dahua DH-CS4006-4GT-60
• Switch type: Managed L2
• Ports: 6 × Gigabit Ethernet (10/100/1000) RJ-45
• PoE: Supported (select ports with up to 60 W and 90 W on specific ports; extended supply up to 250 m on PoE series)
• Switching capacity: 12 Gbit/s
• MAC address table: 8,000 entries
• Networking standards: IEEE 802.3, 802.3ab, 802.3af, 802.3at, 802.3u, 802.3x
• Operating temperature: -10°C to 55°C
• Product colour: Black
• Weight: 0.29 kg

How to use

Install the switch in a ventilated location and connect the Gigabit Ethernet cables to the RJ-45 ports. For PoE-powered devices, use the designated PoE ports (note the orange and red ports provide higher power on supported models) and verify distance/power requirements if powering devices up to 250 m away. Configure L2 management features such as VLANs, link aggregation and STP via the device's local management interface or through the DoLynk Care cloud platform for remote monitoring and topology visualization. Ensure proper grounding to maintain EMC and surge protection effectiveness.

Recommendations

Use the Dahua DH-CS4006-4GT-60 in small to medium installations where managed L2 features and PoE are required. Verify PoE budgets and cable quality when powering devices at greater distances, and enable link aggregation or STP where redundancy and stability are needed.
