Dahua Technology plafondmontagebeugel

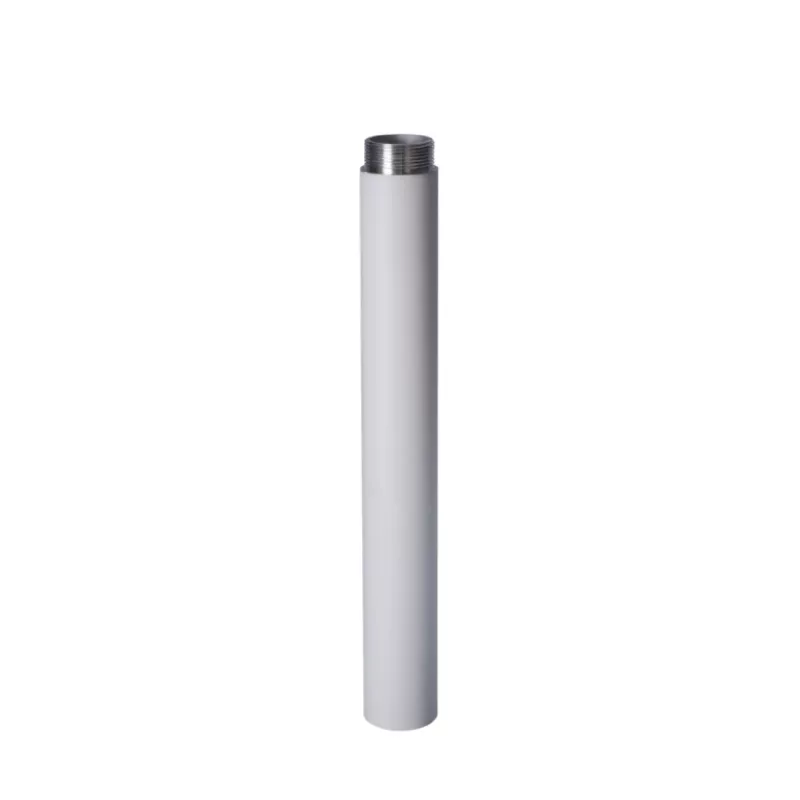

The Mount Dahua Technology Ceiling Mount Bracket is an indoor ceiling bracket for CCTV accessories, designed to securely hold cameras and similar devices. Constructed from aluminum with a white finish, it supports a maximum load of 7 kg and connects via a 1/2" thread. The bracket has a diameter of 5.3 cm, a height of 420 mm and a net weight of 1 kg, providing a neat and integrated appearance for indoor installations.

Advantages

Aluminum construction ensures a lightweight yet durable mounting solution. The integrated, neat design provides a discreet appearance on ceilings. A standard 1/2" connecting thread enables compatibility with many dome and bullet cameras. Supports up to 7 kg, suitable for most indoor surveillance devices within that weight limit.

Suitable for

• Mounting indoor dome and bullet cameras
• Securing CCTV devices in offices, stores and public indoor spaces
• Replacements or upgrades of existing ceiling mounts with 1/2" threads

Key specifications

• Material: Aluminum
• Finish: White
• Maximum load: 7 kg
• Connecting thread: 1/2"
• Diameter: 5.3 cm
• Height: 420 mm
• Weight: 1 kg
• Intended use: Indoor ceiling mount

How to use

Fix the bracket to a suitable ceiling surface using appropriate anchors and screws (not included) rated for the ceiling material and the combined weight of the bracket and camera. Screw the camera onto the bracket using the 1/2" connecting thread until secure. Adjust camera orientation as required and tighten any adjustment screws. Ensure cabling is routed safely and strain-relieved before finalizing the installation.

Recommendations

Verify that the ceiling structure and chosen fixings can safely support the combined weight (camera plus bracket) up to 7 kg. Use corrosion-resistant fasteners in humid environments and follow local mounting and electrical safety regulations.
