Dahua Technology XVR5104HS-I3/T digitale videorecorder (DVR) zwart

4-channel DVR compatible with analog and IP cameras, supporting multiple HD formats including AHD 5MP, HDCVI 720P, HDCVI 1080P, HDCVI 4MP, HD-TVI and TurboHD 5MP. Designed to integrate cameras of different standards into a single recording system, it enables simultaneous connection and management of up to four video inputs.

Advantages

The 4-channel DVR supports a wide range of camera formats, allowing integration of legacy analog devices and newer HD cameras within one system. It accepts both analog and IP signals, which simplifies upgrades and future expansion. Its compact 4-channel capacity is suitable for small commercial or home surveillance installations that require multi-format compatibility.

Key specifications

• Channels: 4
• Compatible camera types: Analog, IP
• Supported formats: AHD 5MP, HDCVI 720P, HDCVI 1080P, HDCVI 4MP, HD-TVI, TurboHD 5MP
• Simultaneous inputs: up to 4 video channels

How to use

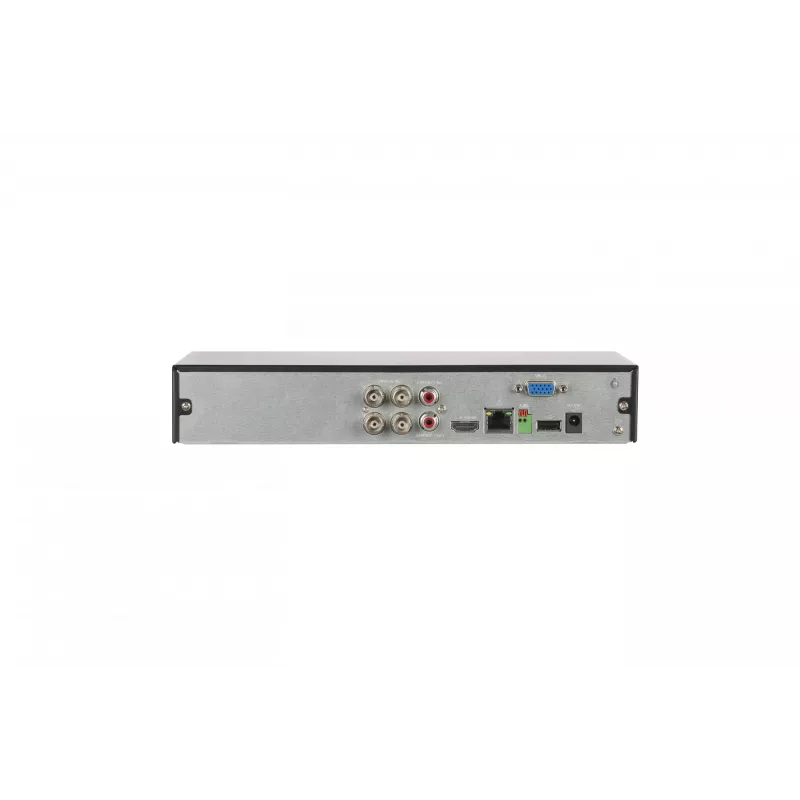

Connect each camera to the DVR using the appropriate interface: BNC connectors for analog/AHD/HDCVI/HD-TVI cameras and the network (RJ45) port for IP cameras. In the DVR menu, set each channel’s input type and resolution to match the connected camera. After configuring channels, choose recording modes and schedules as required and configure network settings to enable remote viewing of IP cameras.

Recommendations

Verify cable quality and connector integrity when combining different camera standards to preserve signal quality. For IP cameras, confirm that the DVR firmware supports the specific camera models and apply firmware updates if needed. Use cameras at the supported resolutions listed above to ensure optimal recording performance.
