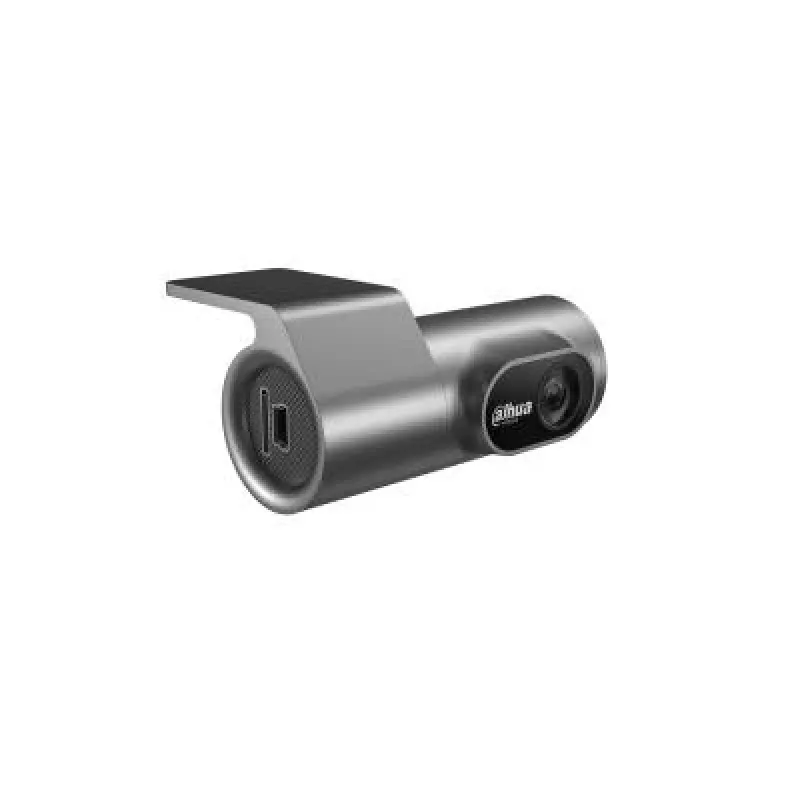

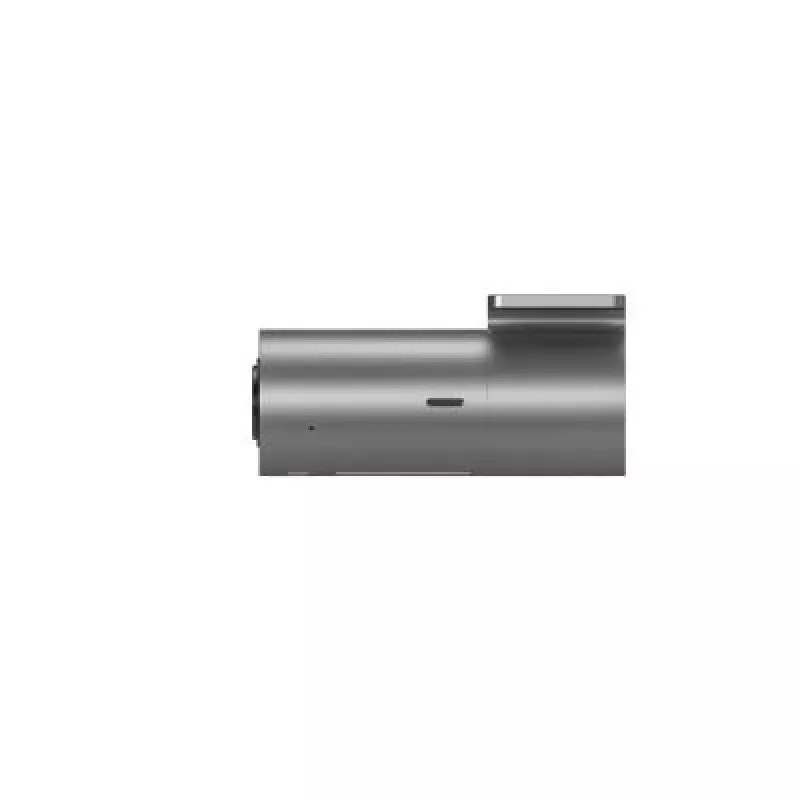

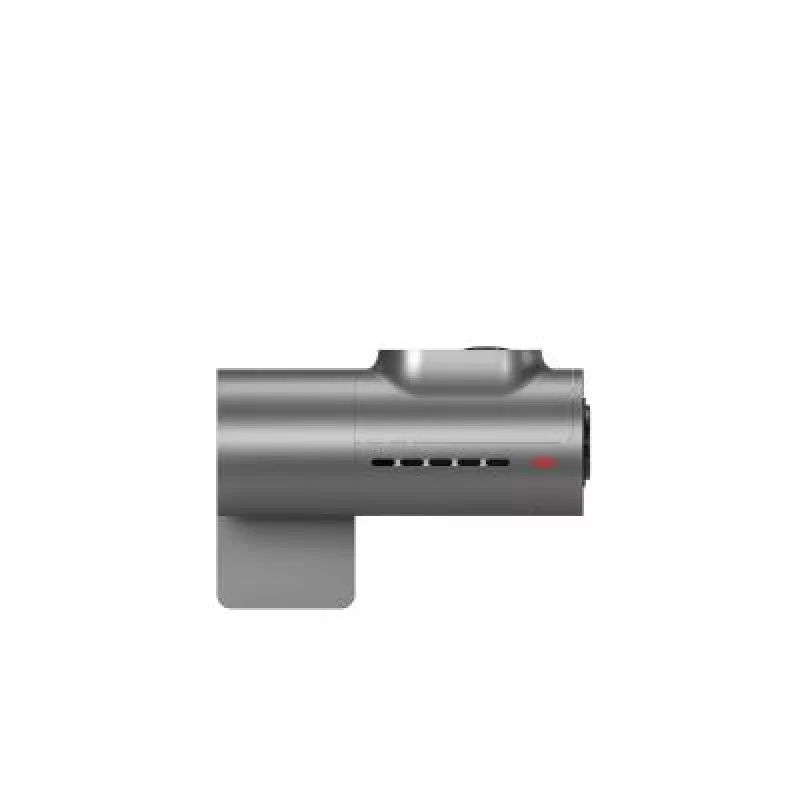

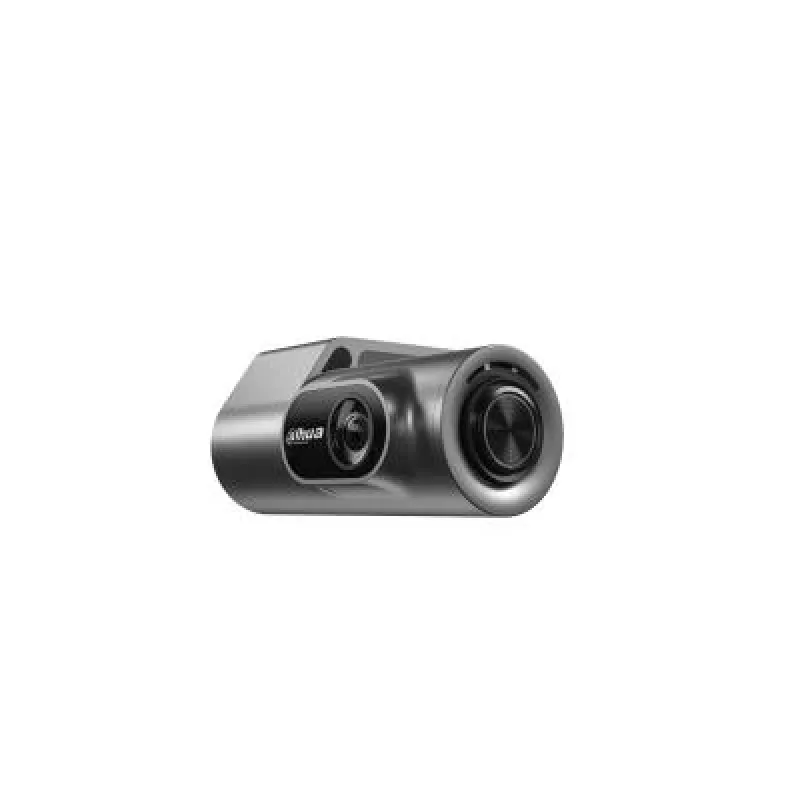

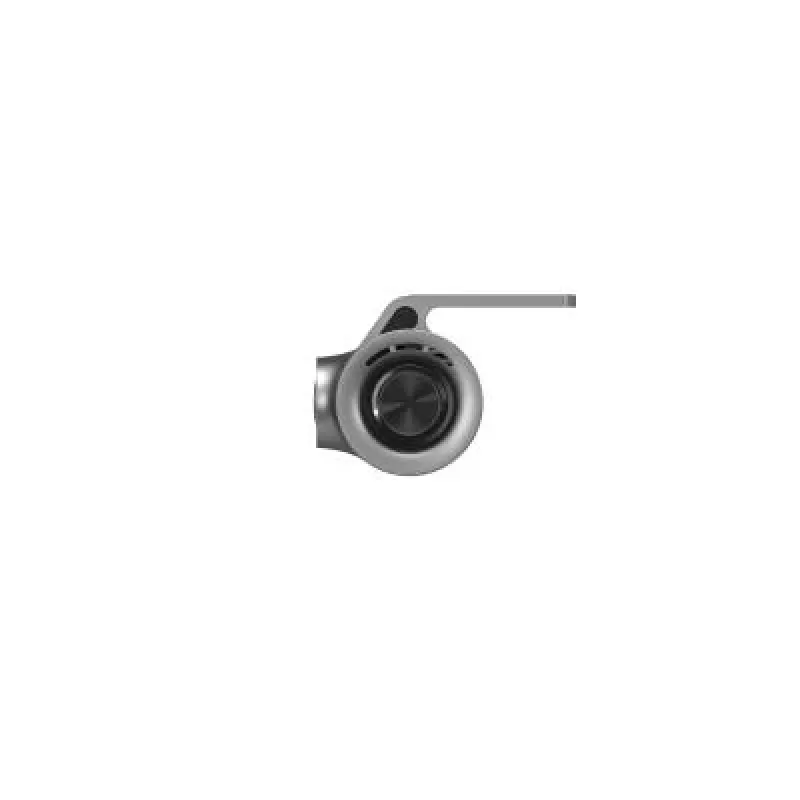

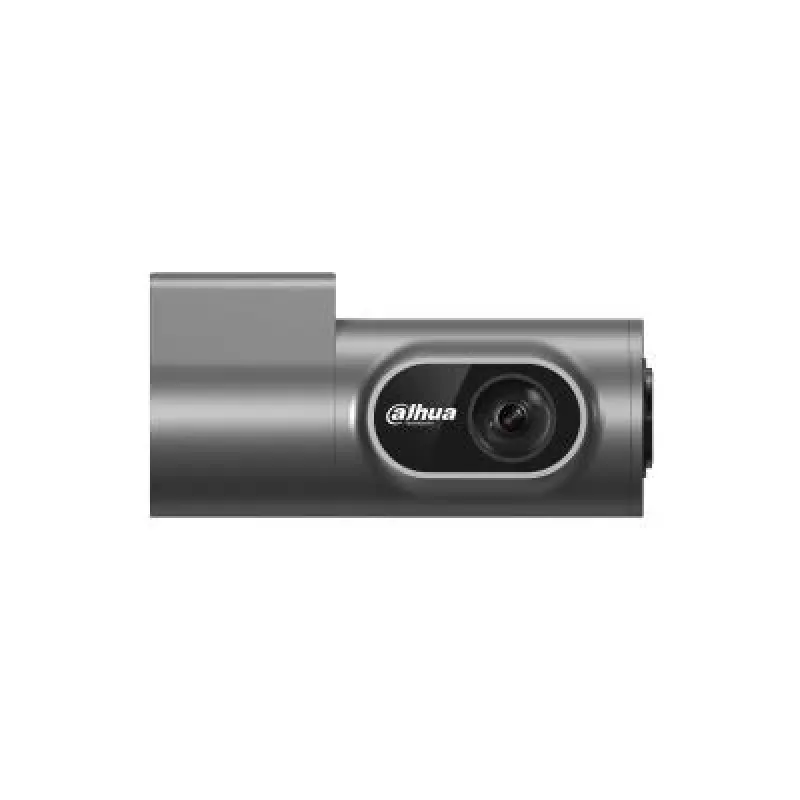

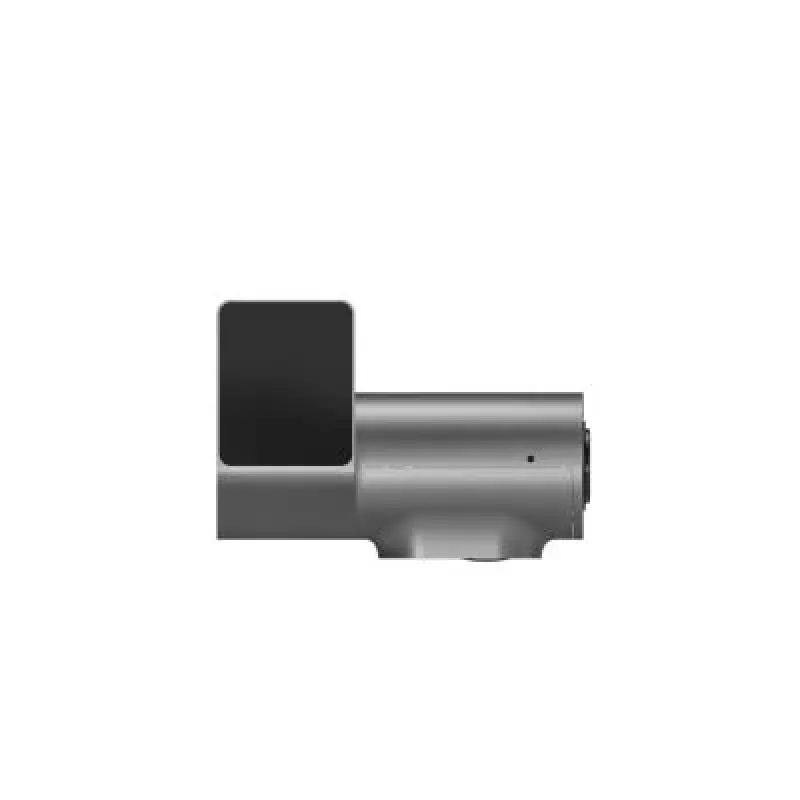

Dashcam DAHUA M1pro Wi‑Fi — 1920×1080 CMOS 1/3 inch, MicroSD tot 128 GB, DC 5V, Mini‑USB, ingebouwd display, zwart

DAHUA M1pro Wi‑Fi is a single‑lens dash camera that records Full HD 1920×1080 video using a 1/3" CMOS sensor. The compact black unit includes a built‑in display for live monitoring and playback, integrated Wi‑Fi for connection with the DH Dashcam mobile app, and support for MicroSD cards up to 128 GB. The camera records video and JPEG stills, uses a built‑in microphone and speaker for audio capture and local playback, and is powered via DC 5 V through a Mini‑USB connector.

Advantages

The device provides clear 1080p recording at 30 fps with a wide field of view to capture road details and surrounding traffic. An F2.0 aperture improves low‑light sensitivity for better night performance. Built‑in Wi‑Fi enables convenient on‑device monitoring, file transfer and configuration via a mobile client. The integrated G‑Sensor automatically locks footage on impact to prevent accidental overwriting, while support for up to 128 GB MicroSD cards allows extended recording time.

Suitable for

• Everyday in‑vehicle recording for private cars
• Documenting incidents, collisions and insurance evidence
• Taxi, rideshare and delivery vehicle monitoring
• Short‑trip video capture and driver behaviour review

Key specifications

• Image sensor: 1/3" CMOS
• Resolution: 1920 × 1080 (Full HD) at 30 fps
• Lens aperture: F2.0 for improved night sensitivity
• Field of view: approximately 101° horizontal, 53° vertical
• Display: built‑in color display for live view and playback
• Storage: MicroSD card support up to 128 GB (TransFlash)
• Audio: built‑in microphone and speaker for recording and playback
• Connectivity: built‑in Wi‑Fi for app connection and file transfer
• Power: DC 5 V via Mini‑USB, typical power consumption ~1.5 W
• Weight: approximately 0.042 kg
• Colour: black

How to use

Install the dash camera on the vehicle windshield in a position that gives a clear forward view, then connect power using the Mini‑USB cable and a suitable 5 V DC adapter. Insert a formatted MicroSD card (up to 128 GB) before first use. Use the built‑in display to set basic parameters and check framing. For additional configuration, live view and file backup, connect a smartphone to the camera’s Wi‑Fi network and open the DH Dashcam app. The G‑Sensor will monitor for sudden impacts and can automatically lock recorded clips when an event is detected.

Recommendations

Place the camera centrally behind the rear‑view mirror to minimise obstruction and ensure optimal field of view. Regularly check and format the MicroSD card in the camera or back up footage to avoid storage fragmentation. Keep firmware and the mobile app updated for best compatibility and feature support.
