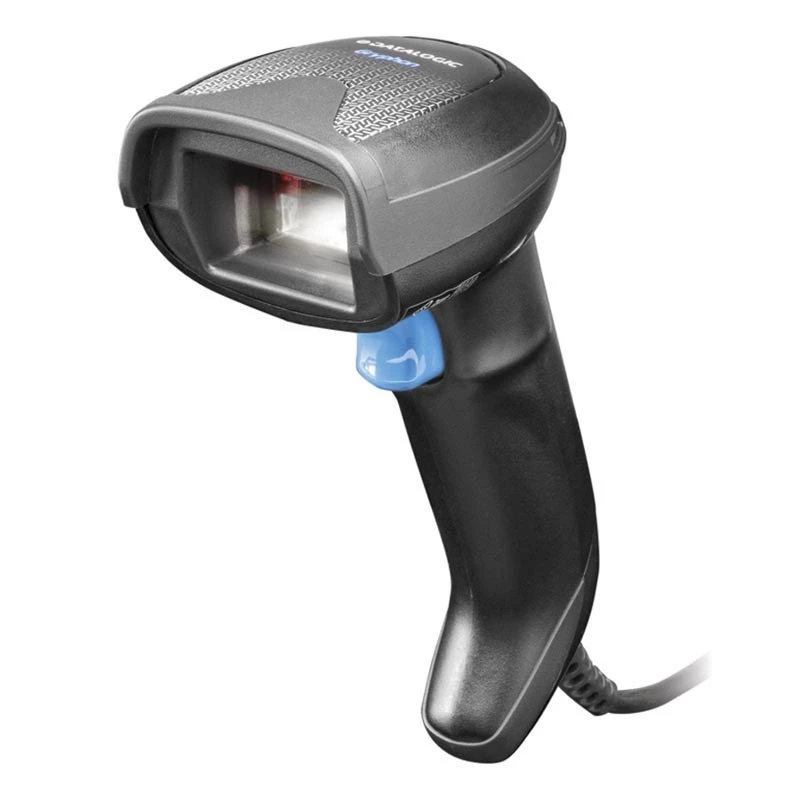

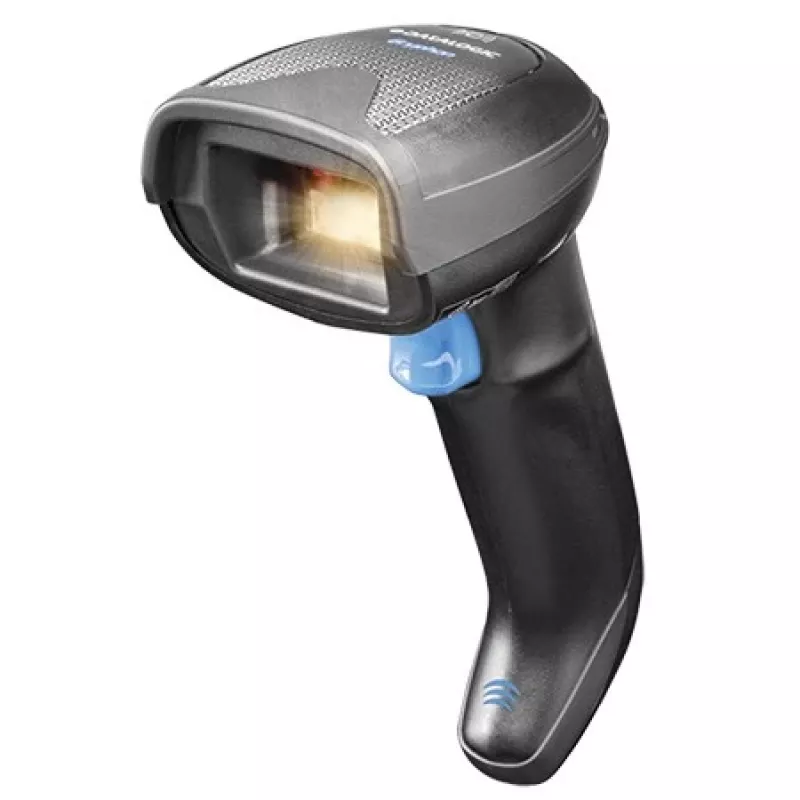

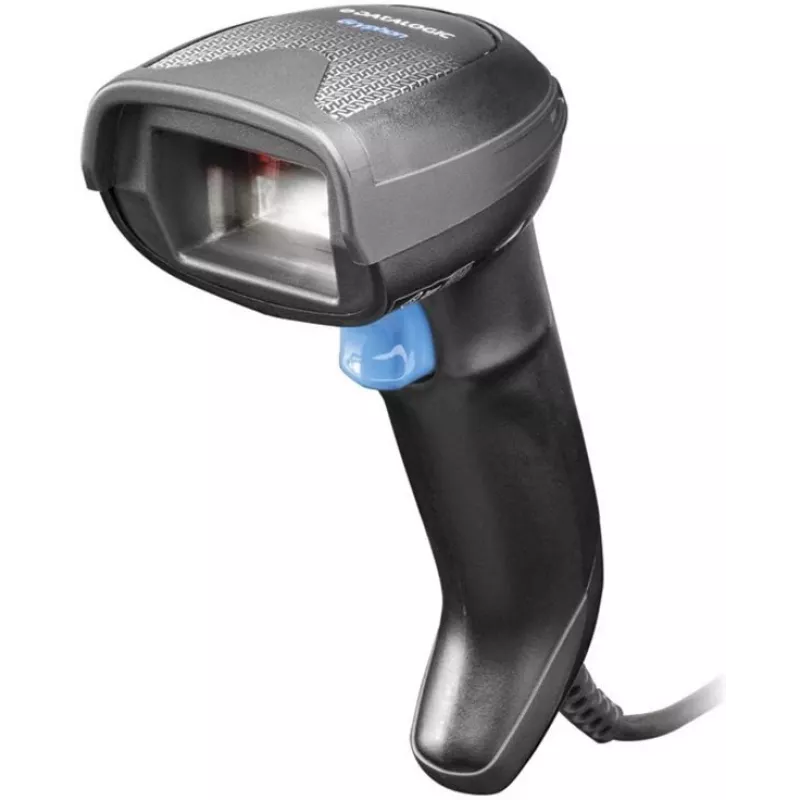

Datalogic Gryphon GD4520 1D/2D bedrade hand-barcodescanner

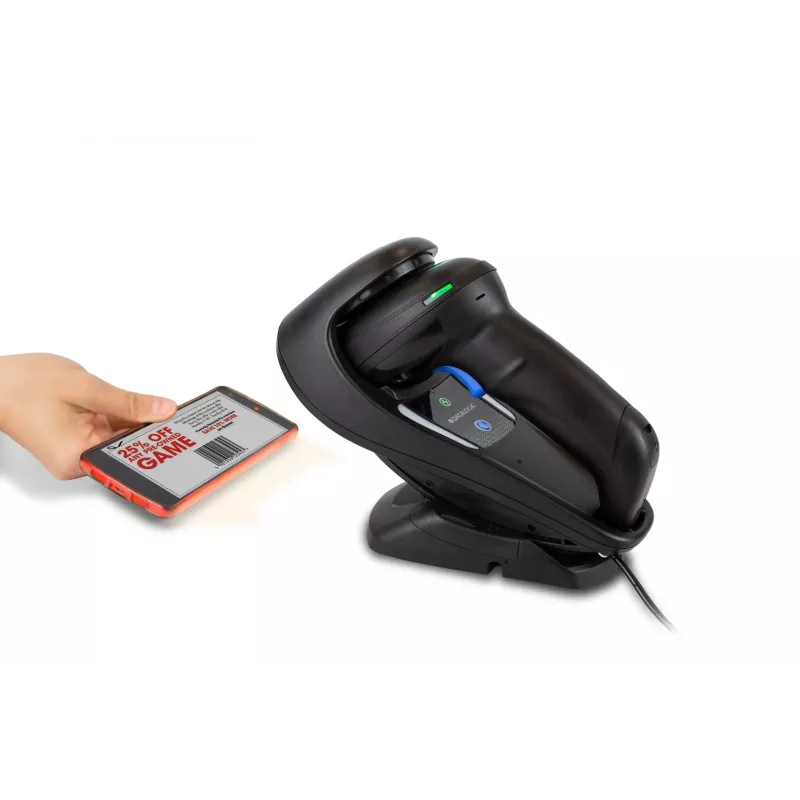

With a 1-megapixel sensor and omnidirectional reading, the Datalogic Gryphon GD4520 captures 1D, 2D, and postal barcodes instantly—even from smartphone screens or damaged labels. Its 30 IPS motion tolerance keeps up with fast-paced workflows, while the Green Spot good-read feedback ensures confident scanning every time.

Overview

The Gryphon GD4520 is a wired handheld area imager engineered for retail, light industrial, and office environments. It connects via USB and supports multiple interface modes (Keyboard Wedge, USB COM, USB HID) for seamless integration with existing systems. The scanner's compact, ergonomic design reduces operator fatigue during extended use, and its IP52 rating protects against dust and light moisture.

What stands out

• Omnidirectional reading eliminates the need to align barcodes precisely.
• Motionix™ motion-sensing technology automatically wakes the scanner when picked up.
• Datalogic 'Green Spot' provides visual confirmation directly on the code.
• Withstands drops from 1.8 m onto concrete, ensuring durability in busy settings.
• Decodes a wide range of symbologies including Digimarc and China Han Xin Code.

Technical details

• Sensor: 1 Megapixel (1280 x 800 pixels), white LED illumination, red LED aimer.
• Motion tolerance: 30 IPS (76 cm/s); minimum print contrast ratio: 25%.
• Connectivity: Wired USB, cable length 2 m; host interfaces: Keyboard Wedge, USB COM, USB HID.
• Supported codes: All standard 1D, 2D (Aztec, Data Matrix, QR, Micro QR, MaxiCode, DotCode, China Han Xin), Postal (Australian, British, China, IMB, Japanese, KIX, Planet, Postnet, RM4SCC), and Digimarc.
• Indicators: Beeper, Good Read LED, Datalogic 'Green Spot'.
• Environmental: Operating temperature 0°C to 50°C; IP52 rating; drop resistance 1.8 m.
• Colour: Black.

Our verdict

The Gryphon GD4520 delivers reliable, high-speed scanning in a rugged, user-friendly package. Its advanced features and broad symbology support make it a smart investment for businesses seeking efficiency and durability.
