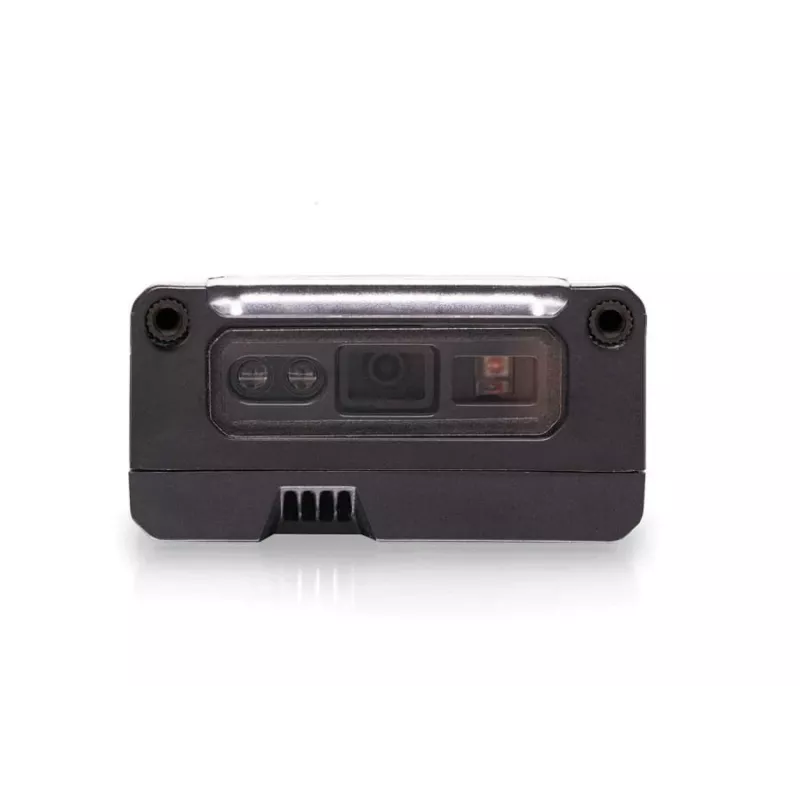

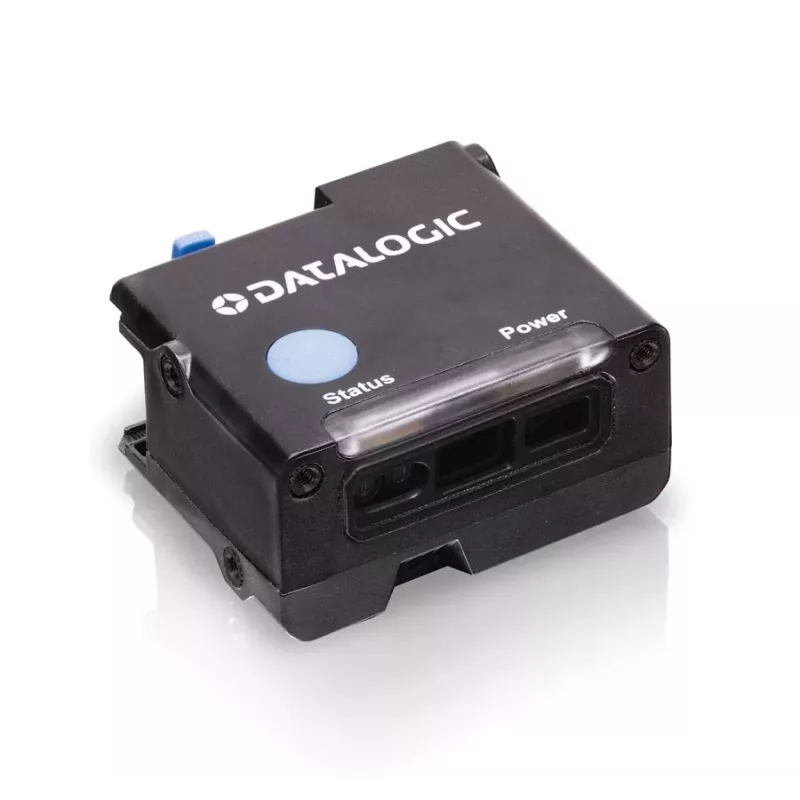

Datalogic Gryphon GFS4520 Kit 2D Area Imager Barcodescanner wit USB

The Datalogic Gryphon GFS4520 is a high-performance fixed-mount barcode scanner designed for desktop and industrial applications. Featuring a 2D area imager with white illumination, it delivers fast and accurate decoding of 1D, 2D, postal, and Digimarc codes at 60 frames per second. The scanner is USB-powered and comes with a mounting bracket for flexible installation. Its compact white design and IP52 rating make it suitable for various environments.

Advantages

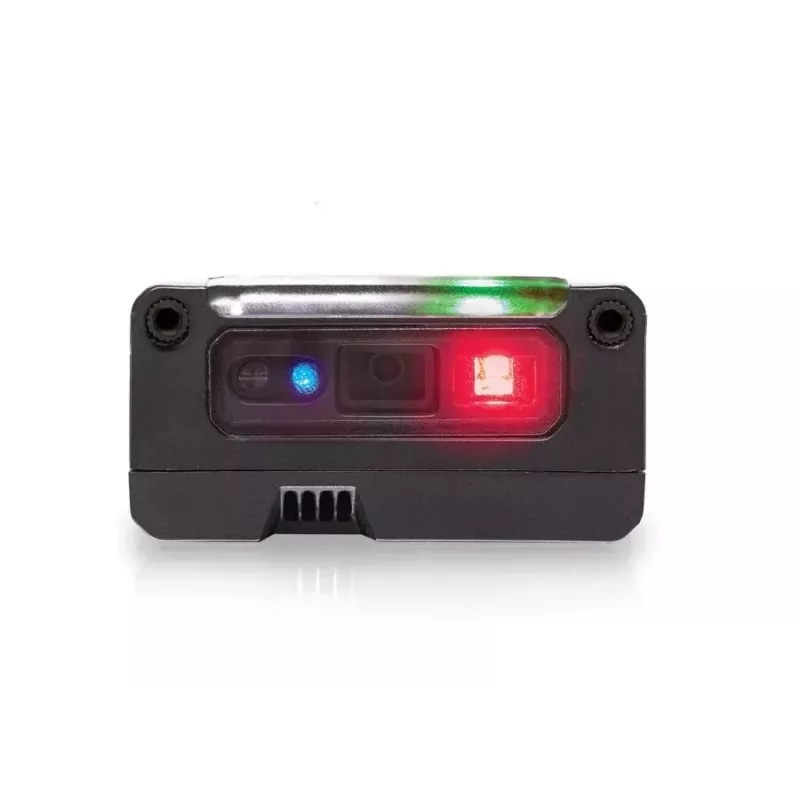

With Datalogic's Green Spot technology for good-read feedback, the GFS4520 ensures reliable scanning in demanding conditions. The 2D imager captures codes from screens and paper, while the white LED illumination reduces eye strain. The kit includes everything needed for quick setup, and the 2-meter cable provides ample reach.

Suitable for

• Retail point-of-sale scanning
• Warehouse and logistics barcode reading
• Healthcare and laboratory asset tracking
• Manufacturing and production line identification

Key specifications

• Scanner Type: Fixed Mount / Desktop Barcode Scanner
• Scan Technology: 2D Area Imager
• Connectivity: Wired USB
• Scan Rate: 60 frames/second
• Decoding Capability: 1D, 2D, Postal Codes, Digimarc
• Light Source: White LED
• Minimum Print Contrast: 25%
• Image Sensor Resolution: 752 x 480 pixels (Wide VGA)
• Field of View: 48° horizontal, 37° vertical
• Good Read Feedback: Green Spot, Beeper
• Color: White
• Power Source: USB Bus-powered
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Drop Resistance: 1.2 m (4 ft) to concrete
• IP Rating: IP52
• Cable Length: 2 m (6.5 ft)
• Kit Contents: Scanner, USB Cable, Mounting Bracket

Recommendations

For optimal performance, mount the scanner at the recommended distance and angle. Ensure the USB port provides sufficient power. Compatible with most POS systems and software.
