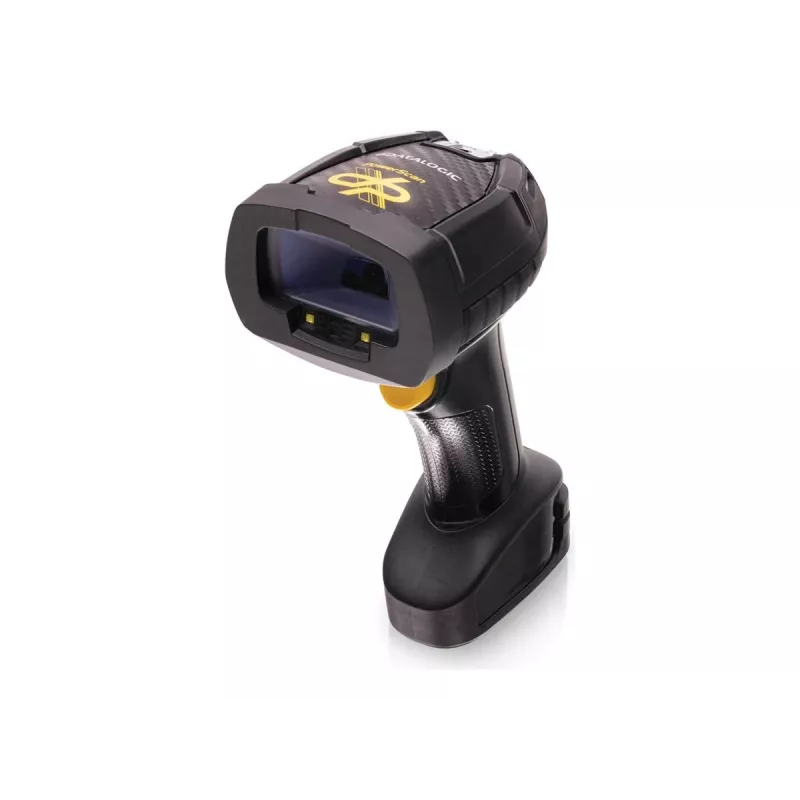

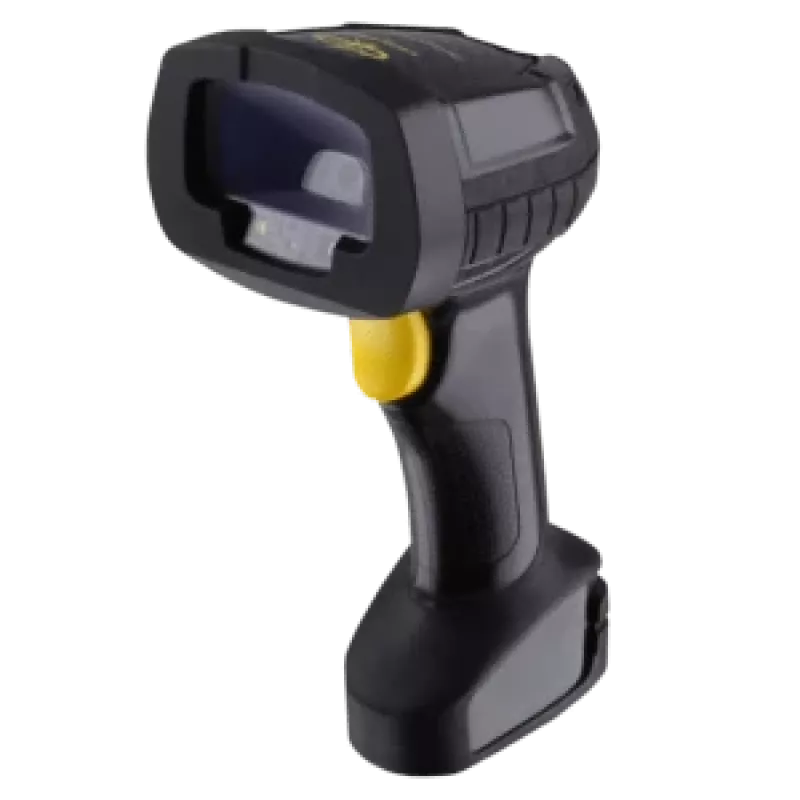

Datalogic PowerScan PBT9600-DPX Direct Part Marking Bluetooth wisselaccu RS-232 Kit - barcode-scanner - scanner

The Datalogic PowerScan PBT9600-DPX stands apart from conventional industrial scanners by pairing direct part marking (DPM) expertise with a rugged, cable-free design. Built for automotive, manufacturing, and logistics environments, it reads low-contrast, dot-peen, and laser-etched codes that defeat ordinary imagers. The removable 3350 mAh lithium-ion battery keeps shifts running, while the RS-232 cradle ensures reliable host communication.

Highlights

• High-performance 2D area imager with DPM decoding for 1D, 2D, postal, and stacked symbologies
• Bluetooth 4.0 Class 1 wireless connectivity with up to 100 m (328 ft) range
• Removable lithium-ion battery (3350 mAh) for continuous operation and quick swaps
• IP65 sealing and 2.5 m drop resistance for harsh industrial conditions
• RS-232 cradle kit includes base station, power supply, and cable

In daily use

Operators get instant feedback from the beeper, good-read LED, and vibration—especially useful in noisy plants. The omnidirectional scan angle and white LED illumination make aiming effortless, even on curved or reflective surfaces. The industrial black and yellow housing is easy to spot and built to survive daily abuse.

Full specifications

• Scan technology: 2D area imager (high-performance DPM)
• Decoding capability: 1D, 2D, postal, stacked, direct part marking (DPM)
• Connectivity: Bluetooth 4.0 (Class 1) wireless, RS-232 host interface via cradle
• Wireless range: up to 100 m (328 ft)
• Battery: removable lithium-ion, 3350 mAh, rechargeable
• Environmental sealing: IP65
• Drop specification: 2.5 m (8.2 ft) to concrete
• Operating temperature: -20°C to 50°C (-4°F to 122°F)
• Illumination: white LED; aiming: red LED
• Feedback: beeper, good-read LED, vibration
• Included: scanner, base station/cradle, power supply, RS-232 cable
• Colour: black and yellow

Final note

For DPM reading on the factory floor, the PBT9600-DPX delivers the durability and decoding power that keep production lines moving without interruption.
