DC-stroomverlengmodule DELOCK Easy 45 — bus DC 5,5×2,5 mm naar stekker DC 5,5×2,5 mm — model 90865

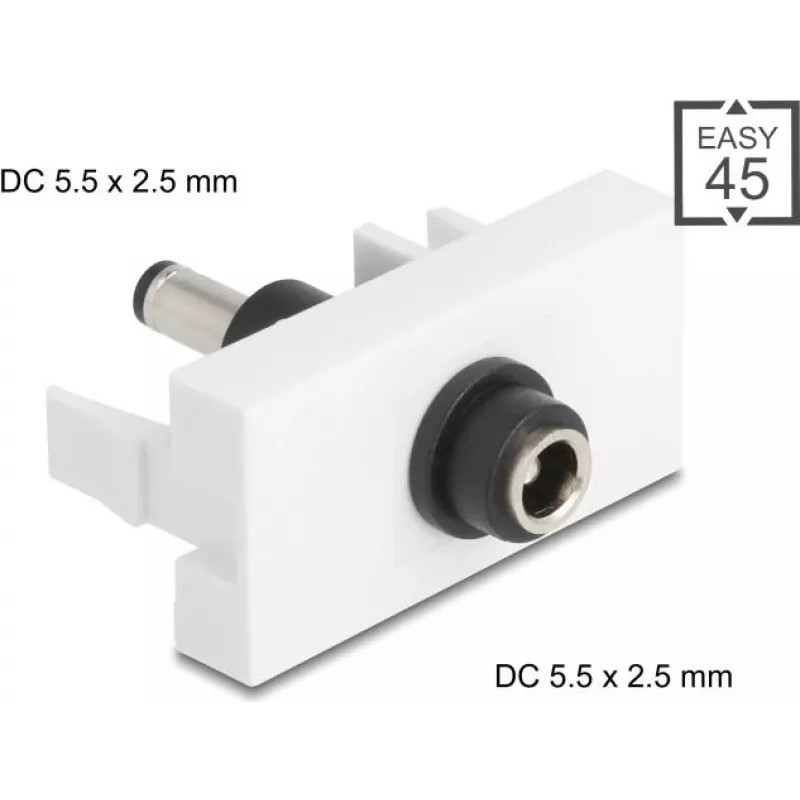

DELOCK Easy 45 module model 90865 is a compact DC power extension module that provides a pass-through connection from a DC 5.5×2.5 mm socket to a DC 5.5×2.5 mm plug. The unit is designed to extend or relocate an existing DC power feed without altering the original cabling. Its small footprint allows installation in tight enclosures, behind panels or within kiosks, enabling continued use of devices that employ the common 5.5×2.5 mm barrel standard.

Advantages

The module offers a straightforward, tool-free method to extend a DC connection using standard 5.5×2.5 mm barrel plugs. Its compact design minimizes space requirements and supports tidy cable routing. Because the connection is a direct pass-through, there are no additional electronics that could introduce voltage conversion or signal changes, preserving the original power characteristics of the source. The simple form factor facilitates quick installation and replacement.

Suitable for

Key specifications

How to use

To use the DELOCK Easy 45 DC power extension module, insert the male 5.5×2.5 mm plug from the power supply into the module’s 5.5×2.5 mm socket, and then connect the module’s 5.5×2.5 mm plug to the device’s power inlet. Ensure connections are fully seated to maintain reliable contact. Position the module so it is accessible for future disconnection if needed and avoid sharp bends or stress on the barrel connectors. No additional wiring or configuration is required.

Recommendations

Use the module only with power supplies and devices that match the required voltage and current ratings for the equipment; the module is a passive extension and does not provide voltage conversion or protection. Inspect connectors for wear before use and avoid exposure to moisture or mechanical strain to maintain a reliable DC connection.
