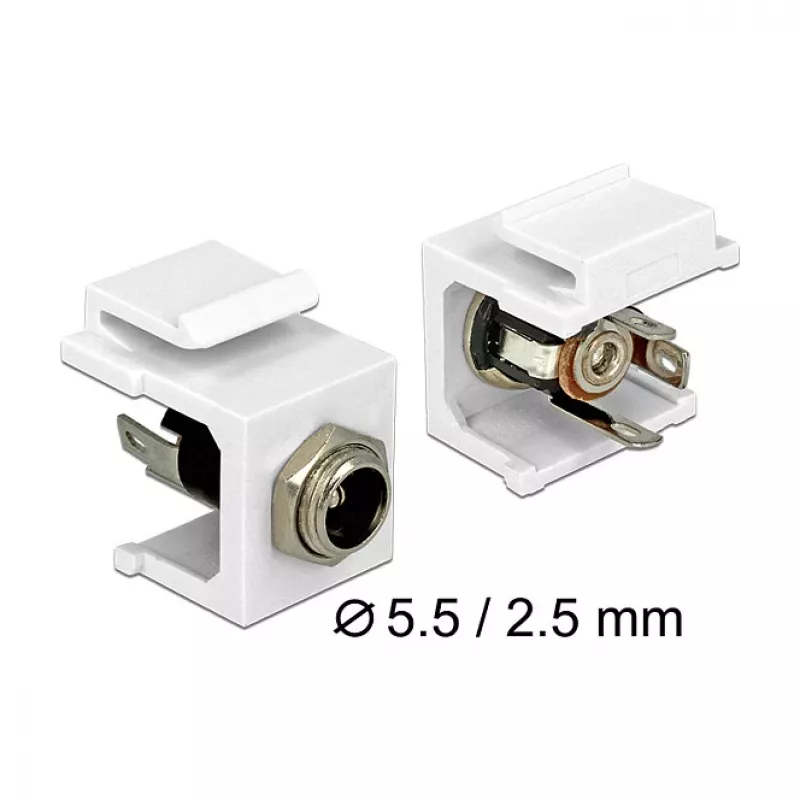

Keystone-module DeLOCK 86373

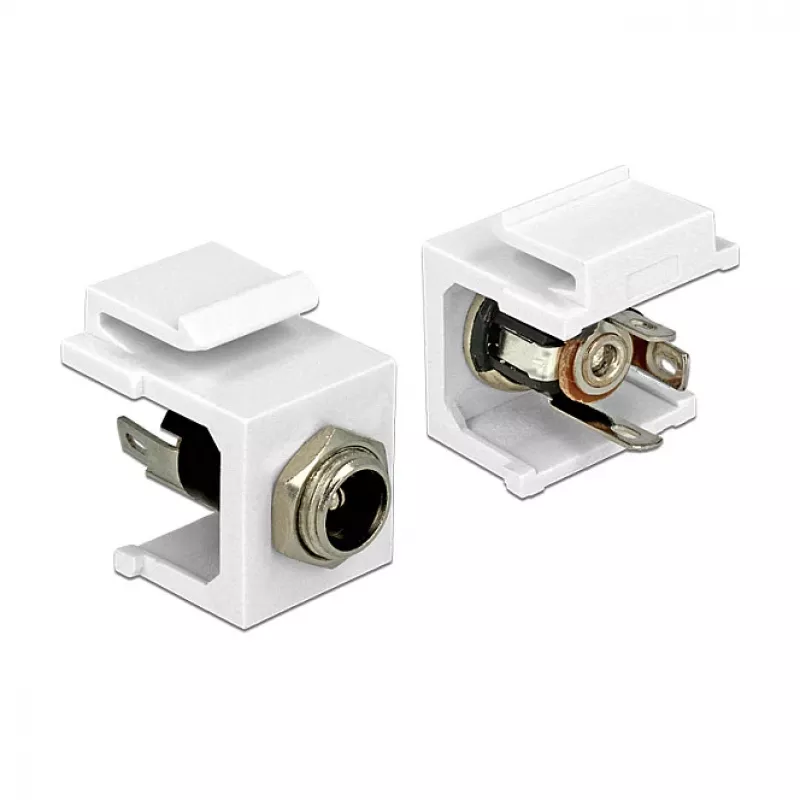

The DeLOCK 86373 Keystone Module is a DC installation socket designed for mounting into housings, keystone patch panels, face plates or surface-mount boxes to provide a reliable DC power connection. It features a 5.5 x 2.5 mm DC connector and a compact metallic and white body with standardised keystone dimensions for snap-in installation.

Advantages

The module offers a standard keystone form factor for simple snap-in mounting, a common DC 5.5 x 2.5 mm connector compatible with many power adapters and devices, and a compact construction (20.7 mm × 22 mm × 16.3 mm) that minimises required installation space while maintaining a stable connection.

Suitable for (tasks / use cases)

• Installing a DC power feed into keystone patch panels
• Adding a DC socket to face plates or surface-mount boxes
• Supplying power to small devices or enclosures via a 5.5 x 2.5 mm cable

Key specifications

• Connector: DC 5.5 x 2.5 mm
• Product colour: Metallic, White
• Dimensions (W × D × H): 20.7 mm × 22 mm × 16.3 mm
• Brand: DELOCK
• MPN: 86373
• EAN: 4043619863730

How to use

Insert the module into a compatible keystone opening until it snaps into place. Connect the DC cable to the 5.5 x 2.5 mm socket and route the cable through the housing or enclosure as required. Ensure the mating plug and wiring match the device polarity and secure any internal wiring according to the enclosure’s layout and local electrical guidelines.

Recommendations

Use with properly rated power supplies and verify polarity before powering devices. Ensure the keystone cutout matches standard dimensions for secure snap-in mounting and avoid excessive mechanical strain on the cable or connector.
